M72-KW (53AI8CT8050) - Cub Cadet 72" Tank Zero-Turn Mower, 37hp Kawasaki (2009 & Before) Wheel Motors (White) Parts Diagram

72" Tank Zero-Turn Mower, 37hp Kawasaki

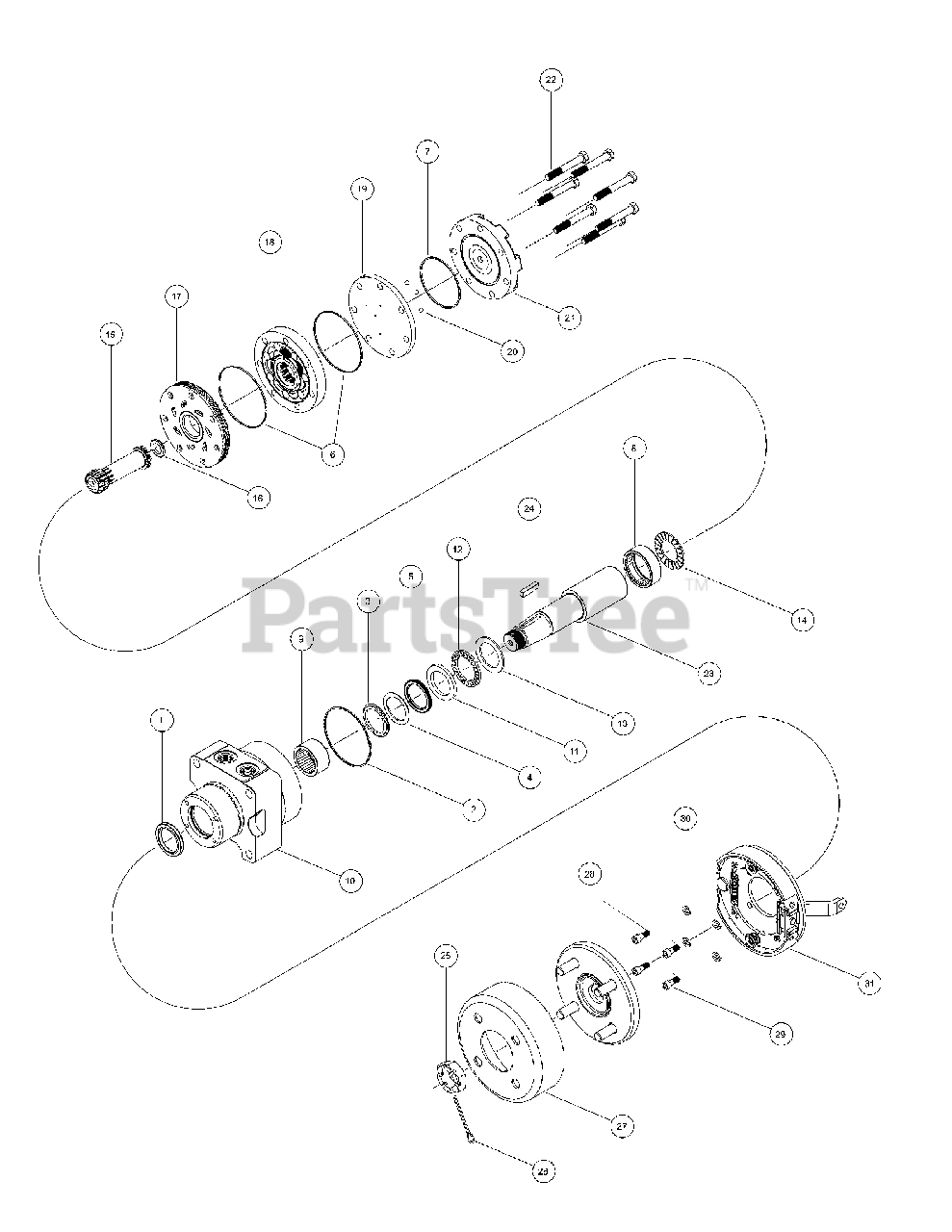

Wheel Motors (White) Parts Diagram

  • Title

1

Cub Cadet n/a

Dust Seal

$

$

Currently unavailable

2

Cub Cadet n/a

Housing Seal

$

$

Currently unavailable

3

Cub Cadet n/a

Back Up Ring

$

$

Currently unavailable

4

Cub Cadet n/a

Back Up Seal

$

$

Currently unavailable

5

Cub Cadet n/a

Shaft Seal

$

$

Currently unavailable

6

Cub Cadet n/a

Body Seals

$

$

Currently unavailable

7

Cub Cadet n/a

Endcover Seal

$

$

Currently unavailable

8

Cub Cadet WH-500444004

Rear Housing Bearing

Note: (Incl.1-7)

$176.99

$

In Stock, only 1 left!

0

9

Cub Cadet WH-530018000

Front Housing Bearing

$46.99

$

Usually ships in 3-6 days

0

10

Cub Cadet WH-530013012

Housing

$

$

Not available

11

Cub Cadet WH-500018283

Front Thrust Washer

$36.99

$

Usually ships in 3-6 days

0

12

Cub Cadet WH-500018282

Front Thrust Bearing

$33.99

$

Usually ships in 3-6 days

0

13

Cub Cadet WH-300018002

Thrust Washer

$15.99

$

Usually ships in 3-6 days

0

14

Cub Cadet WH-500018059

Rear Thrust Bearing

$

$

Not available

15

Cub Cadet WH-500014009

Drive Link

$

$

Not available

16

Cub Cadet WH-500018185

Drive Link Spacer

$

$

Not available

17

Cub Cadet WH-500015006

Manifold

$257.99

$

Usually ships in 3-6 days

0

18

Cub Cadet WH-500147002

Rotor Set

$642.99

$

Usually ships in 3-6 days

0

19

Cub Cadet WH-500012001

Balance Plate

$

$

Not available

20

Cub Cadet WH-500018048

Steel Balls

$

$

Not available

21

Cub Cadet WH-500016001

Endcover

$

$

Not available

22

Cub Cadet WH-500445014

Assembly Bolts

$

$

Not available

23

Cub Cadet WH-500011315

Shaft

$464.99

$

Usually ships in 3-6 days

0

24

Cub Cadet WH-500449106

Shaft Key

$

$

Not available

25

Cub Cadet WH-500449304

Shaft Nut

$

$

Not available

26

Cub Cadet WH-400018015

Cotter Pin

$

$

Not available

27

Cub Cadet WH-530018007

6" Stamped Drum

$193.99

$

Usually ships in 3-6 days

0

28

Cub Cadet WH-530018005

4-Lug Knott Hub

$230.99

$

Usually ships in 3-6 days

0

29

Cub Cadet WH-400180050

Mounting Bolts

$

$

Not available

30

Cub Cadet WH-400180045

Lock Washers

$6.99

$

Usually ships in 3-6 days

0

31

Cub Cadet WH-530018006

Knott Brake

$325.99

$

Usually ships in 3-6 days

0
