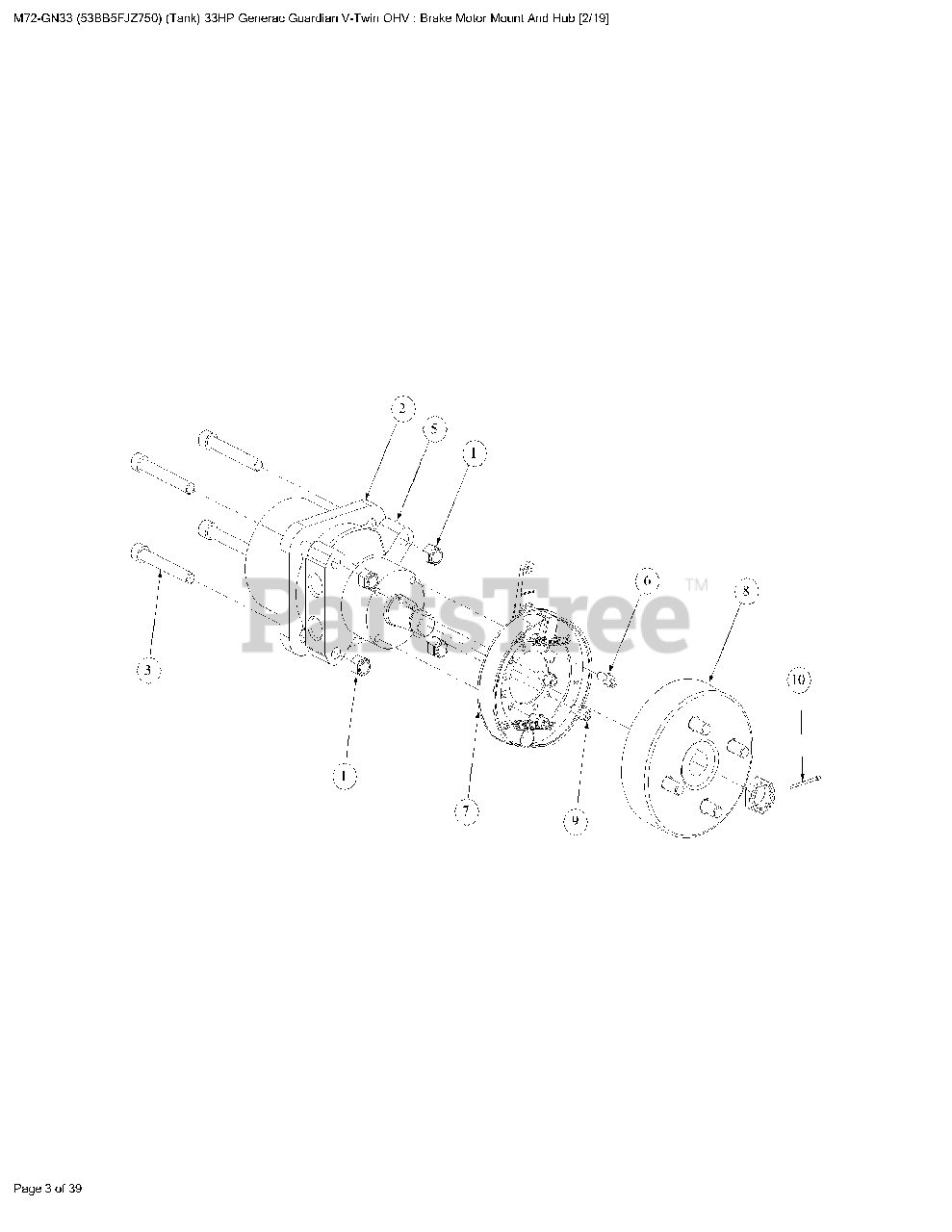

M72-GN33 (53BB5FJZ750) - Cub Cadet 72" Tank Zero-Turn Mower, 33hp Generac Guardian Brake Motor Mount And Hub Parts Diagram

72" Tank Zero-Turn Mower, 33hp Generac Guardian

Brake Motor Mount And Hub Parts Diagram

  • Title
1

Cub Cadet 00012428

Lock Nut, Nylon Insert, 1/2-13

$6.99

$

In Stock, only 2 left!

0

2

Cub Cadet 01009775

Motor Spacer

$58.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 01008449

Socket Head Capscrew, 1/2-13; 6-1/2

$13.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 01008436P

Hyd. Motor, Parker Left Hand Assembly w/Brake & Drum

$1753.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 01008437P

Hyd. Motor, Parker Right Hand Assembly w/ Brake & Drum

$1770.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 00012168

Lock Washer, 5/16

$

$

Not available

7

Cub Cadet 01007048P

Brake Assembly w/Line

$271.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 01007049

Hub and Drum Assembly w/Studs

$324.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 01007464

Capscrew w/Socket, 5/16-18 x 3/4
(Superseded to 710-1314A)

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 01007773

Cotter Pin 1/8 x 1-1/2

$

$

Not available
