M72-GN (53AB5FEZ750) - Cub Cadet 72" Tank Zero-Turn Mower, 28hp Generac (2004) GTV-760 General Assembly Parts Diagram

72" Tank Zero-Turn Mower, 28hp Generac

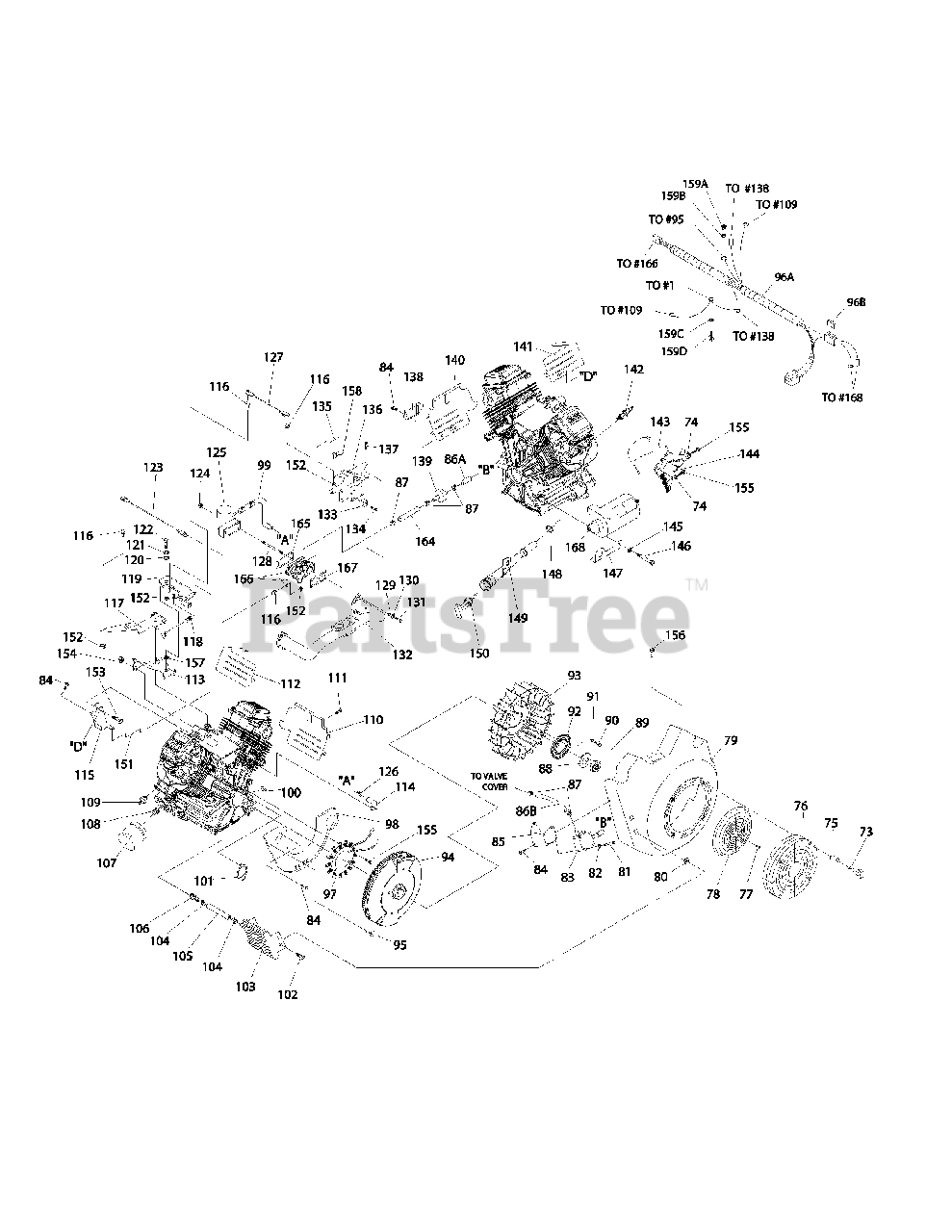

GTV-760 General Assembly Parts Diagram

  • Title

73

Cub Cadet GG-0C5136

KNOB AIR CLEANER

$

$

Not available

74

Cub Cadet GG-022097

WASHER, LOCK M6-1/4"

$

$

Not available

75

Cub Cadet GG-0E3146

SPACER, ROTATING SCREEN GUARD

$

$

Not available

76

Cub Cadet GG-0D7815A

GUARD, ROTATING SCREEN

$

$

Not available

77

Cub Cadet GG-0D7115

SCREW, #10 SHEET METAL

$

$

Not available

78

Cub Cadet GG-0D9684A

SCREEN, ROTATING

$

$

Not available

79

Cub Cadet GG-0E4046E

HOUSING, BLOWER VERTICAL

$

$

Not available

80

Cub Cadet GG-0C9763

NUT, GROMMET 1/4 PLUG

$

$

Not available

81

Cub Cadet GG-0D6142

SCREW PPHM M4-0.7 X 40

$

$

Not available

82

Cub Cadet GG-022264

WASHER, LOCK M4

$

$

Not available

83

Cub Cadet GG-0C4147

PUMP, IMPULSE
(Superseded to GG-0C4147ASRV)

$

$

Not available

84

Cub Cadet GG-045756

SCREW TAPTITE M6-1.0X 10 YELLOW CHROME

$

$

Not available

85

Cub Cadet GG-0D6027

BRACKET, FUEL PUMP

$

$

Not available

86A

Cub Cadet GG-030340G

HOSE ¼" ID X 2" LONG

$

$

Not available

86B

Cub Cadet GG-030340P

HOSE ¼" ID X 7" LONG

$

$

Not available

87

Cub Cadet GG-048031C

CLAMP HOSE BAND 1/4

$

$

Not available

88

Cub Cadet GG-0C3033

WASHER, M24

$

$

Not available

89

Cub Cadet GG-0C3034

NUT,HEX M24

$

$

Not available

90

Cub Cadet GG-048571

SCREW HHC M8-1.25 X 10 G8.8

$

$

Not available

91

Cub Cadet GG-0A5992

WASHER SHAKEPROOF INT M8 SS

$

$

Not available

92

Cub Cadet GG-0C3032

PLATE, FAN

$

$

Not available

93

Cub Cadet GG-0C3031

FAN, NYLON

$

$

Not available

94

Cub Cadet GG-0C91820SRV

FLYWHEEL ASSEMBLY

$

$

Not available

95

Cub Cadet GG-085011

INSULATOR ASSEMBLY IGNITION

$

$

Not available

96A

Cub Cadet GG-0E7238

VS WIRE HARNESS

$

$

Not available

96B

Cub Cadet GG-0E5276

30 AMP FUSE

$

$

Not available

97

Cub Cadet GG-0A1336CESV

ASSEMBLY, STATOR W/ LUGS

$

$

Not available

98

Cub Cadet GG-0C3016A

PLATE, BACKING WITH OIL COOL

$

$

Not available

99

Cub Cadet GG-0E4845

ASSY,BREATHER TUBE
(Superseded to GG-0E48450SRV)

$65.99

$

In Stock, only 1 left!

0

100

Cub Cadet GG-082774

KEY, WOODRUFF 4 X 19D

$

$

Not available

101

Cub Cadet GG-0C3043

GASKET, MANIFOLD / PORT

$

$

Not available

102

Cub Cadet GG-0C9764

PLASTITE,1/4-15 X 3/4

$

$

Not available

103

Cub Cadet GG-0E9506

COOLER, OIL

$

$

Not available

104

Cub Cadet GG-0C7649

CLAMP HOSE .38 - .87

$

$

Not available

105

Cub Cadet GG-0C9806

HOSE, 3/8" I.D. X 6" LONG
(Superseded to GG-0G40210SRV)

$

$

Not available

106

Cub Cadet GG-035461A

BARBED STR 1/4NPT X 3/8 WITH VIBRA SEAL

$

$

Not available

107

Cub Cadet GG-070185D

FILTER, OIL D 69 X 64 LONG
(Superseded to GG-070185DS)

$17.99

$

In Stock, only 3 left!

0

108

Cub Cadet GG-0C7292

NIPPLE, 3/4"-16 UNF

$

$

Not available

109

Cub Cadet GG-0C3025WSRV

SWITCH, OIL PRESS

$

$

Not available

110

Cub Cadet GG-0C3019

WRAPPER, LOWER CYLINDER 1

$

$

Not available

111

Cub Cadet GG-0E6043

SCREW THTT #10-24 X 3/8"

$

$

Not available

112

Cub Cadet GG-0C3018

WRAPPER, UPPER CYLINDER 1

$

$

Not available

113

Cub Cadet GG-0D3868

BRACKET, SUPPORT-GOVERNOR ADJUST
(Superseded to GG-0G5420)

$

$

Not available

114

Cub Cadet GG-0E4804

HOSE, BLOWER HSG TO BREATHER

$

$

Not available

115

Cub Cadet GG-0E05530SRV

ASSY, IDLE SPEED SUPPORT BRACKET

$

$

Not available

116

Cub Cadet GG-0D6342

STUD, BALL M3-0.5

$

$

Not available

117

Cub Cadet GG-0E0552

ASSY, GOVERNOR LEVER

$

$

Not available

118

Cub Cadet GG-0E1150

SPRING, GOVERNOR

$

$

Not available

119

Cub Cadet GG-0G6456

ASSY, IDLE SPEED ADJUST W/ GROMMET

$34.99

$

Usually ships in 3-6 days

0

120

Cub Cadet GG-0D3876

WASHER, FLAT M5

$

$

Not available

121

Cub Cadet GG-049226

WASHER, LOCK M5

$

$

Not available

122

Cub Cadet GG-045770

SCREW, HHC M5-0.8 X 10

$

$

Not available

123

Cub Cadet GG-0D6257

ROD, GOVERNOR

$

$

Not available

124

Cub Cadet GG-052857

NUT LOCK FLANGE M6-1.0

$

$

Not available

125

Cub Cadet GG-0D3959A

ADAPTOR,CARB-AIRBOX,M6 BOSSES

$

$

Not available

126

Cub Cadet GG-048031N

HOSE CLAMP, BAND 12mm I.D.
(Superseded to 726-0205)

$3.99

$

In Stock, Qty 20+

0

127

Cub Cadet GG-0D9999

ASSEMBLY, IDLE SPEED ADJUSTMENT ROD

$

$

Not available

128

Cub Cadet GG-0D6021

STUD, METRIC

$

$

Not available

129

Cub Cadet GG-070008

WASHER, FLAT M8

$

$

Not available

130

Cub Cadet GG-070006

WASHER, LOCK M8

$

$

Not available

131

Cub Cadet GG-049821

SCREW, SHC M8-1.25 X 30

$

$

Not available

132

Cub Cadet GG-0E3052

MANIFOLD,INTAKE 2BBL CARB
(Superseded to GG-0J8892)

$110.99

$

Usually ships in 3-6 days

0

133

Cub Cadet GG-0E4190

CLAMP, 3/16" COATED CABLE

$

$

Not available

134

Cub Cadet GG-091526

SCREW, PPHM M5-0.8 X 12

$

$

Not available

135

Cub Cadet GG-0D8559

ROD, CHOKE

$

$

Not available

136

Cub Cadet GG-0D7237

ASSY, BELDEN BRACKET W/ BELLCRANK
(Superseded to GG-0G5648)

$45.99

$

Usually ships in 3-6 days

0

137

Cub Cadet GG-0E5139

SCREW HHFC M6-1.0 X 8mm

$

$

Not available

138

Cub Cadet GG-0A2702

REGULATOR, 20 AMP

$

$

Not available

139

Cub Cadet GG-0D6313

FILTER, FUEL

$15.99

$

Usually ships in 3-6 days

0

140

Cub Cadet GG-0D1142B

WRAPPER, LOWER CYLINDER 2

Note: NLA

$

$

Not available

141

Cub Cadet GG-0D1143

WRAPPER, UPPER CYLINDER 2

$

$

Not available

142

Cub Cadet 759-3336

SPARK PLUG RC12YC
(Superseded to RC12YC)

$3.49

$

In Stock, Qty 20+

0

143

Cub Cadet GG-0E49970ESV

ASSEMBLY, GROUND WIRE

$

$

Not available

144

Cub Cadet GG-0G3224BSRV

ASSEMBLY, IGNITION COIL
(Superseded to GG-0K63030SRV)

$

$

Not available

145

Cub Cadet GG-022129

WASHER, LOCK M8-5/16

$

$

Not available

146

Cub Cadet GG-061906

SCREW, HHC M8-1.25 X 85 G8.8

$

$

Not available

147

Cub Cadet GG-0D6026

LIFT HOOK, STARTER

$

$

Not available

148

Cub Cadet GG-090072

O-RING, OIL CLR

Note: NLA

$

$

Not available

149

Cub Cadet GG-0D6655

TUBE, DIPSTICK

$

$

Not available

150

Cub Cadet GG-0C8434C

ASSEMBLY, DIPSTICK W/ HANDLE

$

$

Not available

151

Cub Cadet GG-0D9863

ROD, IDLE ADJUSTMENT

$

$

Not available

152

Cub Cadet GG-0D9784

NUT, LOCK HEX M3-0.5

$3.99

$

Usually ships in 3-6 days

0

153

Cub Cadet GG-0E0486

SCREW, SHC M10-1.5 X 75 G10.9

$

$

Not available

154

Cub Cadet GG-0E5343

NUT, LOCK FL-SERRATED M10-1.5

$

$

Not available

155

Cub Cadet GG-092079

SCREW, TAPTITE M6-1.0 X 25

$

$

Not available

156

Cub Cadet GG-0E1552

SCREW, FHHC M6-1.0 X 12 W/M5 HEX

$

$

Not available

157

Cub Cadet GG-0E5113

WASHER NYLON 0.375" I.D.

$

$

Not available

158

Cub Cadet GG-0D1366

BUSHING, GOVERNOR ROD

$

$

Not available

159A

Cub Cadet GG-022471

NUT HEX #8-32

$

$

Not available

159B

Cub Cadet GG-022264

WASHER LOCK #8-M4

$

$

Not available

159C

Cub Cadet GG-043182

WASHER LOCK M3

$

$

Not available

159D

Cub Cadet GG-0C1085

SCREW PPHM M3-0.5 X 8

$

$

Not available

164

Cub Cadet GG-030340N

HOSE ¼" ID X 8.5" LONG

$

$

Not available

165

Cub Cadet GG-0D4024

GASKET, CARB TO SPACER

$

$

Not available

166

Cub Cadet GG-0F93380SRV

CARBURETOR

$

$

Not available

167

Cub Cadet GG-0D5282

GASKET, MANIFOLD TO CARB

$

$

Not available

168

Cub Cadet GG-0E42710SRV

STARTER, V-TWIN ENGINE

$

$

Not available
