M72-GN (53AB5FEZ750) - Cub Cadet 72" Tank Zero-Turn Mower, 28hp Generac (2004) Fuel Tank Assembly Parts Diagram

72" Tank Zero-Turn Mower, 28hp Generac

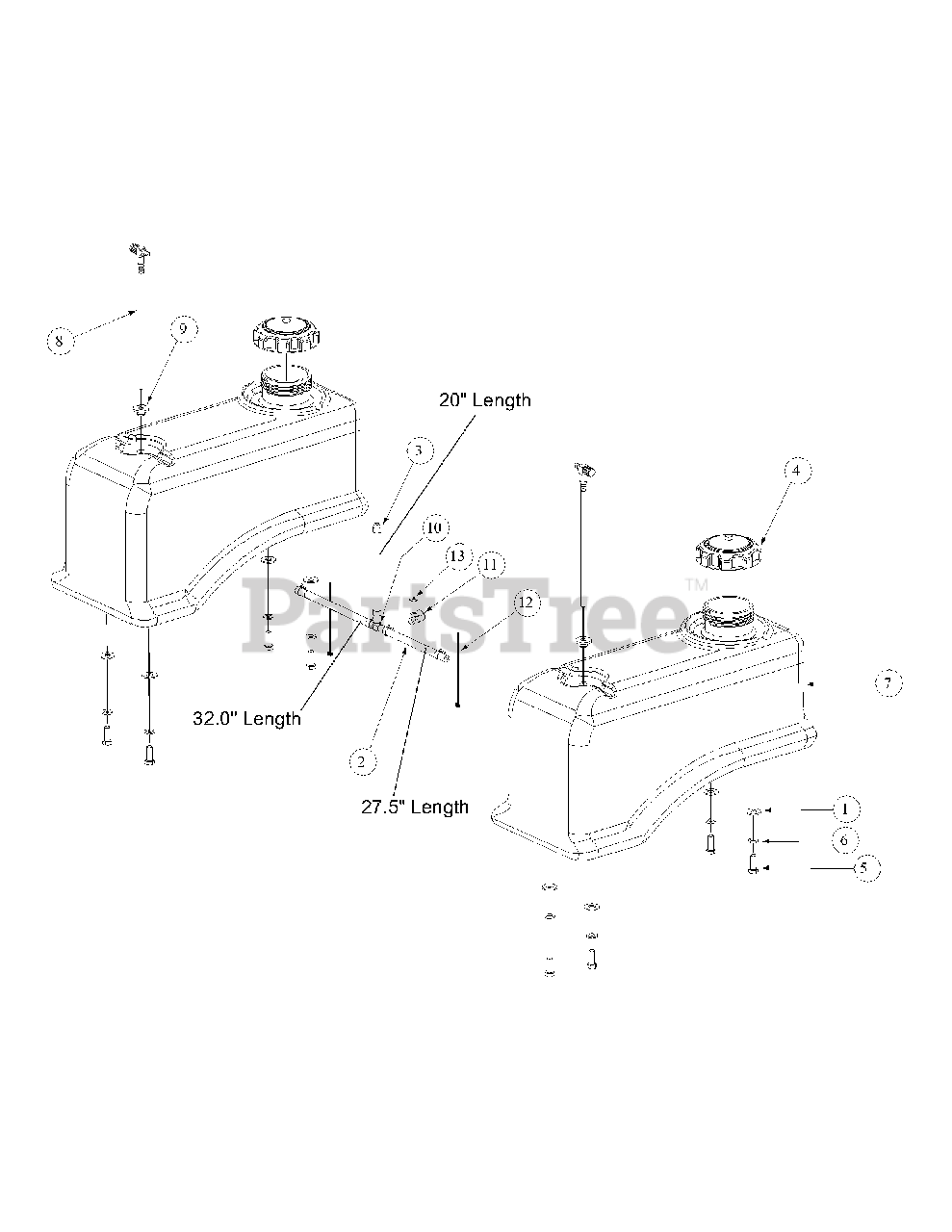

Fuel Tank Assembly Parts Diagram

  • Title

1

Cub Cadet 736-3052

Flat Washer, .406 ID, 1.0 OD, .105

$4.49

$

In Stock, Qty 20+

0

2

Cub Cadet n/a

Hose, 1/4" Fuel Line, 79.5"

Note: (purchase locally)

$

$

Currently unavailable

3

Cub Cadet 00012235

Clamp, Union
(Superseded to 726-04123A)

$3.99

$

In Stock, Qty 6

0

4

Cub Cadet 951-3124E

Fuel Cap, 3.5

$36.99

$

In Stock, only 1 left!

0

5

Cub Cadet 710-3001

Hex, Cap Screw, 3/8-16, .88

$7.49

$

In Stock, Qty 9

0

6

Cub Cadet 936-0169

Lock Washer, 3/8
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

7

Cub Cadet 02003842

Fuel Tank

$187.99

$

In Stock, only 1 left!

0

8

Cub Cadet 01007425

Fuel Fitting
(Superseded to 751-12478)

$52.99

$

In Stock, only 2 left!

0

9

Cub Cadet 02002253

Fuel Tank Grommet

$4.99

$

In Stock, only 2 left!

0

10

Cub Cadet 01003473

Tee Fitting, Fuel

$7.49

$

In Stock, only 1 left!

0

11

Cub Cadet 00031081

Clamp

$6.49

$

Usually ships in 3-6 days

0

12

Cub Cadet 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet 936-0463

Flatwasher 1/4 x .630 x .0515
(Superseded to 736-0463)

$4.49

$

In Stock, Qty 20+

0
