M72-GN (53AB5FEZ750) - Cub Cadet 72" Tank Zero-Turn Mower, 28hp Generac (2004) Fabricated Cutter Deck Parts Diagram

72" Tank Zero-Turn Mower, 28hp Generac

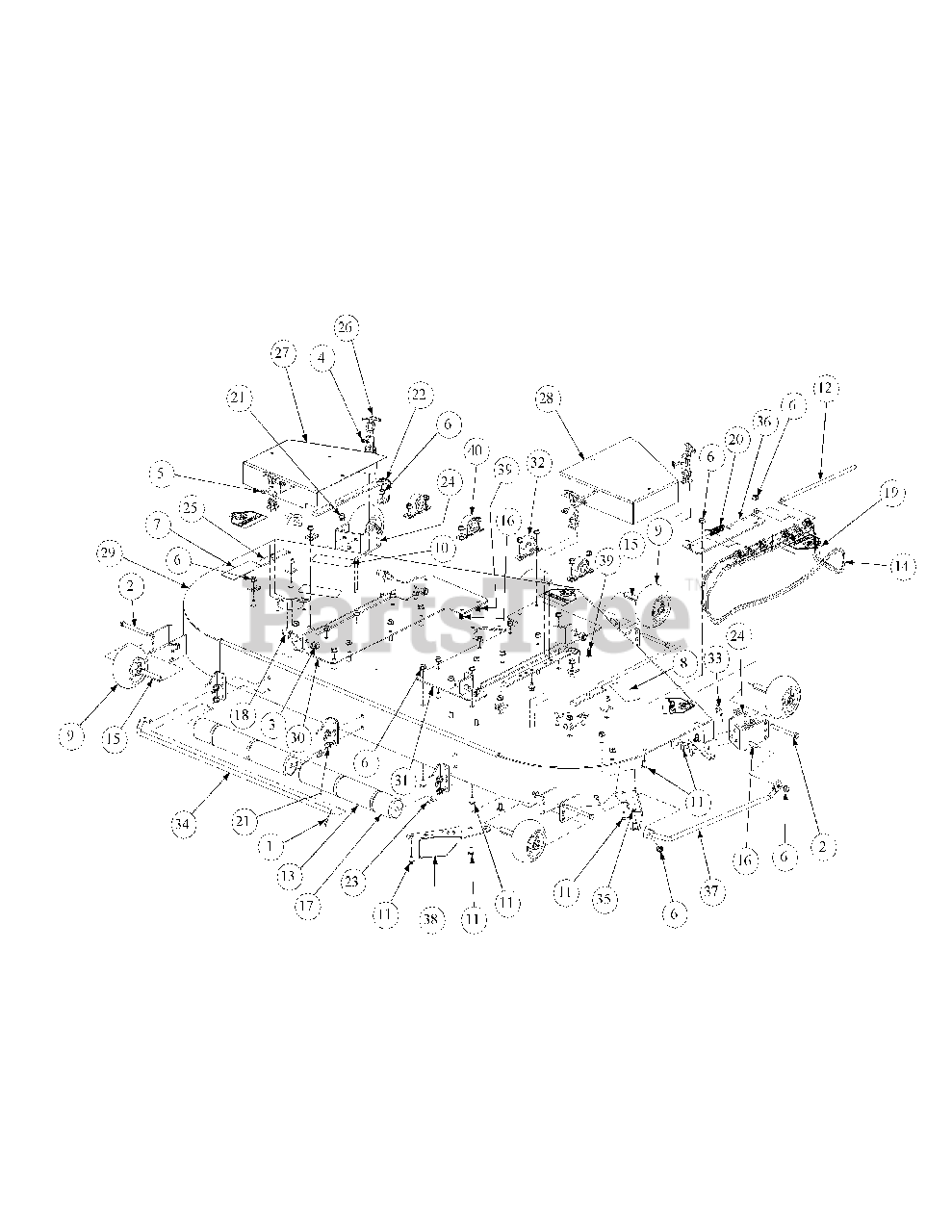

Fabricated Cutter Deck Parts Diagram

  • Title

1

Cub Cadet 00003107

Cotter Pin, .125 Dia. x 1.0
(Superseded to 914-0115)

$3.99

$

In Stock, Qty 20+

0

2

Cub Cadet 00011925

Hex Cap Screw, 3/8-16, 3.75
(Superseded to 710-0411)

$8.49

$

In Stock, Qty 17

0

3

Cub Cadet 00012428

Lock Nut, Nylon Insert, 1/2-13

$6.99

$

In Stock, only 2 left!

0

4

Cub Cadet 00014608

Lock Nut, Nylon Insert, #10-32
(Superseded to 712-05003)

$3.49

$

In Stock, only 3 left!

0

5

Cub Cadet 00017778

Phillips Head Screw, #10-32 x 1/2

$4.99

$

In Stock, only 2 left!

0

6

Cub Cadet 00022560

Flange Lock Hex Nut, 3/8-16
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 00030633

Decal, Rotating Blade

$

$

Not available

8

Cub Cadet 00030635

Decal, Warning Shield Missing
(Superseded to 777S33782)

$7.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 634-3159

Complete Wheel, 5.00 Dia.

$34.99

$

In Stock, Qty 20+

0

10

Cub Cadet 01006086

Command Cut Large

$

$

Not available

11

Cub Cadet 710-3178

Carriage Bolt, 3/8-16 x .75 Lg.

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 01009102

Pin, .375 x 14.06
(Superseded to 711-1762)

$18.99

$

In Stock, Qty 6

0

13

Cub Cadet 731-3005

Front Roller

$28.99

$

In Stock, Qty 20+

0

14

Cub Cadet 01009705P

Chute Deflector

$42.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 750-3193

Wheel Spacer

$18.99

$

In Stock, Qty 20+

0

16

Cub Cadet 01000643

Carriage Bolt, 3/8-16 x 1

$5.49

$

In Stock, Qty 7

0

17

Cub Cadet 01001169

Grass Catcher Roller

$24.99

$

In Stock, only 3 left!

0

18

Cub Cadet 01001745

Pin, 5/8 Dia. x 1.2 Lg.
(Superseded to 711-05604)

$11.99

$

In Stock, Qty 14

0

19

Cub Cadet 01002166

Decal, Danger Hand and Feet

$12.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 732-04797

Torsion Spring, 0.4ID x 2.16Lg

$11.99

$

In Stock, only 4 left!

0

21

Cub Cadet 01004304

Hex Index Washer Screw, 3/8-16, .5
(Superseded to 710-0773)

$7.49

$

In Stock, only 3 left!

0

22

Cub Cadet 01004684-0637

Belt Cover Support

$39.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 01004707-0637

Deck Roller Mount Bracket

$23.99

$

In Stock, Qty 13

0

24

Cub Cadet 01005243-0637

Anti-Scalp Wheel Front Mount Bracket

$57.99

$

In Stock, only 2 left!

0

25

Cub Cadet 01005438-0637

Outer Belt Cover Support Assembly

$

$

Not available

26

Cub Cadet 935-04038

T-Handle Latch Draw

$15.99

$

In Stock, Qty 14

0

27

Cub Cadet 02000447

Left Hand Deck Belt Cover Weldment

$

$

Not available

28

Cub Cadet 02000448

Right Hand Deck Belt Cover Weldment

$

$

Not available

29

Cub Cadet 01008097P

72" Deck Assembly

$

$

Not available

30

Cub Cadet 01008224

Left Hand Deck Weldment Bracket

$215.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 02002911-0637

Right Hand Deck Weldment Bracket

$212.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 02000109

Pillow Block, Steel

$126.99

$

In Stock, only 3 left!

0

33

Cub Cadet 01008230

Decal, 72"

$

$

Not available

34

Cub Cadet 01008233

Roller Pin

$81.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 01009296-0637

Chute Bracket

$49.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 01008514

Chute Bracket

$

$

Not available

37

Cub Cadet 01008526

Finger Guard

$92.99

$

Usually ships in 3-6 days

0

38

Cub Cadet 01009842-0637

Discharge Baffle Weldment

$

$

Not available

39

Cub Cadet 710-3034

Carriage Screw, 3/8-16 x 1.25

$3.99

$

In Stock, Qty 5

0

40

Cub Cadet 02000110

Pillow Block, Bronze

$99.99

$

Usually ships in 3-6 days

0
