M72-CT (53AL8CTZ750) - Cub Cadet 72" Tank Zero-Turn Mower, 28hp Caterpillar Diesel Radiator Assembly Parts Diagram

72" Tank Zero-Turn Mower, 28hp Caterpillar Diesel

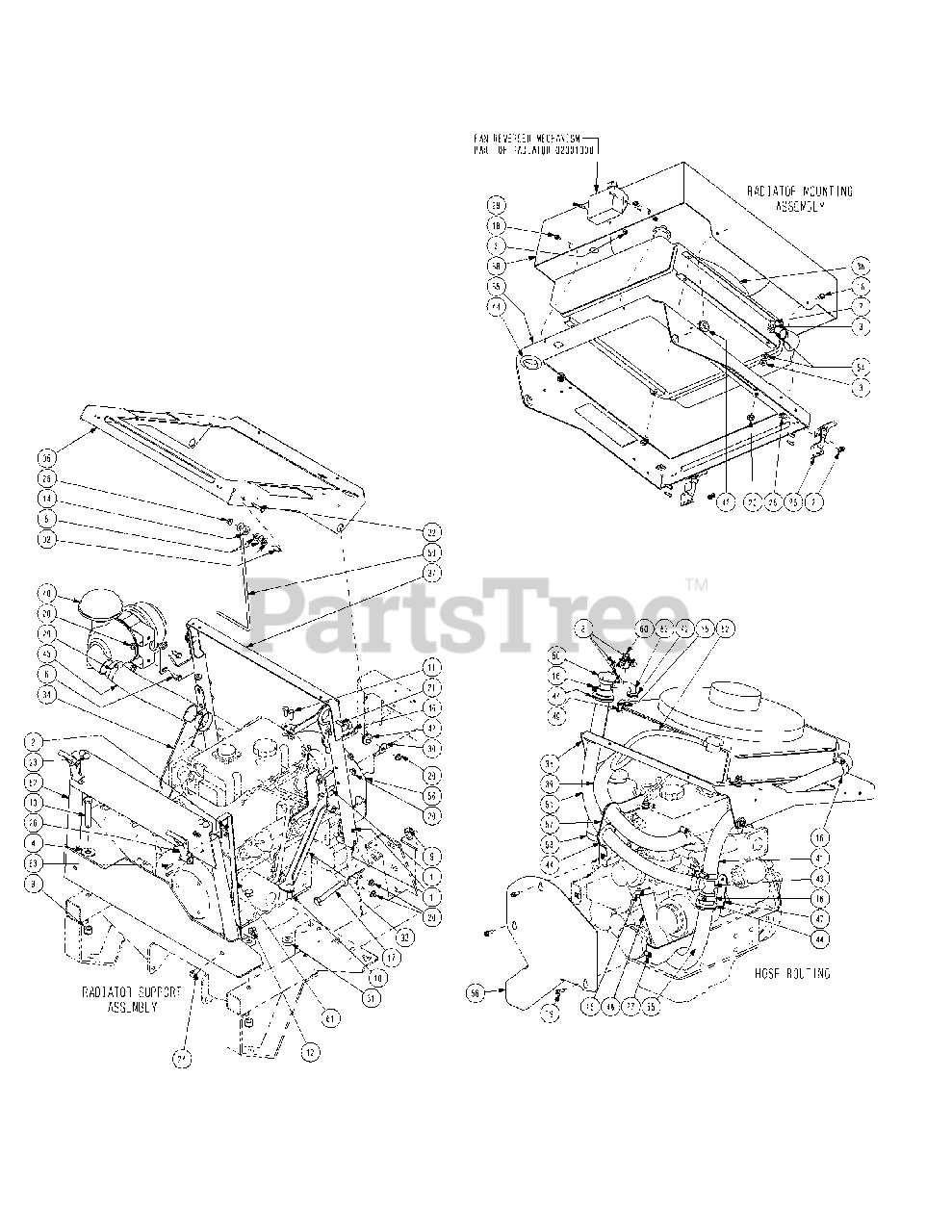

Radiator Assembly Parts Diagram

  • Title

1

Cub Cadet 00006129

Hex Cap Screw, 5/16-18 x 1.75

$6.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 712-0161

Nut, 10-24, Nylon Insert

$4.49

$

In Stock, only 2 left!

0

3

Cub Cadet 00009812

Flat Washer, 5/16

$

$

Not available

4

Cub Cadet 00011459

Flat Washer, 1/2

$5.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 00012158

Flat Washer, 3/8

$4.49

$

In Stock, Qty 9

0

6

Cub Cadet 00012179

Hex Cap Screw, 5/16-18 x 3/4

$3.49

$

Usually ships in 3-6 days

0

7

Cub Cadet 00012180

Hex Head Cap Screw, 5/16-18 x 1.00

$

$

Not available

8

Cub Cadet 00012235

Hose Clamp
(Superseded to 726-04123A)

$3.99

$

In Stock, Qty 6

0

9

Cub Cadet 00012428

Nut, 1/2-13, Nylon Insert

$6.99

$

In Stock, only 2 left!

0

10

Cub Cadet 00013851

Hex Cap Screw, 1/2-13 x 1.00

$

$

Not available

11

Cub Cadet 00014517

Hex Cap Screw, M8-1.25 x 18mm

$

$

Not available

12

Cub Cadet 00022560

Hex Nut, 3/8-16 Flange Lock
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 00030046

Hex Head Cap Screw, 1/2-13 x 3.00

$

$

Not available

14

Cub Cadet 00071691

Spacer, Control Rod

$11.99

$

In Stock, only 1 left!

0

15

Cub Cadet 01000215

Hose Clamp, 1/4-5/8

$

$

Not available

16

Cub Cadet 01000217

Hose Clamp,, 7/8:1-1/4

$15.99

$

In Stock, only 1 left!

0

17

Cub Cadet 01000226

Hex Cap Screw, 1/2-13 x 3.50

$

$

Not available

18

Cub Cadet 710-0599

Screw, TT, 1/4-20, 0.5, Hex Index Washer

$4.49

$

In Stock, Qty 20+

0

19

Cub Cadet 710-0642

Screw, TT, 1/4-20, 0.75, Hex Index Washer

$4.49

$

In Stock, Qty 20+

0

20

Cub Cadet 712-3004A

Hexflange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

21

Cub Cadet 01000641

Carriage Bolt, 5/16-18 x 1.00

$3.49

$

Usually ships in 3-6 days

0

22

Cub Cadet 01000913

Hex Cap Screw, 1/4-20 x 1.25

$2.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 935-0199A

Rubber Bumper, .62 OD x .22 Thick
(Superseded to 735-0199A)

$7.99

$

In Stock, only 4 left!

0

24

Cub Cadet 710-0216

Hex Cap Screw, 3/8-16 x .750

$4.49

$

In Stock, Qty 16

0

25

Cub Cadet 912-3027

Lock Nut, 1/4-20

$4.49

$

In Stock, Qty 20+

0

26

Cub Cadet 935-04038

T-Handle Latch Draw

$15.99

$

In Stock, Qty 14

0

27

Cub Cadet 01008539P

U-Nut, 1/4-20
(Superseded to 726-3054)

$4.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 01009363

Hex Cap Screw, 10-24 x 1/2

$

$

Not available

29

Cub Cadet 01009895

Hose Clamp

$

$

Not available

30

Cub Cadet 01009937

Washer, 5/16 x 1.06

$

$

Not available

31

Cub Cadet 01010119

Nut, 1/2-13, FlangeLock

$7.49

$

In Stock, only 2 left!

0

32

Cub Cadet 02000697

Spacer, .259 x .375 x .707

$

$

Not available

33

Cub Cadet 02001029

Radiator Support Gusset, RH

$

$

Not available

34

Cub Cadet 02001030

Radiator Support Gusset, LH

$45.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 02001051

Radiator Mounting Bracket

$

$

Not available

36

Cub Cadet 02001038P

Radiator includes:

$

$

Not available

36

Cub Cadet 02002896

Fan Reverser Switch

Note: (not shown)

$

$

Not available

36

Cub Cadet 02002923

Radiator Screen

Note: (not shown)

$

$

Not available

36

Cub Cadet 02003811

Fan Assembly

Note: (not shown)

$

$

Not available

36

Cub Cadet 759-04129

Radiator Cap

Note: (not shown)

$50.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 02001043

Radiator Mounting Assembly

$

$

Not available

38

Cub Cadet 02001124

Radiator Shroud Assembly

$

$

Not available

39

Cub Cadet 02001090

Radiator Hose, 1.12 ID x 36" Long

$

$

Not available

40

Cub Cadet 02001097

Air Filter Assy includes:

$

$

Not available

40

Cub Cadet 751-3194

Replacement Filter Element, Outer

Note: (not shown)

$52.99

$

In Stock, only 2 left!

0

41

Cub Cadet 02001110

Radiator Hose 1.12 x 22.5" Long

$

$

Not available

42

Cub Cadet 02001127

Gromment, .62 ID x 1.13 OD

$14.99

$

Usually ships in 3-6 days

0

43

Cub Cadet 02001128

Tee Adaptor

$

$

Not available

44

Cub Cadet 02001134

Gromment, 1.5 ID x 2.13 OD

$

$

Not available

45

Cub Cadet 02001138

Air Hose, 1.75 ID

$

$

Not available

46

Cub Cadet 02001142

Spacer, .625 OD x .407 ID x .375

$

$

Not available

47

Cub Cadet 02001147

Radiator Hose Bracket

$

$

Not available

48

Cub Cadet 02002442

Radiator Hose, 1.12 ID x 18" Long

$

$

Not available

49

Cub Cadet 02002443

Elbow Adaptor, 1/8 NPT x 1/4

$

$

Not available

50

Cub Cadet 02002445

Neck Filler Adaptor

$

$

Not available

51

Cub Cadet 02002448

Radiator Hose, 1" ID x 28.5" Long

$

$

Not available

52

Cub Cadet 02002567

Radiator Hose, 1/4" x 27"

$

$

Not available

53

Cub Cadet 02002568

Radiator Hose, 1/4" x 9"

$

$

Not available

54

Cub Cadet 02002577

Flat Rubber Washer, 1/4

$

$

Not available

55

Cub Cadet 02002772

Belt Shield Bracket

$

$

Not available

56

Cub Cadet 02002774

Belt Shield

$

$

Not available

57

Cub Cadet 02002776

Radiator Hose Bracket

$

$

Not available

58

Cub Cadet 02002810

Over Flow Coolant Container

$

$

Not available

59

Cub Cadet 02002847

Radiator Stand

$

$

Not available

60

Cub Cadet 02002850

Valve

$

$

Not available

61

Cub Cadet 02003919

Radiator Support Bracket

$

$

Not available

62

Cub Cadet 02003918

Radiator Mounting Assembly

$

$

Not available

63

Cub Cadet 02003920

Hex Cap Screw, 10-24 x 3/4

$

$

Not available
