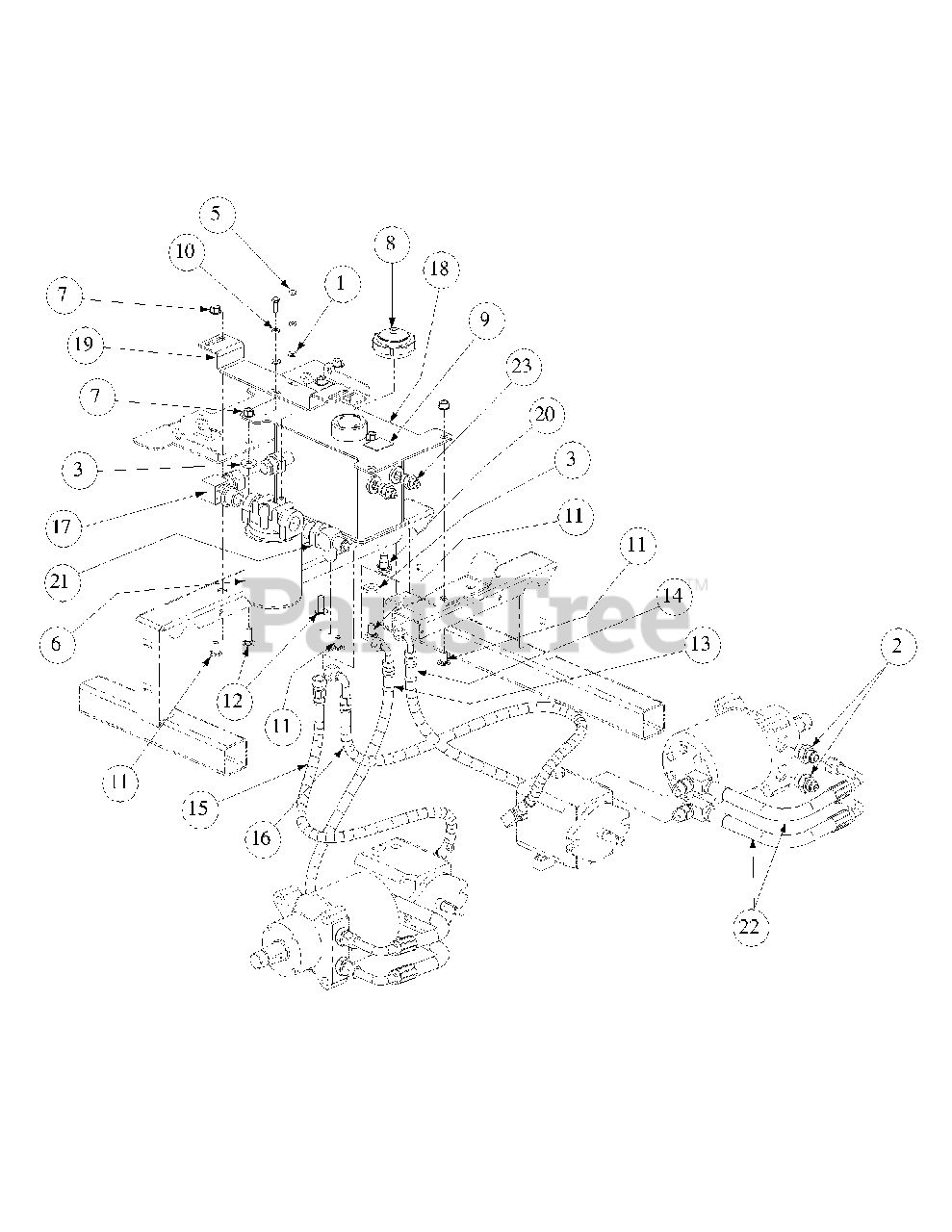

M60-KW LC (53BB5GFX750) - Cub Cadet 60" Tank Zero-Turn Mower, 29hp Kawasaki Hydro Tank And Hose Assembly Parts Diagram

60" Tank Zero-Turn Mower, 29hp Kawasaki

Hydro Tank And Hose Assembly Parts Diagram

  • Title
1

Cub Cadet 00012154

Washer, 1/4
(Superseded to 936-3020)

$

$

Not available

2

Cub Cadet 00012288

Fitting 1/2 x 3/4 - O Ring

$

$

Not available

3

Cub Cadet 736-3052

Washer, .406 x 1.0 OD x .105

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 725-0157

Cable Tie, 3/16 x .05 x 7.4

$3.99

$

In Stock, Qty 20+

0

5

Cub Cadet 00013131

Hex Cap Screw, 1/4-20, .75

$6.49

$

In Stock, only 1 left!

0

6

Cub Cadet 00017665P

Filter Head 3/4

$

$

Not available

6

Cub Cadet 01004166

Filter

Note: (not shown)

$50.99

$

In Stock, only 4 left!

0

7

Cub Cadet 00022560

Hex Nut Flange Lock, 3/8-16
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 00030261

Cap, Hydro Oil Tank

$36.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 01009633

Decal Oil Only 5W40

$

$

Not available

10

Cub Cadet 936-0329

Lock Washer, 1/4

$4.49

$

In Stock, Qty 11

0

11

Cub Cadet 710-3178

Carriage Bolt, 3/8-16 x .75 LG.

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 01000643

Carriage Bolt, 3/8-16 x 1.00

$5.49

$

In Stock, Qty 7

0

13

Cub Cadet 01010174

28.87" Return Hose Assembly

$

$

Not available

14

Cub Cadet 01010175

31.88" Return Hose Assembly

$

$

Not available

15

Cub Cadet 01009540

29.25" Supply Hose Assembly

$

$

Not available

16

Cub Cadet 01009541

40.31 Supply Hose Assembly

$

$

Not available

17

Cub Cadet 01009543

Fitting Elbow, 90

$

$

Not available

18

Cub Cadet 01009544

Hydraulic Tank Assembly

$

$

Not available

19

Cub Cadet 01009558

Filter Mounting Bracket

$

$

Not available

20

Cub Cadet 738-0940

Oil Pan Drain w/ Seal and Plug

$8.49

$

Usually ships in 3-6 days

0

21

Cub Cadet 01006959

Tee Fitting, 3/4 x 1/2 x 1/2

$

$

Not available

22

Cub Cadet 01009542

Hydraulic Hose

$

$

Not available

23

Cub Cadet 01002606

Fitting 1/2 x 3/8

$

$

Not available

Cub Cadet 737-3120

Lubricant
(Superseded to 490-000-C051)

Note: (not shown)

$21.99

$

In Stock, Qty 20+

0
