M60-KW LC (53BB5GFX750) - Cub Cadet 60" Tank Zero-Turn Mower, 29hp Kawasaki Floor Panel Assembly Parts Diagram

60" Tank Zero-Turn Mower, 29hp Kawasaki

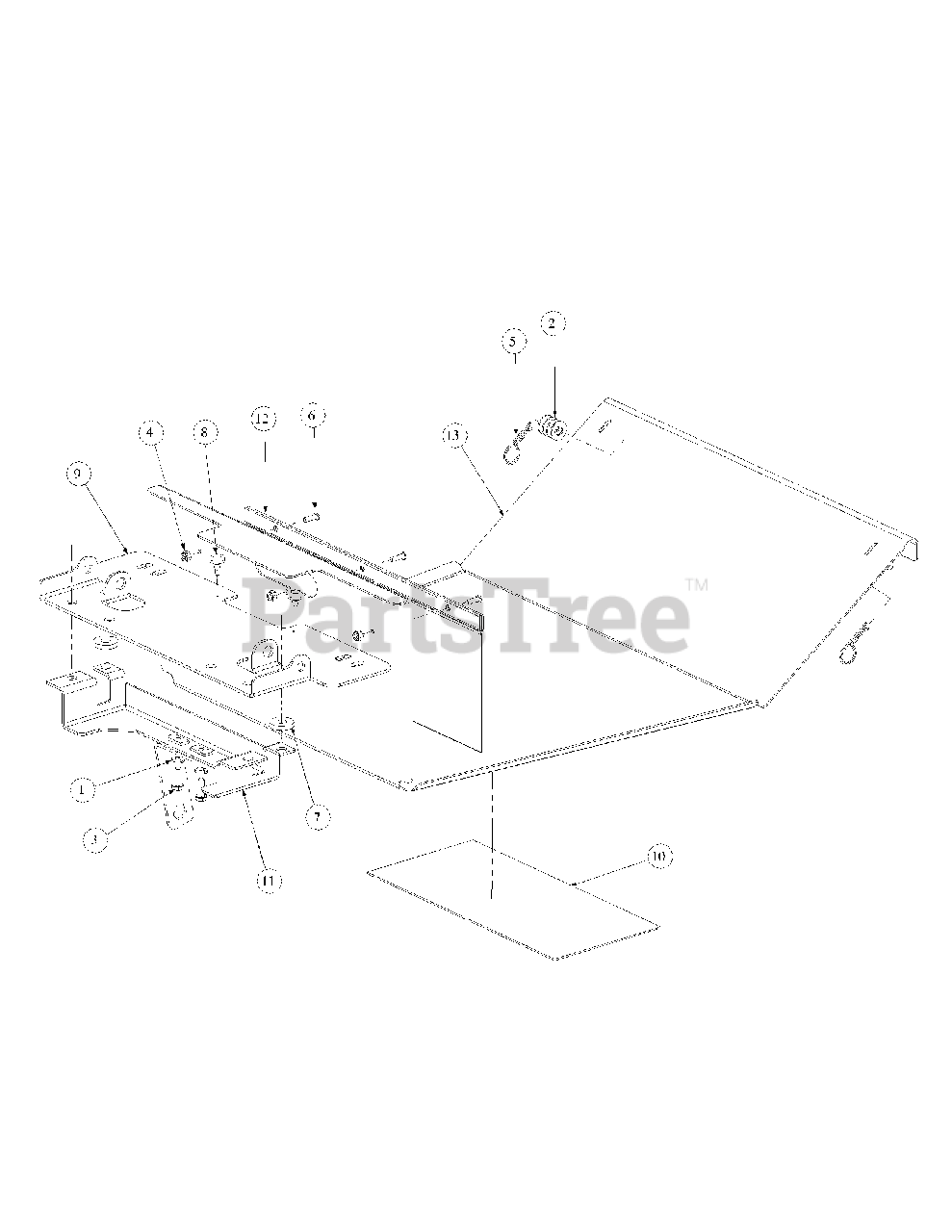

Floor Panel Assembly Parts Diagram

  • Title

1

Cub Cadet 936-0329

Lock Washer, 1/4

$4.49

$

In Stock, Qty 9

0

2

Cub Cadet 00012158

Washer

$4.49

$

In Stock, Qty 9

0

3

Cub Cadet 00013131

Hex Cap Screw, 1/4-20, .75

$6.49

$

In Stock, only 1 left!

0

4

Cub Cadet 00014608

Lock Nut, Nylon Insert, 10-32
(Superseded to 712-05003)

$3.49

$

In Stock, only 3 left!

0

5

Cub Cadet 00021956

Hair Pin, 3/8-1/2
(Superseded to 914-04023)

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 00030906

Screw, Phillips Head, Machine, 10-32 x 5/8

$6.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 00083192

Washer
(Superseded to 736-0258)

$4.49

$

In Stock, only 4 left!

0

8

Cub Cadet 935-0199A

Rubber Bumper, .62 OD x .22 Thick
(Superseded to 735-0199A)

$7.99

$

In Stock, only 2 left!

0

9

Cub Cadet 01002656-0637

Panel Seat

$

$

Not available

10

Cub Cadet 01004992

Label, Belt Routing and Lubrication

$24.99

$

In Stock, only 3 left!

0

11

Cub Cadet 02000361

Support, Seat Bracket

$

$

Not available

12

Cub Cadet 02000362

Bag, Debris Storage

$

$

Not available

13

Cub Cadet 02000433

Floor Panel Assembly

$

$

Not available
