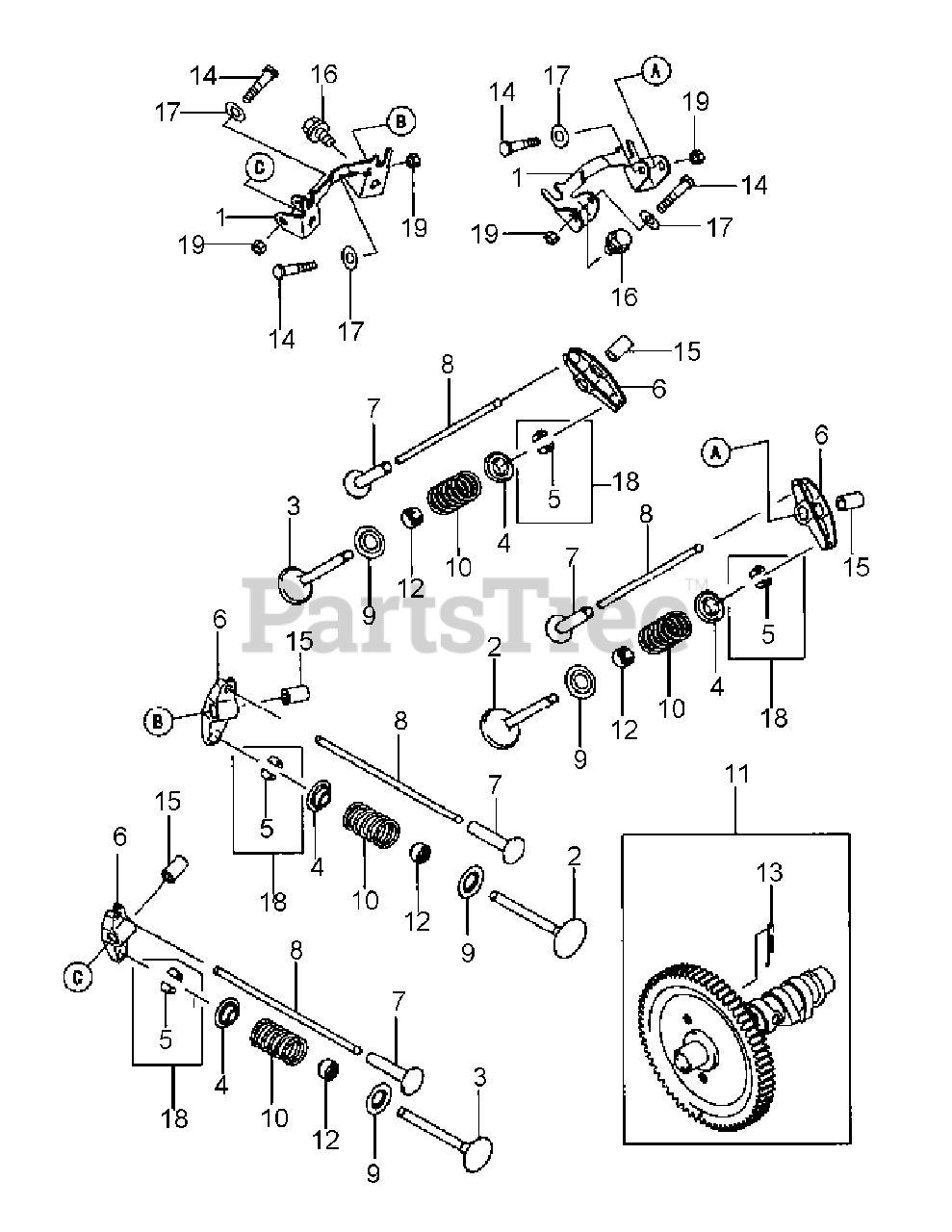

M60-KW LC (53BB5GFX750) - Cub Cadet 60" Tank Zero-Turn Mower, 29hp Kawasaki FD791D-AS05 Valve & Camshaft Parts Diagram

60" Tank Zero-Turn Mower, 29hp Kawasaki

FD791D-AS05 Valve & Camshaft Parts Diagram

  • Title

1

Cub Cadet KM-11051-2092

BRACKET

$9.49

$

Usually ships in 2-5 days

0

2

Cub Cadet KM-12004-2113

INTAKE VALVE

$31.99

$

In Stock, only 2 left!

0

3

Cub Cadet KM-12005-2100

EXHAUST VALVE

$41.99

$

In Stock, only 2 left!

0

4

Cub Cadet KM-12009-2060

VALVE SPRING RETAINER

$5.99

$

In Stock, Qty 6

0

5

Cub Cadet KM-12011-2052

COLLET

$2.99

$

In Stock, Qty 5

0

6

Cub Cadet KM-12016-2066

ROCKER ARM
(Superseded to KM-12016-0040)

$13.99

$

In Stock, only 3 left!

0

7

Cub Cadet KM-12032-2060

TAPPET

$17.99

$

In Stock, only 2 left!

0

8

Cub Cadet KM-13116-2074

PUSH ROD

$13.99

$

Usually ships in 2-5 days

0

9

Cub Cadet KM-16007-2052

SPRING SEAT

$1.49

$

In Stock, Qty 7

0

10

Cub Cadet KM-49078-2060

VALVE SPRING

$4.99

$

In Stock, Qty 11

0

11

Cub Cadet KM-49118-2138

CAMSHAFT COMPLETE

$218.99

$

Usually ships in 2-5 days

0

12

Cub Cadet KM-92049-2100

OIL SEAL, VSB 7x12x5.5x9.7

$5.49

$

In Stock, only 3 left!

0

13

Cub Cadet KM-92145-2085

SPRING

$2.99

$

Usually ships in 2-5 days

0

14

Cub Cadet KM-92151-2165

BOLT M6

$3.99

$

In Stock, only 1 left!

0

15

Cub Cadet KM-92152-2077

COLLAR

$2.49

$

In Stock, only 1 left!

0

16

Cub Cadet KM-92153-2062

BOLT, 8x14

$1.99

$

In Stock, only 1 left!

0

17

Cub Cadet KM-92200-2128

WASHER, 8.1x18x.5
(Superseded to KM-92200-2151)

$1.49

$

In Stock, Qty 8

0

18

Cub Cadet KM-99996-2077

COLLET KIT

$1.99

$

Usually ships in 2-5 days

0

19

Cub Cadet KM-311AA0600

HEX NUT

$0.99

$

In Stock, Qty 16

0
