M60-KW LC (53AJ8CTX750) - Cub Cadet 60" Tank Zero-Turn Mower, 29hp Kawasaki Fuel Tank Assembly Parts Diagram

60" Tank Zero-Turn Mower, 29hp Kawasaki

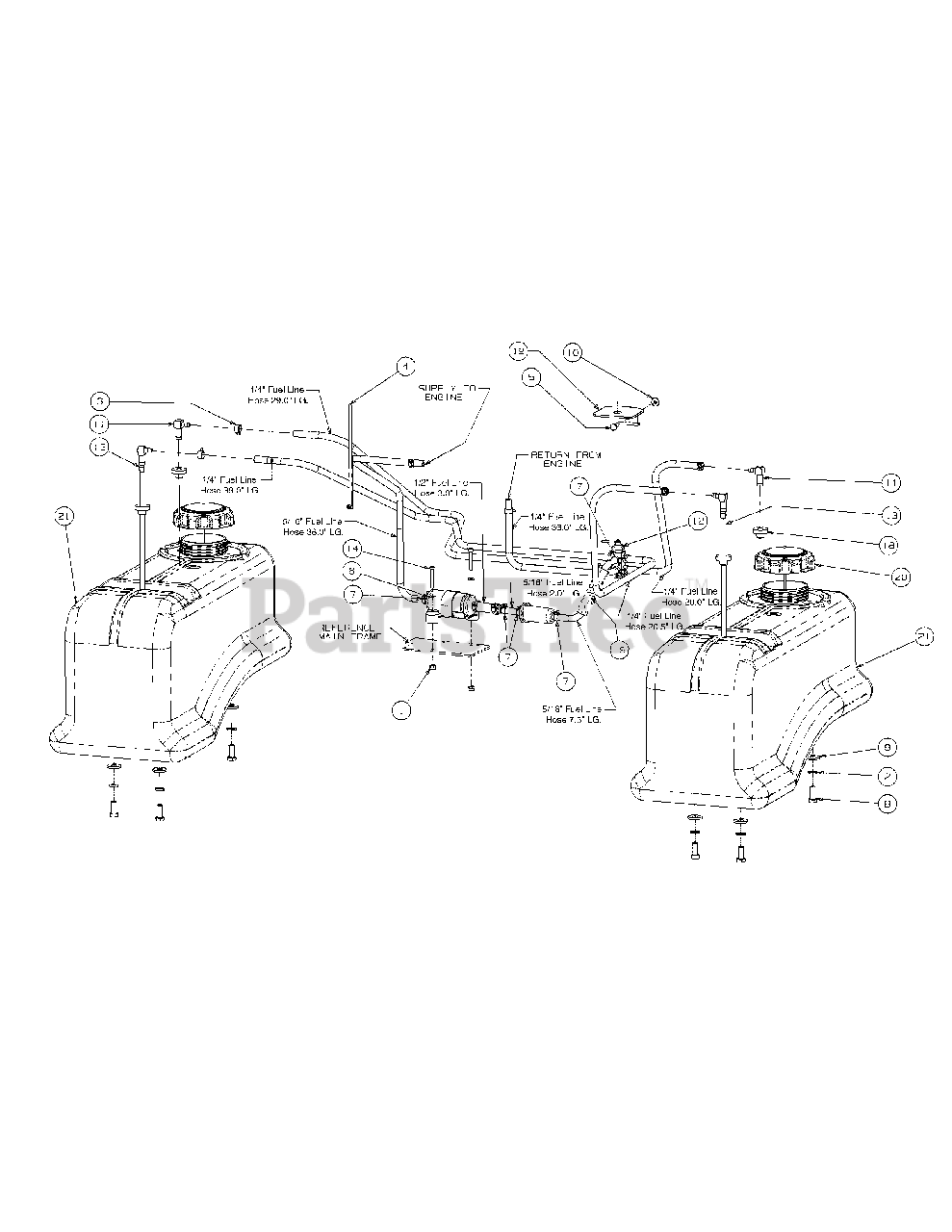

Fuel Tank Assembly Parts Diagram

  • Title

1

Cub Cadet 712-0161

Nut, 10-24, Nylon Insert

$4.49

$

In Stock, Qty 20+

0

2

Cub Cadet 936-0169

Lock Washer, 3/8
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

3

Cub Cadet 00012235

Clamp, Union
(Superseded to 726-04123A)

$3.99

$

In Stock, Qty 6

0

4

Cub Cadet 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

5

Cub Cadet 00013131

Hex Cap Screw, 1/4-20 x 3/4

$6.49

$

In Stock, only 1 left!

0

6

Cub Cadet 00016771

Washer, 3/16

$

$

Not available

7

Cub Cadet 01000215

Hose Clamp

$

$

Not available

8

Cub Cadet 710-3001

Hex, Cap Screw, 3/8-16, .88

$7.49

$

In Stock, Qty 9

0

9

Cub Cadet 736-3052

Flat Washer, .406 ID, 1.0 OD, .105

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 912-3027

Hex Flange Lock Nut, 1/4-20

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 01009809P

Fuel Fitting, Return

$48.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 01009812

Shut Off Fuel Valve

$171.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 01009821P

Fuel Fitting, Pickup
(Superseded to 751-11986B)

$

$

Not available

14

Cub Cadet 01009831

Socket Head Screw, 10-24 x 1.25

$6.99

$

Usually ships in 3-6 days

0

15

Cub Cadet n/a

Hose, 1/4" Fuel Line (144.5 inches)

Note: (purchase locally)

$

$

Currently unavailable

16

Cub Cadet n/a

Hose, .31 ID x .56 OD Fuel Line (45.5 inches)

Note: (purchase locally)

$

$

Currently unavailable

17

Cub Cadet n/a

Fuel Hose, .50 ID x .75 OD (3 inches)

Note: (purchase locally)

$

$

Currently unavailable

18

Cub Cadet 02002253

Fuel Tank Grommet

$4.99

$

In Stock, only 2 left!

0

19

Cub Cadet 02003032-0637

Fuel Valve Mounting Bracket

$

$

Not available

20

Cub Cadet 951-3124E

Fuel Cap 3.5, Tethered

$36.99

$

In Stock, only 1 left!

0

21

Cub Cadet 02003843

Fuel Tank

$238.99

$

Usually ships in 3-6 days

0
