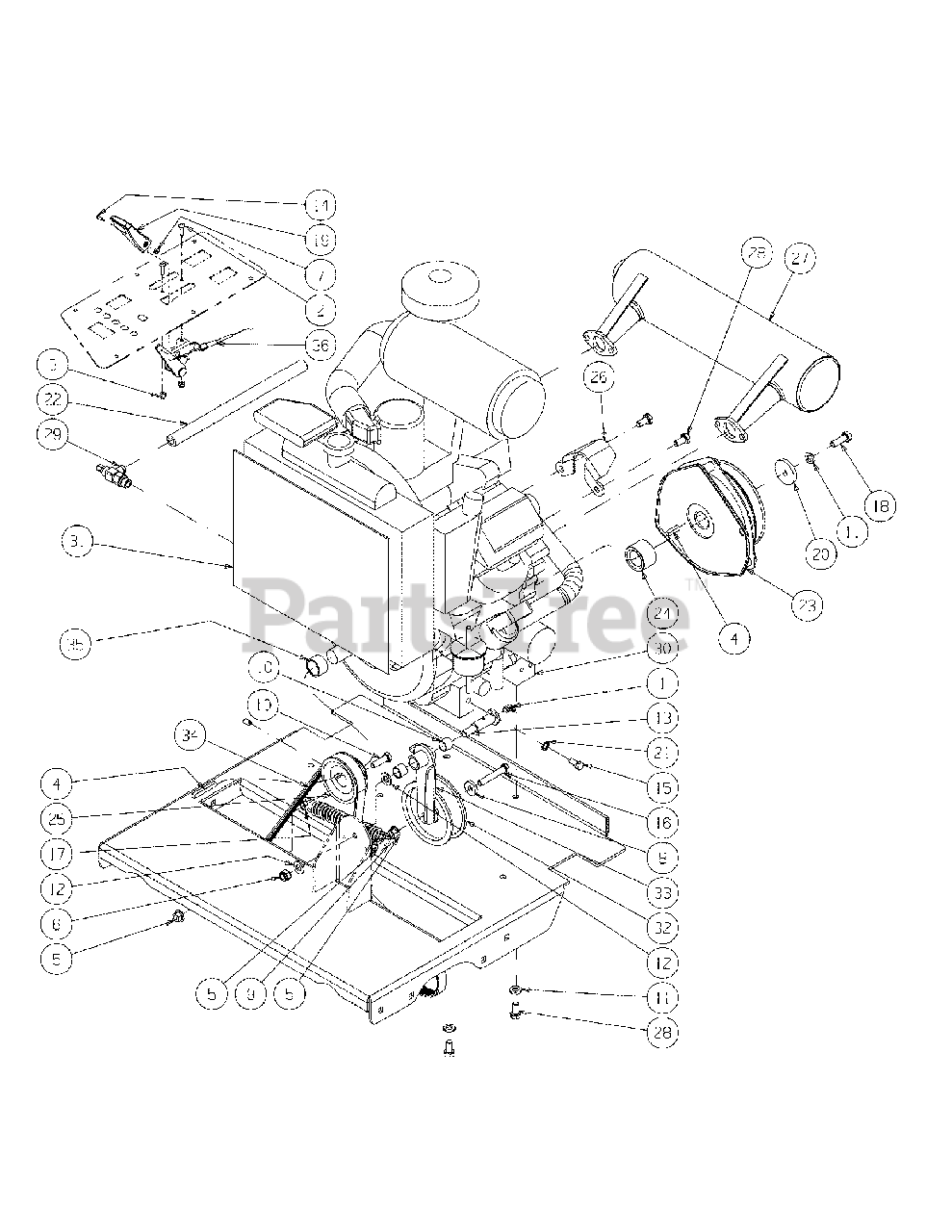

M60-KW LC (53AJ8CT6050) - Cub Cadet 60" Tank Zero-Turn Mower, 29hp Kawasaki Kawasaki Engine Assembly Parts Diagram

60" Tank Zero-Turn Mower, 29hp Kawasaki

Kawasaki Engine Assembly Parts Diagram

  • Title

1

Cub Cadet 737-3004

Grease Fitting, 1/4-28 90 Degree

$11.99

$

In Stock, Qty 6

0

2

Cub Cadet 00014602

Round Hd. Machine Screw, 10-32 x 3/4

$

$

Not available

3

Cub Cadet 00014608

Lock Nut, Nylon Insert, 10-32
(Superseded to 712-05003)

$3.49

$

In Stock, only 3 left!

0

4

Cub Cadet 00021517

Key Stock, 1/4 x 1/4 x 2.00

$8.99

$

In Stock, only 1 left!

0

5

Cub Cadet 00022560

Nut, 3/8-16, Hex Flange Lock
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 712-0290

Nut, 7/16-14, Nylock

$4.99

$

In Stock, Qty 11

0

7

Cub Cadet 00060056

Nut Washer, W/Star, 8-32

$6.99

$

In Stock, only 1 left!

0

8

Cub Cadet 00083192

Washer, 3/8
(Superseded to 736-0258)

$4.49

$

Usually ships in 3-6 days

0

9

Cub Cadet 01000199

Extension Spring, 1.0 OD x 5.00

$17.99

$

In Stock, only 4 left!

0

10

Cub Cadet 710-3005

Hex Cap Screw, 3/8-16 x 1.25

$3.99

$

In Stock, Qty 10

0

11

Cub Cadet 936-0171

Lock Washer, 7/16
(Superseded to 736-0171)

$4.49

$

In Stock, only 4 left!

0

12

Cub Cadet 936-3015

Washer, .469 ID x .875 OD x .105

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 738-3108

Shoulder Screw, 7/16-14
(Superseded to 738-05004)

$22.99

$

In Stock, Qty 6

0

14

Cub Cadet 710-3217

Machine Screw, 8-32, .375

$6.99

$

In Stock, Qty 7

0

15

Cub Cadet 01000981

HHCS, M10 x 1.25, 20mm

$

$

Not available

16

Cub Cadet 01001366

HHCS, 3/8-16 x 2.25

$

$

Not available

17

Cub Cadet 01002511

Jam Nut, 3/8-16

$5.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 01002885

HHCS, M10 x 1.5, 30mm

$

$

Not available

19

Cub Cadet 731-04914

Control Throttle Knob

$13.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 736-04131

Flat Washer, 7/16 ID x 1.75 OD x .25

$15.99

$

In Stock, only 1 left!

0

21

Cub Cadet 01005851

Washer, 3/8 ID, External Tooth
(Superseded to 736-0148)

$3.99

$

In Stock, Qty 20+

0

22

Cub Cadet 01006223

Oil Drain Extension Hose
(Superseded to 751-3141-14)

$11.99

$

In Stock, Qty 8

0

23

Cub Cadet 01009590P

Clutch Brake

$1098.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 01009591

Spacer, 1.75 OD x 1.135 ID x 1.125

$31.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 01009594

Pulley, 3.05 OD x 1.0 Bore

$118.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 01009597-0637

Clutch Retainer Bracket

$

$

Not available

27

Cub Cadet 01009614

Muffler, 29HP Horizontal, Kawasaki

$436.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 01009616

Hex Head Cap Screw, M10 x 1.5, 20mm

$

$

Not available

29

Cub Cadet 01009621

Oil Valve

$

$

Not available

30

Cub Cadet 01009625

29HP Digital Fuel Injection Engine, Kawasaki

Note: NLA

$

$

Not available

31

Cub Cadet 01009634

Screen, Kawasaki 29HP Radiator

$

$

Not available

32

Cub Cadet 02000302

Idler Pulley, 3.5 OD

$

$

Not available

33

Cub Cadet 02000305

Idler Arm Assembly
(Superseded to 02000305P)

$

$

Not available

33

Cub Cadet 01000308

Bearing
(Superseded to 741-04555)

$16.99

$

In Stock, Qty 18

0

34

Cub Cadet 02000408

V Belt
(Superseded to 02000408P)

$55.99

$

In Stock, only 1 left!

0

35

Cub Cadet 02002259

Spacer, 1.25 OD x 1.01 ID x .731

$

$

Not available

36

Cub Cadet 02003001

Throttle Cable, 42.0
(Superseded to 946-04840)

$42.99

$

In Stock, only 1 left!

0

Cub Cadet KM-11013-7020

Air Filter

Note: (not shown)

$28.99

$

In Stock, Qty 13

0

Cub Cadet KM-11013-7019

Air Filter (Inner)

Note: (not shown)

$31.99

$

In Stock, Qty 20+

0

Cub Cadet KM-49019-1055

Fuel Filter
(Superseded to KM-49019-0032)

Note: (not shown)

$25.99

$

In Stock, Qty 20+

0

Cub Cadet KM-49065-7010

Oil Filter
(Superseded to KM-49065-0724)

Note: (not shown)

$18.99

$

In Stock, Qty 20+

0

Cub Cadet KM-BPR4ES

Spark Plug

Note: (not shown)

$3.49

$

In Stock, Qty 11

0
