M60-KW LC (53AJ8CT6050) - Cub Cadet 60" Tank Zero-Turn Mower, 29hp Kawasaki Hydraulic Pump RH Parts Diagram

60" Tank Zero-Turn Mower, 29hp Kawasaki

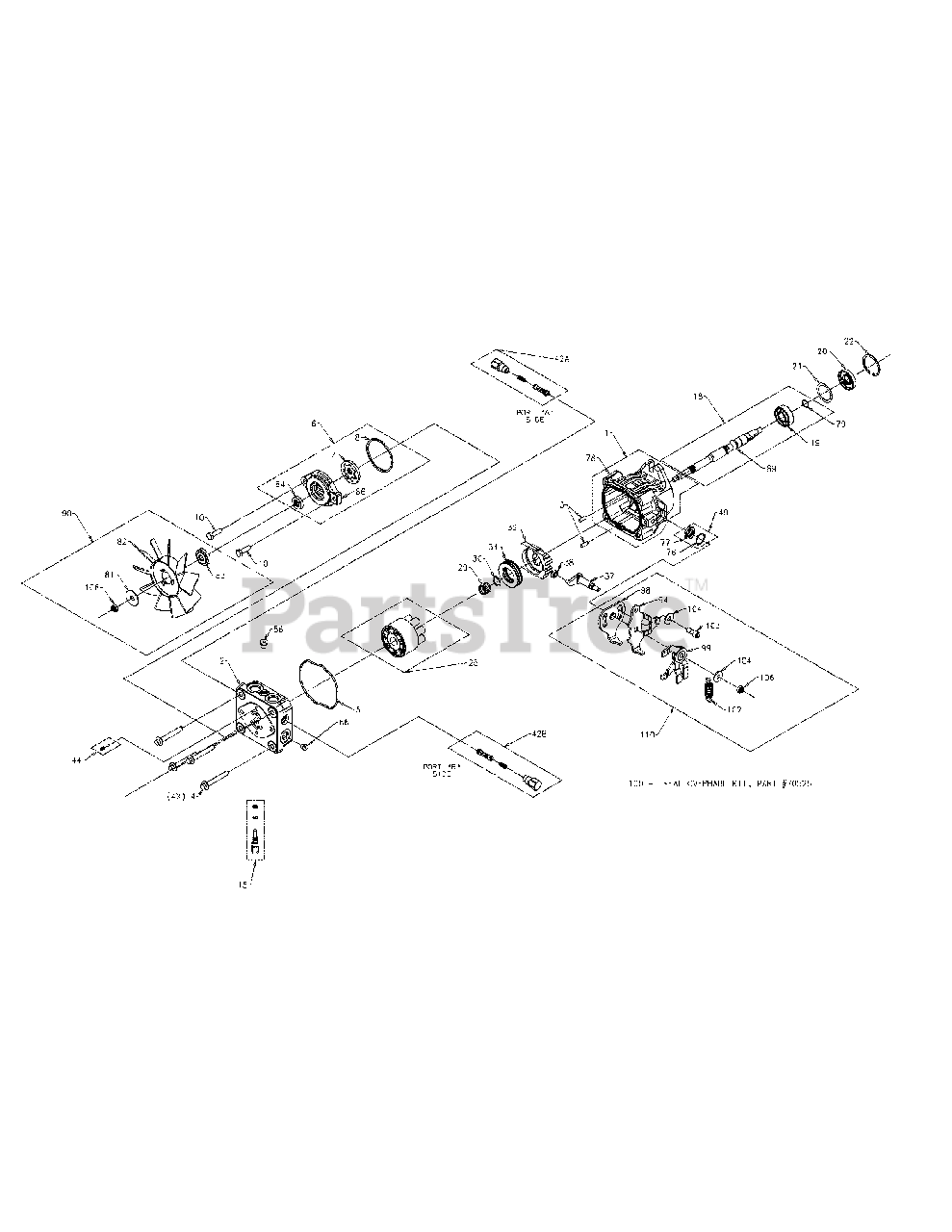

Hydraulic Pump RH Parts Diagram

  • Title

1

Cub Cadet HG-70797

Kit, Housing
(Superseded to HG-71717)

Note: includes (78)

$114.99

$

Usually ships in 3-6 days

0

2

Cub Cadet HG-52038

Kit, Endcap

Note: NLA

$

$

Not available

3

Cub Cadet HG-50641

Straight Headless Pin

Note: includes (66)

$6.99

$

Usually ships in 3-6 days

0

4

Cub Cadet HG-50969

Hex Flange Bolt M8-1.25 x 60mm Long

$5.99

$

Usually ships in 3-6 days

0

5

Cub Cadet HG-54022

Housing, O-Ring

$7.99

$

Usually ships in 3-6 days

0

5

O-Ring, Housing

Note: furnish HG-70525

$

$

Not available

6

Cub Cadet HG-71247

Kit, Charge Pump (STD CHG .19 ci/rev, Thru)

Note: includes (7) (8) (84) (86)

$464.99

$

Usually ships in 3-6 days

0

7

Gerotor

Note: furnish HG-71247

$

$

Not available

8

O-Ring

Note: furnish HG-71247

$

$

Not available

8

O-Ring

Note: furnish HG-70525

$

$

Not available

10

Cub Cadet HG-9007200-3116

Screw, 5/16-18 x 1.00 Long
(Superseded to HG-72254)

$20.99

$

Usually ships in 3-6 days

0

15

Cub Cadet HG-71248

Kit, Bypass Valve

$

$

Not available

18

Cub Cadet HG-71252

Kit, Pump Shaft (15mm Tapered Keyed Thru)

Note: includes (19) (79) (89

$317.99

$

Usually ships in 3-6 days

0

19

Bearing, Ball 17 x 40 x 12

Note: furnish HG-71252

$

$

Not available

20

Cub Cadet HG-51161

Lip Seal 17 x 40 x 7 PTC

$11.99

$

Usually ships in 3-6 days

0

20

Seal, Lip 17 x 40 x 7

Note: furnish HG-70525

$

$

Not available

21

Cub Cadet HG-50951

Spacer

$4.49

$

Usually ships in 3-6 days

0

22

Cub Cadet HG-50329

Retaining Ring

$11.99

$

Usually ships in 3-6 days

0

22

Ring, Retaining

Note: furnish HG-70525

$

$

Not available

25

Cub Cadet HG-71971

Cylinder Block Kit

$99.99

$

Usually ships in 3-6 days

0

29

Cub Cadet HG-2003014

Block Spring

$4.99

$

Usually ships in 3-6 days

0

30

Cub Cadet HG-2003017

Block Thrust Washer

$4.49

$

Usually ships in 3-6 days

0

32

Cub Cadet HG-2003087

Swashplate

$220.99

$

Usually ships in 3-6 days

0

34

Cub Cadet HG-50551P

Ball Thrust Bearing

$29.99

$

Usually ships in 3-6 days

0

37

Cub Cadet HG-50807

Arm, Trunnion Tapered Square

$

$

Not available

38

Cub Cadet HG-2000015

Slot Guide

$21.99

$

Usually ships in 3-6 days

0

42A

Cub Cadet HG-70743

Kit, Shock Valve (200 Bar, .031 Orifice)

$83.99

$

Usually ships in 3-6 days

0

42B

Cub Cadet HG-70743

Kit, Shock Valve (200 Bar, .031 Orifice)

$83.99

$

Usually ships in 3-6 days

0

44

Cub Cadet HG-70402

Charge Relief Kit, (1/4 Plastic Ball & 2000029 Spring)

$7.99

$

Usually ships in 3-6 days

0

49

Cub Cadet HG-2513043

Trunnion Seal / Retainer Kit

Note: includes (76) (77)

$12.99

$

Usually ships in 3-6 days

0

56

Cub Cadet HG-9005110-4400

Plug - 7/16-18 Steel (Diagnostic)

$

$

Not available

66

Plug 9/16-18 (Metal)

Note: furnish HG-52038

$

$

Not available

76

Ring, Ret. -Star Wash 1.0

Note: furnish HG-2513043

$

$

Not available

76

Ring, Retaining

Note: furnish HG-70525

$

$

Not available

77

Seal, Lip 12 x 25 x 5

Note: furnish HG-2513043

$

$

Not available

77

Seal, Lip 12 x 25 x 5

Note: furnish HG-70525

$

$

Not available

78

Housing, Pump

Note: furnish HG-70797

$

$

Not available

79

Ring, Ret. Wire .561 I.D.

Note: furnish HG-71252

$

$

Not available

81

Washer, O.D. Slotted .40 x 1.55 x .06

Note: furnish HG-71172

$

$

Not available

82

Fan, 6", 10 Blade

Note: furnish HG-71172

$

$

Not available

83

Fan Hub

Note: furnish HG-71172

$

$

Not available

84

Seal

Note: furnish HG-71247

$

$

Not available

86

Housing, Charge Pump

Note: furnish HG-71247

$

$

Not available

89

Shaft, Input Tapered Keyed

Note: furnish HG-71252

$

$

Not available

90

Cub Cadet HG-71172

Kit, Fan

Note: includes (81) (82) (83) (106)

$36.99

$

Usually ships in 3-6 days

0

94

Arm, Control

Note: furnish HG-70794

$

$

Not available

98

Arm, RTN

Note: furnish HG-70794

$

$

Not available

99

Assembly, RTN Bi-Directional

Note: furnish HG-70794

$

$

Not available

100

Cub Cadet HG-70525

Overhaul Seal Kit

Note: includes (5) (8) (20) (22) (76) (77)

$58.99

$

Usually ships in 3-6 days

0

102

Spring, Extension (STD)

Note: furnish HG-70794

$

$

Not available

103

Screw, 5/16-24 x .75 (Patch)

Note: furnish HG-70794

$

$

Not available

104

Washer

Note: furnish HG-70794

$

$

Not available

106

Nut, Lock, Side 5/16-24UNF-2B

Note: furnish HG-71172

$

$

Not available

106

Nut, Lock, Side 5/16-24UNF-2B

Note: furnish HG-70794

$

$

Not available

110

Cub Cadet HG-70794

Kit, RTN

Note: includes (94) (98) (99) (102) (103) (104) (106)

$67.99

$

Usually ships in 3-6 days

0
