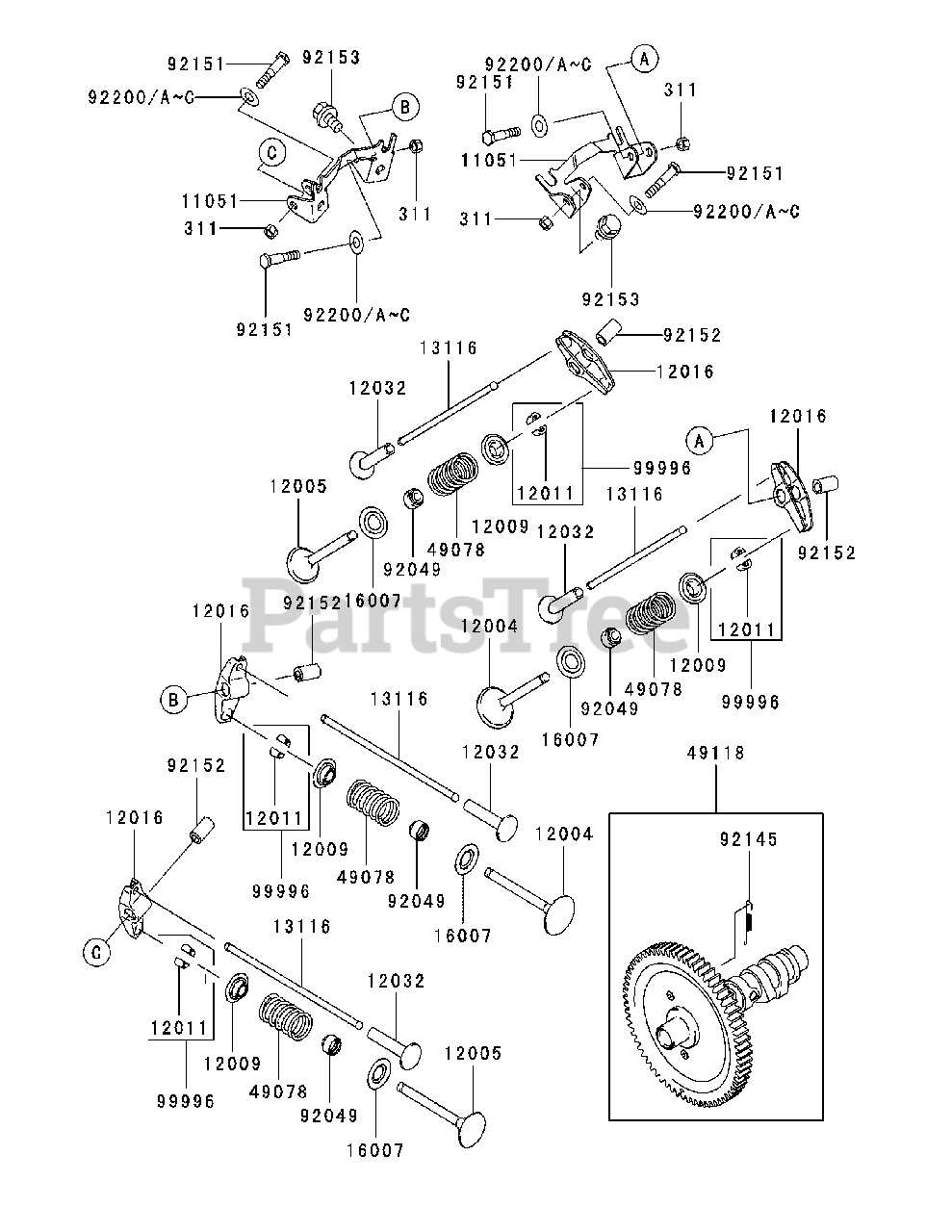

M60-KW LC (53AJ8CT6050) - Cub Cadet 60" Tank Zero-Turn Mower, 29hp Kawasaki FD791D-CS05 Valve & Camshaft Parts Diagram

60" Tank Zero-Turn Mower, 29hp Kawasaki

FD791D-CS05 Valve & Camshaft Parts Diagram

  • Title

11051

Cub Cadet KM-11051-2092

Bracket

$9.49

$

Usually ships in 2-5 days

0

12004

Cub Cadet KM-12004-2113

Valve-Intake

$31.99

$

In Stock, only 2 left!

0

12005

Cub Cadet KM-12005-2100

Valve-Exhaust

$41.99

$

In Stock, only 2 left!

0

12009

Cub Cadet KM-12009-2060

Retainer-Valve Spring

$5.99

$

In Stock, Qty 6

0

12011

Cub Cadet KM-12011-2052

Collet

$2.99

$

In Stock, Qty 5

0

12016

Cub Cadet KM-12016-2066

Arm-Rocker
(Superseded to KM-12016-0040)

$13.99

$

In Stock, only 3 left!

0

12032

Cub Cadet KM-12032-2060

Tappet

$17.99

$

In Stock, only 2 left!

0

13116

Cub Cadet KM-13116-2074

Rod-Push

$13.99

$

Usually ships in 2-5 days

0

16007

Cub Cadet KM-16007-2052

Seat-Spring

$1.49

$

In Stock, Qty 7

0

49078

Cub Cadet KM-49078-2060

Spring-Engine Valve

$4.99

$

In Stock, Qty 11

0

49118

Cub Cadet KM-49118-2138

Camshaft-Comp

$218.99

$

Usually ships in 2-5 days

0

92049

Cub Cadet KM-92049-2100

Seal-Oil, VSB 7x12x5.5x9.7

$5.49

$

In Stock, only 3 left!

0

92145

Cub Cadet KM-92145-2085

Soring

$2.99

$

Usually ships in 2-5 days

0

92151

Cub Cadet KM-92151-2165

Bolt, M6

$3.99

$

In Stock, only 1 left!

0

92152

Cub Cadet KM-92152-2077

Collar

$2.49

$

In Stock, only 1 left!

0

92153

Cub Cadet KM-92153-2062

Bolt, 8x14

$1.99

$

In Stock, only 1 left!

0

92200B

Cub Cadet KM-92200-2151

Washer, 8.1x18x0.5

$1.49

$

In Stock, Qty 8

0

99996

Cub Cadet KM-99996-2077

Kit,Collet

$1.99

$

Usually ships in 2-5 days

0

311

Cub Cadet KM-311AA0600

Nut-Hex,6MM

$0.99

$

In Stock, Qty 16

0
