M60-KW LC (53AJ8CT6050) - Cub Cadet 60" Tank Zero-Turn Mower, 29hp Kawasaki FD791D-CS05 Throttle Equipment Parts Diagram

60" Tank Zero-Turn Mower, 29hp Kawasaki

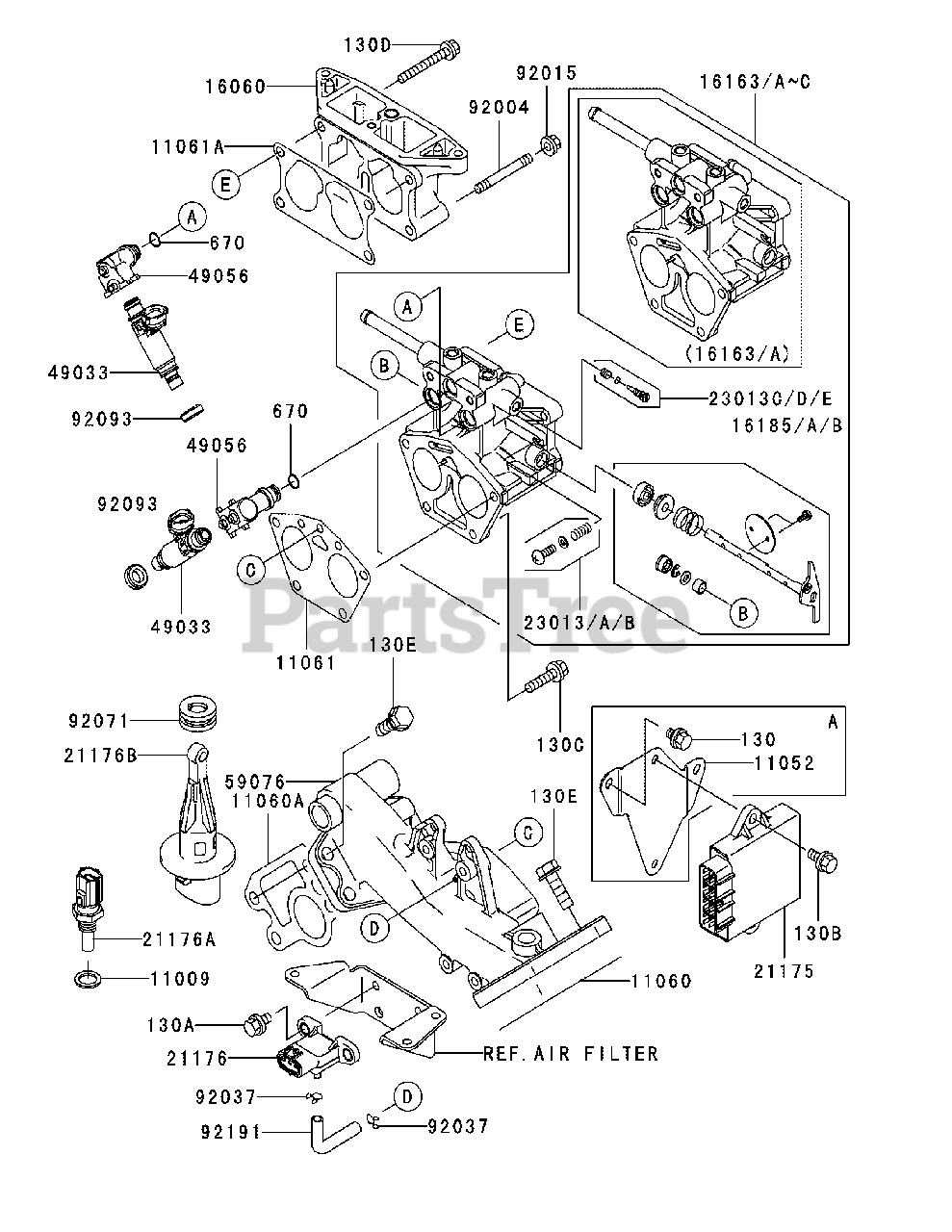

FD791D-CS05 Throttle Equipment Parts Diagram

  • Title

11009

Cub Cadet KM-11009-1376

Gasket, 12.5x18x1.5

$1.99

$

Usually ships in 2-5 days

0

11060

Cub Cadet KM-11060-2468

Gasket, Intake Manifold

$6.99

$

In Stock, only 2 left!

0

11060A

Cub Cadet KM-11060-2469

Gasket, Intake Manifold

$5.49

$

In Stock, only 1 left!

0

11061

Cub Cadet KM-11061-2058

Gasket, Throttle

$5.49

$

In Stock, Qty 6

0

11061A

Cub Cadet KM-11061-2075

Gasket, Pipe-Intake

$5.49

$

In Stock, only 2 left!

0

16060

Cub Cadet KM-16060-2194

Pipe-Intake

$43.99

$

Usually ships in 2-5 days

0

16163B

Cub Cadet KM-16163-2067

Throttle Assy
(Superseded to KM-16163-0741)

$311.99

$

Usually ships in 2-5 days

0

16185

Cub Cadet KM-16185-2046

Valve-Assy-Throttle

$58.99

$

Usually ships in 2-5 days

0

21175

Cub Cadet KM-21175-2061

Control Unit-Electronic

$740.99

$

Usually ships in 2-5 days

0

21176

Cub Cadet KM-21176-1095

Sensor

$157.99

$

Usually ships in 2-5 days

0

21176A

Cub Cadet KM-21176-2097

Sensor

$37.99

$

Usually ships in 2-5 days

0

21176B

Cub Cadet KM-21176-2106

Sensor

$27.99

$

Usually ships in 2-5 days

0

23013

Cub Cadet KM-23013-2065

Screw-Assy

$8.49

$

Usually ships in 2-5 days

0

23013C

Cub Cadet KM-23013-2066

Screw-Assy

$11.99

$

Usually ships in 2-5 days

0

49033

Cub Cadet KM-49033-2059

Nozzle-Injection

$229.99

$

Usually ships in 2-5 days

0

49056

Cub Cadet KM-49056-2060

Pipe-Injection
(Superseded to KM-49056-2062)

$28.99

$

Usually ships in 2-5 days

0

59076

Cub Cadet KM-59076-2080

Manifold-Intake

$229.99

$

Usually ships in 2-5 days

0

92004

Cub Cadet KM-92004-2133

Stud, 6x100

$3.99

$

Usually ships in 2-5 days

0

92015

Cub Cadet KM-92015-1367

Nut

$4.49

$

In Stock, only 2 left!

0

92037

Cub Cadet KM-92037-2163

Clamp

$2.49

$

In Stock, only 2 left!

0

92071

Cub Cadet KM-92071-2140

Grommet

$3.49

$

Usually ships in 2-5 days

0

92093

Cub Cadet KM-92093-2119

Seal

$

$

Not available

92191

Cub Cadet KM-92191-2133

Tube, 4x7x65

$

$

Not available

130A

Cub Cadet KM-130BA0610

Bolt-Flanged, 6x10

$1.49

$

In Stock, only 4 left!

0

130B

Cub Cadet KM-130BA0612

Bolt-Flanged, 6x25

$1.99

$

In Stock, Qty 20+

0

130C

Cub Cadet KM-130BA0625

Bolt-Flanged, 6x45

$1.49

$

In Stock, Qty 20+

0

130D

Cub Cadet KM-130BA0645

Bolt-Flanged, 6x45

$1.49

$

In Stock, Qty 5

0

130E

Cub Cadet KM-130G0825

Bolt-Flanged, 8x25

$

$

Not available

670

Cub Cadet KM-670E1508

O Ring, 8mm

$1.99

$

In Stock, only 2 left!

0
