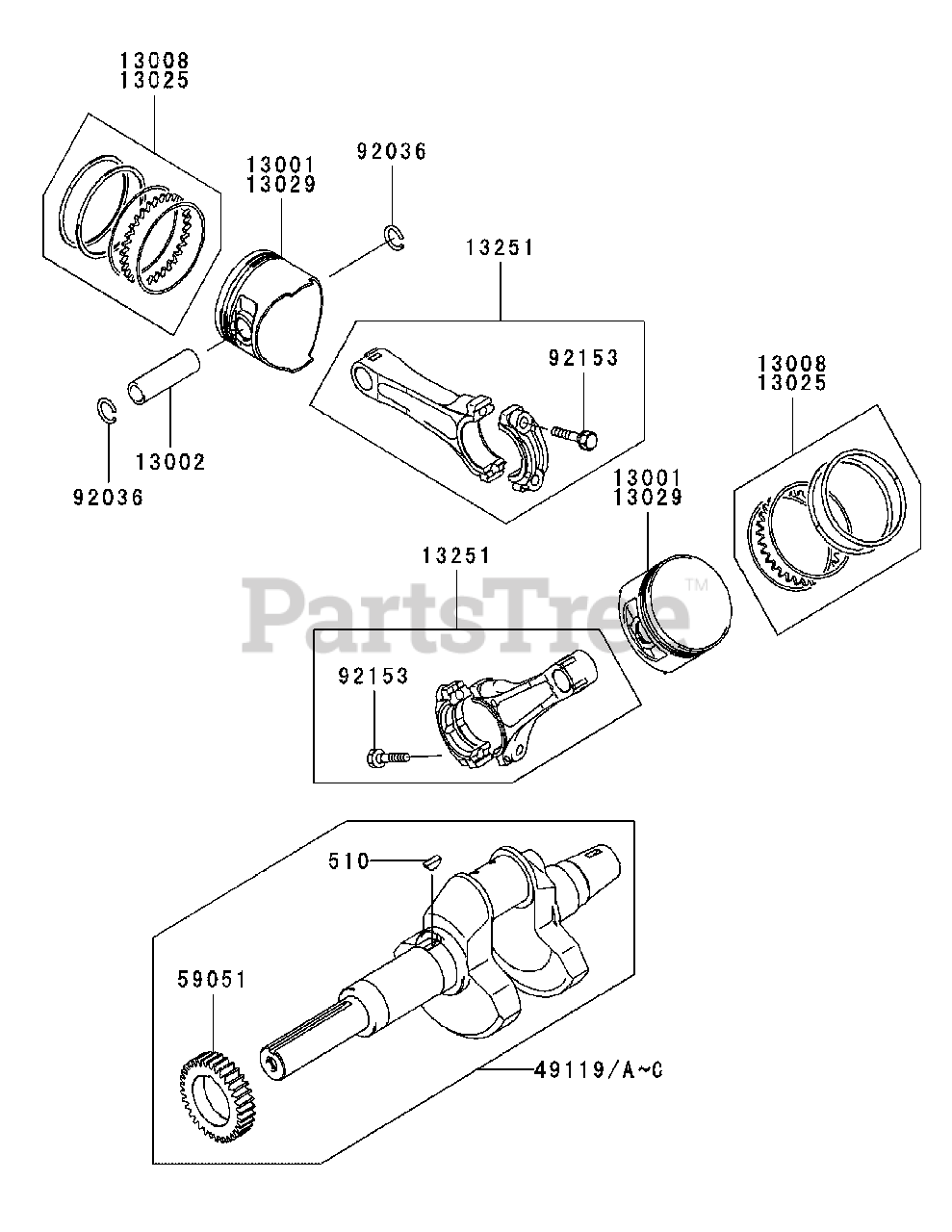

M60-KW LC (53AJ8CT6050) - Cub Cadet 60" Tank Zero-Turn Mower, 29hp Kawasaki FD791D-CS05 Piston & Crankcase Parts Diagram

60" Tank Zero-Turn Mower, 29hp Kawasaki

FD791D-CS05 Piston & Crankcase Parts Diagram

  • Title
13001

Cub Cadet KM-13001-2188

Piston-Engine

$

$

Not available

13002

$10.99

$

Usually ships in 2-5 days

0

13008

Cub Cadet KM-13008-6007

Ring-Set-Piston

$37.99

$

In Stock, Qty 6

0

13025

Cub Cadet KM-13025-2074

Ring-Set-Piston L,0.50

$44.99

$

Usually ships in 2-5 days

0

13029

Cub Cadet KM-13029-2124

Piston-Engine L,0.50

$

$

Not available

13251

Cub Cadet KM-13251-2084

Rod-Assy-Connecting

$

$

Not available

49119

Cub Cadet KM-49119-2226

Crankshaft-Assy

$

$

Not available

59051

Cub Cadet KM-59051-2358

Gear-Spur, 33T

$

$

Not available

92036

$0.99

$

In Stock, Qty 20+

0

92153

$1.99

$

In Stock, Qty 6

0

510

Cub Cadet KM-510A5100

Key-Woodruff

$3.49

$

In Stock, Qty 11

0
