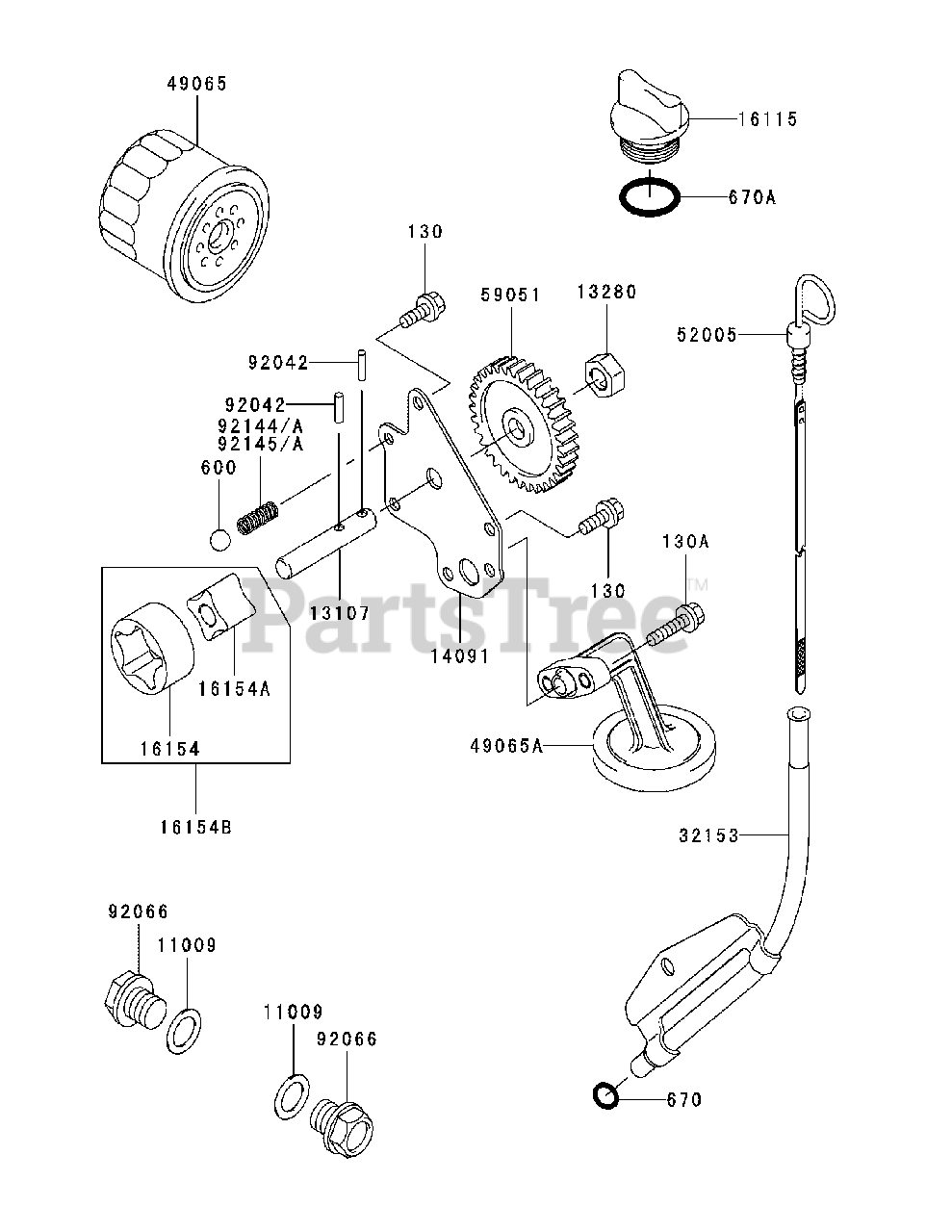

M60-KW LC (53AJ8CT6050) - Cub Cadet 60" Tank Zero-Turn Mower, 29hp Kawasaki FD791D-CS05 Lubrication Equipment Parts Diagram

60" Tank Zero-Turn Mower, 29hp Kawasaki

FD791D-CS05 Lubrication Equipment Parts Diagram

  • Title

11009

Cub Cadet KM-11009-2566

Gasket,Drain Plug

$0.99

$

In Stock, Qty 8

0

13107

Cub Cadet KM-13107-2281

Shaft,Oil Pump

$11.99

$

Usually ships in 2-5 days

0

13280

Cub Cadet KM-13280-2061

Holder,Oil Pump

$6.49

$

Usually ships in 2-5 days

0

14091

Cub Cadet KM-14091-2065

Cover-Oil Pump

$9.49

$

Usually ships in 2-5 days

0

16115

Cub Cadet KM-16115-2126

Cap-Oil Filler
(Superseded to KM-16115-7001)

$2.99

$

In Stock, only 4 left!

0

16154

Cub Cadet KM-16154-1075

Rotor-Pump,Outer

$22.99

$

Usually ships in 2-5 days

0

16154A

Cub Cadet KM-16154-1076

Rotor-Pump,Inner

$22.99

$

Usually ships in 2-5 days

0

16154B

Cub Cadet KM-16154-1079

Rotor-Pump

$29.99

$

In Stock, only 2 left!

0

32153

Cub Cadet KM-32153-20769H

Pipe,Oil Gauge

$

$

Not available

49065

Cub Cadet KM-49065-7010

Filter-Oil
(Superseded to KM-49065-0724)

$18.99

$

In Stock, Qty 20+

0

49065A

Cub Cadet KM-49065-2082

Filter-Oil

$30.99

$

Usually ships in 2-5 days

0

52005

Cub Cadet KM-52005-2132

Gauge,Oil

$26.99

$

Usually ships in 2-5 days

0

59051

Cub Cadet KM-59051-2354

Gear-Spur,33T

$21.99

$

In Stock, only 3 left!

0

92042

Cub Cadet KM-92042-014

Pin

$0.99

$

In Stock, Qty 12

0

92066

Cub Cadet KM-92066-2099

Plug,Drain

$15.99

$

In Stock, only 2 left!

0

92145

Cub Cadet KM-92145-2132

Spring

$0.99

$

In Stock, only 1 left!

0

130

Cub Cadet KM-130BA0616

Bolt-Flanged, 6x16

$1.49

$

In Stock, only 2 left!

0

130A

Cub Cadet KM-130BA0625

Bolt-Flanged, 6x25

$1.49

$

In Stock, Qty 20+

0

600

Cub Cadet KM-600A1300

Ball-Steel, 13/32"

$0.99

$

In Stock, Qty 14

0

670

Cub Cadet KM-670B2010

O-Ring, 10MM

$1.99

$

In Stock, Qty 10

0

670A

Cub Cadet KM-670B3025

O-Ring, 25MM

$1.49

$

In Stock, only 1 left!

0
