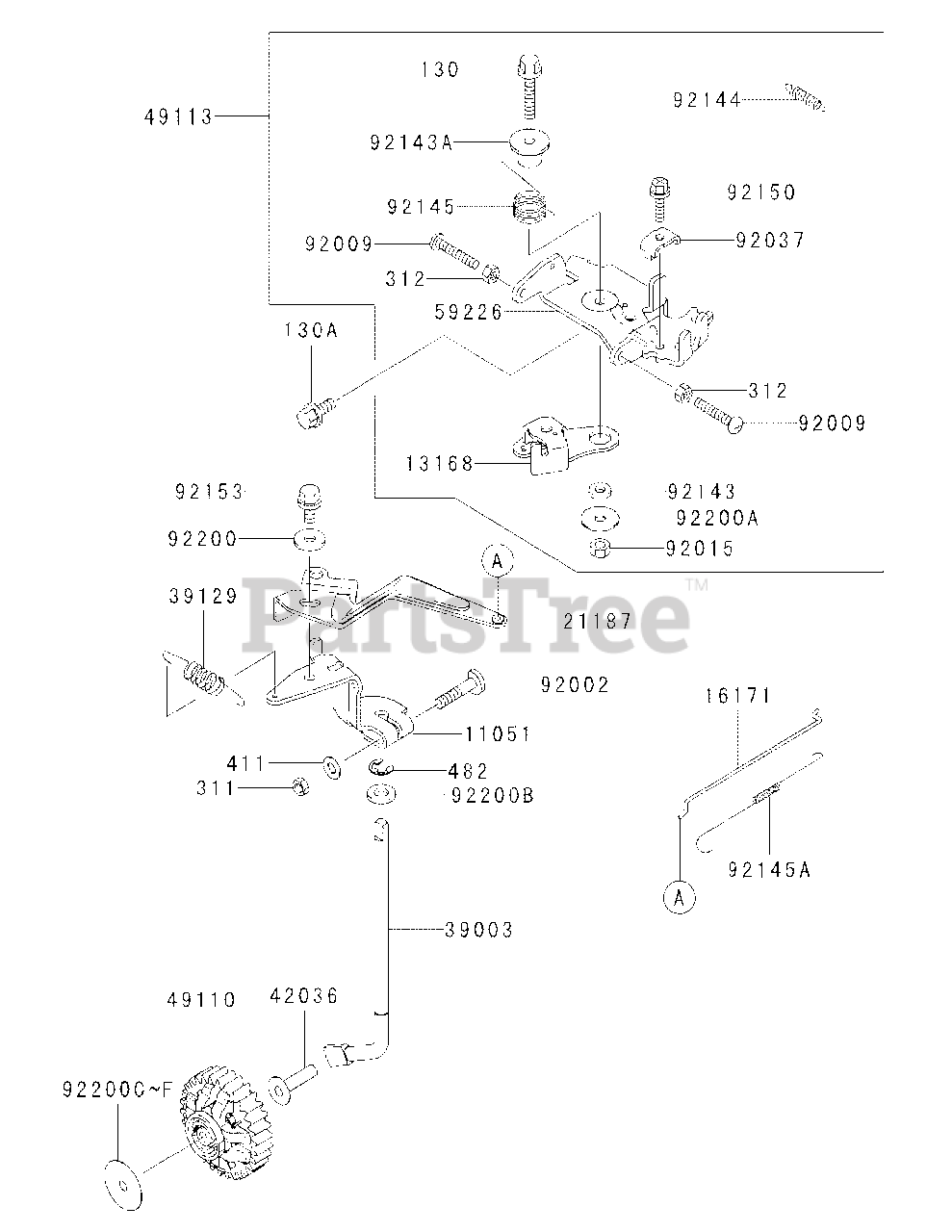

M60-KW LC (53AJ8CT6050) - Cub Cadet 60" Tank Zero-Turn Mower, 29hp Kawasaki FD791D-CS05 Control Equipment Parts Diagram

60" Tank Zero-Turn Mower, 29hp Kawasaki

FD791D-CS05 Control Equipment Parts Diagram

  • Title

11051

Cub Cadet KM-11051-2113

Bracket

$14.99

$

In Stock, only 1 left!

0

13168

Cub Cadet KM-13168-2466

Lever, Throttle

$13.99

$

In Stock, only 1 left!

0

16171

Cub Cadet KM-16171-2094

Link

$4.99

$

Usually ships in 2-5 days

0

21187

Cub Cadet KM-21187-2076

Arm-Assy

$9.49

$

In Stock, only 1 left!

0

39003

Cub Cadet KM-39003-2091

Arm-Pivot

$10.99

$

Usually ships in 2-5 days

0

39129

Cub Cadet KM-39129-2105

Spring-Governor

$4.49

$

Usually ships in 2-5 days

0

42036

Cub Cadet KM-42036-2060

Sleeve

$4.99

$

In Stock, Qty 11

0

49110

Cub Cadet KM-49110-2094

Governor-Assy

$17.99

$

Usually ships in 2-5 days

0

49113

Cub Cadet KM-49113-2173

Panel-Comp-Control

$55.99

$

Usually ships in 2-5 days

0

59226

Cub Cadet KM-59226-2328

Panel-Control

$

$

Not available

92002

Cub Cadet KM-92002-2269

Bolt, 6x28

$1.99

$

In Stock, Qty 6

0

92009

Cub Cadet KM-92009-2381

Screw, 5x30

$0.99

$

In Stock, Qty 5

0

92015

Cub Cadet KM-92015-1339

Nut

$1.99

$

In Stock, only 1 left!

0

92037

Cub Cadet KM-92037-2209

Clamp

$1.49

$

In Stock, only 4 left!

0

92143

Cub Cadet KM-92143-2135

Collar, 6x13x2.3

$0.99

$

In Stock, only 1 left!

0

92143A

Cub Cadet KM-92143-2148

Collar

$1.99

$

In Stock, only 4 left!

0

92144

Cub Cadet KM-92144-2052

Spring

$9.49

$

In Stock, only 1 left!

0

92145

Cub Cadet KM-92145-2058

Spring

$0.99

$

In Stock, Qty 8

0

92145A

Cub Cadet KM-92145-2106

Spring

$2.99

$

Usually ships in 2-5 days

0

92150

Cub Cadet KM-92150-2182

Bolt, 5x18

$0.99

$

In Stock, Qty 10

0

92153

Cub Cadet KM-92153-0009

Bolt, 6x12

$1.99

$

In Stock, Qty 20+

0

92200

Cub Cadet KM-92200-2035

Washer

$0.99

$

In Stock, Qty 8

0

92200A

Cub Cadet KM-92200-2035

Washer, 6.5x22x1.2

$0.99

$

In Stock, Qty 8

0

92200B

Cub Cadet KM-92200-2120

Washer, 8.3x16x2.3

$0.99

$

In Stock, Qty 7

0

92200E

Cub Cadet KM-92200-2152

Washer, 6.2x30x0.5

$0.99

$

In Stock, only 1 left!

0

130

Cub Cadet KM-130G0630

Bolt-Flanged, 6x30

$1.99

$

In Stock, Qty 15

0

130A

Cub Cadet KM-130G0614

Bolt-Flanged, 6x14

$

$

Not available

311

Cub Cadet KM-311AA0600

Nut-Hex, 6mm

$0.99

$

In Stock, Qty 16

0

312

Cub Cadet KM-312B0500

Nut-Hex, 5mm

$

$

Not available

411

Cub Cadet KM-411B0600

Washer-Plain, 6mm
(Superseded to KM-411AA0600)

$4.49

$

In Stock, only 2 left!

0

482

Cub Cadet KM-482J7000

Circlip-Type-E, 7mm

$0.99

$

In Stock, Qty 8

0
