M60-KW LC (53AJ8CT6050) - Cub Cadet 60" Tank Zero-Turn Mower, 29hp Kawasaki FD791D-CS05 Air Filter & Muffler Parts Diagram

60" Tank Zero-Turn Mower, 29hp Kawasaki

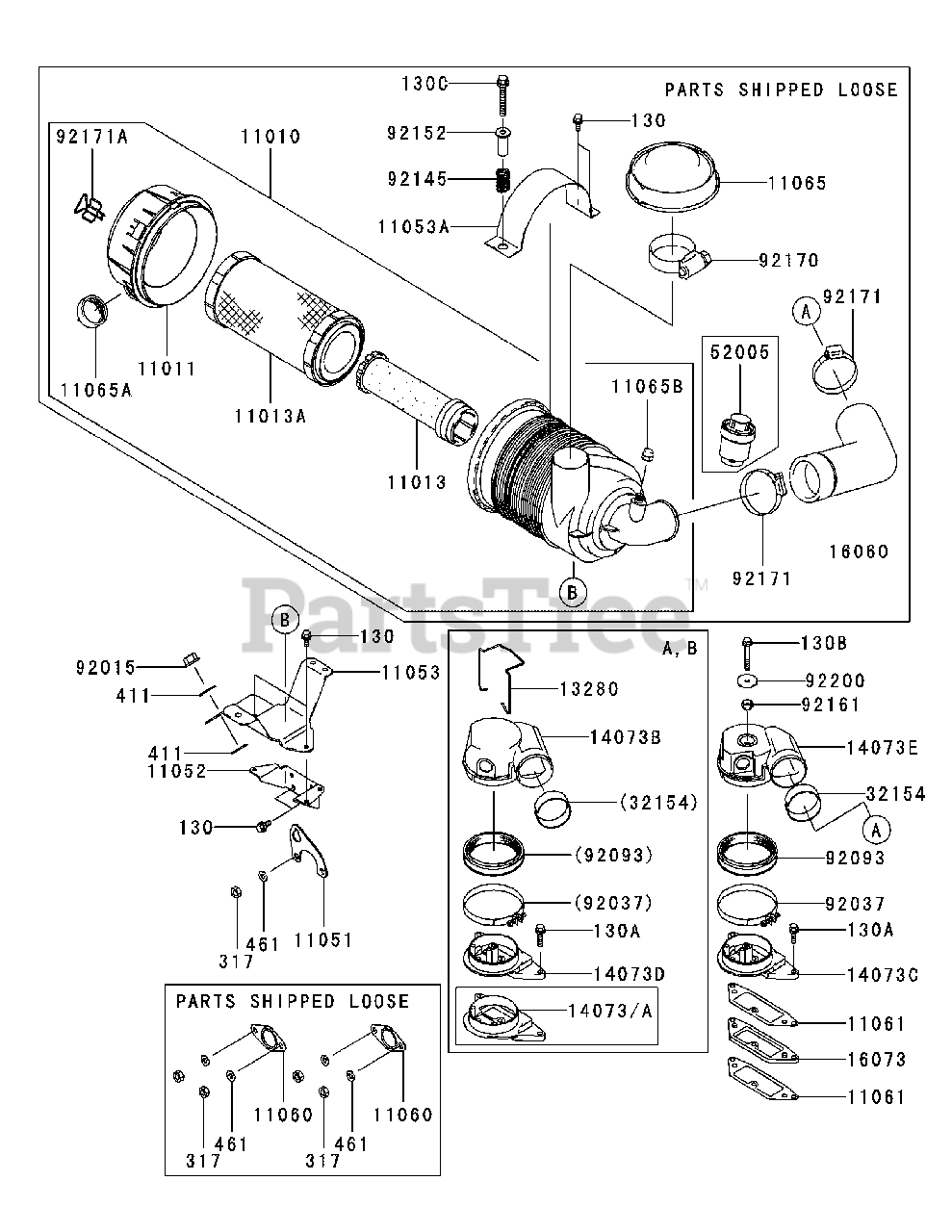

FD791D-CS05 Air Filter & Muffler Parts Diagram

  • Title

11010

Cub Cadet KM-11010-2571

Filter-Assy-Air
(Superseded to KM-11010-7028)

$118.99

$

In Stock, only 2 left!

0

11011

Cub Cadet KM-11011-7014

Case-Air Filter

$54.99

$

In Stock, only 1 left!

0

11013

Cub Cadet KM-11013-7019

Element-Air Filter

$31.99

$

In Stock, only 2 left!

0

11013A

Cub Cadet KM-11013-7020

Element-Air Filter

$28.99

$

In Stock, Qty 14

0

11051

Cub Cadet KM-11051-2088

Bracket

$8.99

$

Usually ships in 2-5 days

0

11052

Cub Cadet KM-11052-2062

Bracket

$15.99

$

Usually ships in 2-5 days

0

11053

Cub Cadet KM-11053-20559H

Bracket, Lower

$

$

Not available

11053A

Cub Cadet KM-11053-20569H

Bracket, Upper

$

$

Not available

11060

Cub Cadet KM-11060-2467

Gasket, Muffler

$6.49

$

In Stock, Qty 20+

0

11061

Cub Cadet KM-11061-2085

Gasket

$5.49

$

In Stock, Qty 10

0

11065

Cub Cadet KM-11065-7025

Cap
(Superseded to KM-11065-1384)

$41.99

$

In Stock, only 3 left!

0

11065A

Cub Cadet KM-11065-7008

Cap

$19.99

$

In Stock, Qty 5

0

11065B

Cub Cadet KM-11065-7009

Cap

$10.99

$

In Stock, only 1 left!

0

14073C

Cub Cadet KM-14073-2084

Duct, Low

$29.99

$

In Stock, only 1 left!

0

14073E

Cub Cadet KM-14073-2086

Duct, Upp

$73.99

$

Usually ships in 2-5 days

0

16060

Cub Cadet KM-16060-2208

Pipe-Intake

$24.99

$

In Stock, only 2 left!

0

16073

Cub Cadet KM-16073-2216

Insulator

$16.99

$

In Stock, only 1 left!

0

32154

Cub Cadet KM-32154-2059

Pipe, Inside Duct

$6.99

$

In Stock, only 1 left!

0

52005

Cub Cadet KM-52005-2152

Guage

$

$

Not available

92015

Cub Cadet KM-92015-1367

Nut

$4.49

$

In Stock, only 2 left!

0

92037

Cub Cadet KM-92037-1654

Clamp

$13.99

$

Usually ships in 2-5 days

0

92093

Cub Cadet KM-92093-2118

Seal

$12.99

$

In Stock, only 1 left!

0

92145

Cub Cadet KM-92145-2120

Spring

$2.49

$

In Stock, only 1 left!

0

92152

Cub Cadet KM-92152-2083

Collar

$12.99

$

In Stock, only 1 left!

0

92161

Cub Cadet KM-92161-2058

Damper

$2.99

$

Usually ships in 2-5 days

0

92170

Cub Cadet KM-92170-2075

Clamp

Note: NLA

$10.99

$

Usually ships in 2-5 days

0

92171

Cub Cadet KM-92171-2076

Clamp

Note: NLA

$

$

Currently unavailable

92171A

Cub Cadet KM-92171-7009

Clamp

$12.99

$

In Stock, Qty 7

0

92200

Cub Cadet KM-92200-2144

Washer

$2.49

$

In Stock, Qty 9

0

130

Cub Cadet KM-130G0614

Bolt-Flanged, 6x14

$

$

Not available

130A

Cub Cadet KM-130BA0625

Bolt-Flanged, 6x25

$1.49

$

In Stock, Qty 20+

0

130B

Cub Cadet KM-130BA0645

Bolt-Flanged, 6x45

$1.49

$

In Stock, Qty 5

0

130C

Cub Cadet KM-130G0855

Bolt-Flanged, 8x55

$

$

Not available

317

Cub Cadet KM-317R0800

Nut-Hex-Small, 8mm

$2.99

$

In Stock, Qty 18

0

411

Cub Cadet KM-411B0600

Washer-Plain, 6mm
(Superseded to KM-411AA0600)

$4.49

$

In Stock, only 2 left!

0

461

Cub Cadet KM-461DA0800

Washer-Spring, 8mm

$0.99

$

In Stock, Qty 20+

0
