M60-KW LC (53AB5GFX750) - Cub Cadet 60" Tank Zero-Turn Mower, 29hp Kawasaki Frame Assembly Parts Diagram

60" Tank Zero-Turn Mower, 29hp Kawasaki

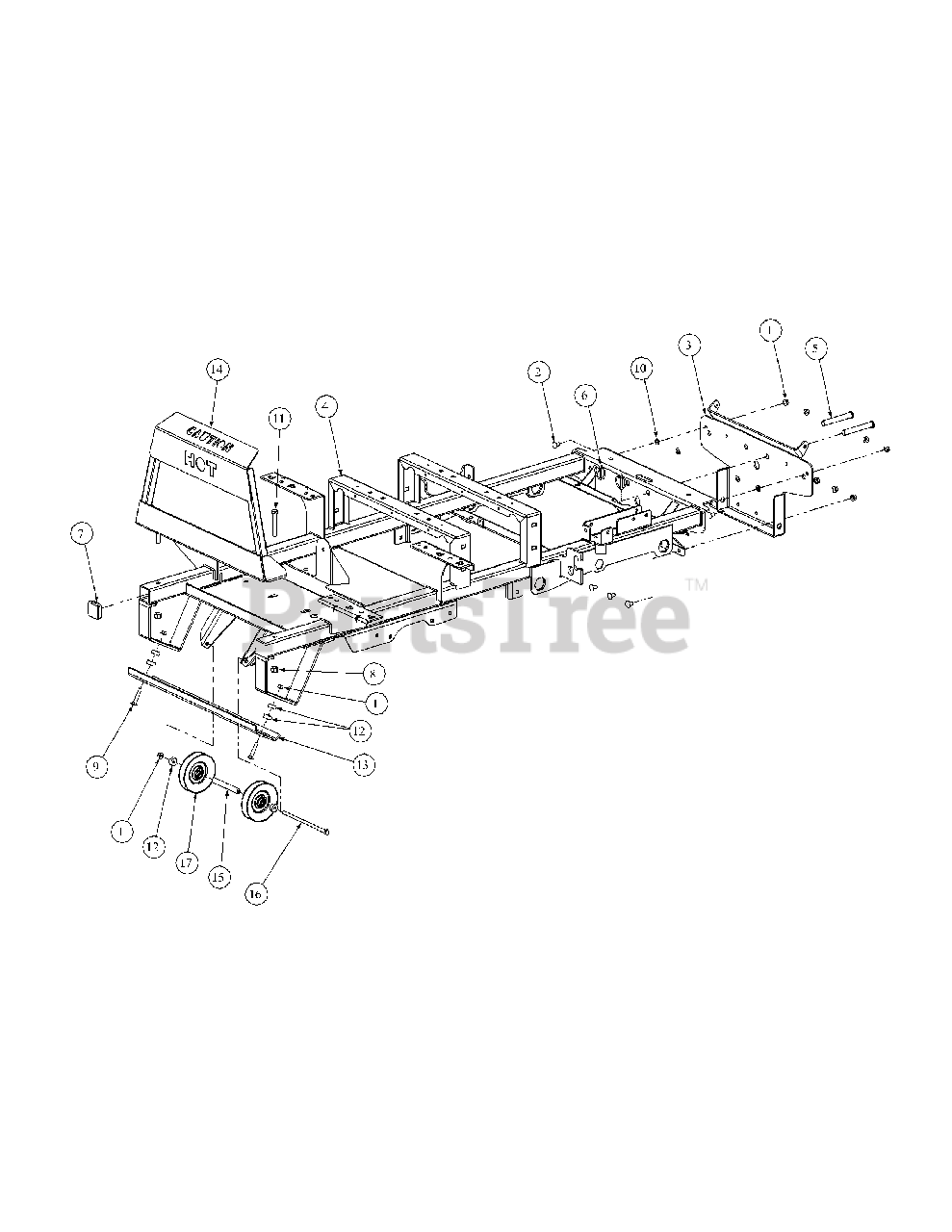

Frame Assembly Parts Diagram

  • Title

1

Cub Cadet 00022560

Hex Nut, 3/8-16 Flange Lock
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

2

Cub Cadet 710-3178

Carriage Bolt, 3/8-16 x .75 Long

$4.49

$

In Stock, Qty 20+

0

3

Cub Cadet 01001713

Bracket Assembly, Frame, Front

$198.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 01009521

Frame Assembly

$

$

Not available

5

Cub Cadet 01003282

Clevis Pin, .625 Dia x 4.375 Long

$12.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 01003993

Linch Pin, 3/16 Dia.
(Superseded to 753-04070)

$9.99

$

In Stock, Qty 20+

0

7

Cub Cadet 01005160

Plug, Square Tube

$10.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 00012428

Lock Nut, Nylon Insert, 1/2-13

$6.99

$

In Stock, only 2 left!

0

9

Cub Cadet 00014270

Carriage Bolt, 3/8-16 x 2.00
(Superseded to 710-04157)

$8.99

$

In Stock, only 1 left!

0

10

Cub Cadet 01008225

Push Retainer, 3/8
(Superseded to 712-0229)

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet 00030046

Hex Head Cap Screw, 1/2-13 x 3.00

$

$

Not available

12

Cub Cadet 750-3119

Spacer, .406 ID x 1.00 OD x .380

$11.99

$

In Stock, only 4 left!

0

13

Cub Cadet 01009607

Guard Bracket

$

$

Not available

14

Cub Cadet 01009612

Muffler Guard Assembly

$

$

Not available

15

Cub Cadet 750-05474

Spacer, .385 ID x .625 OD x 4.89

$18.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 710-3248

Hex Head Cap Screw, 3/8-16 x 8.50

$19.99

$

In Stock, only 3 left!

0

17

Cub Cadet 956-3045

Idler Pulley, 5.06 Dia.
(Superseded to 956-3045A)

$57.99

$

In Stock, Qty 5

0
