M60-KW LC (53AB5GFX750) - Cub Cadet 60" Tank Zero-Turn Mower, 29hp Kawasaki FD791D-AS04 Starter Parts Diagram

60" Tank Zero-Turn Mower, 29hp Kawasaki

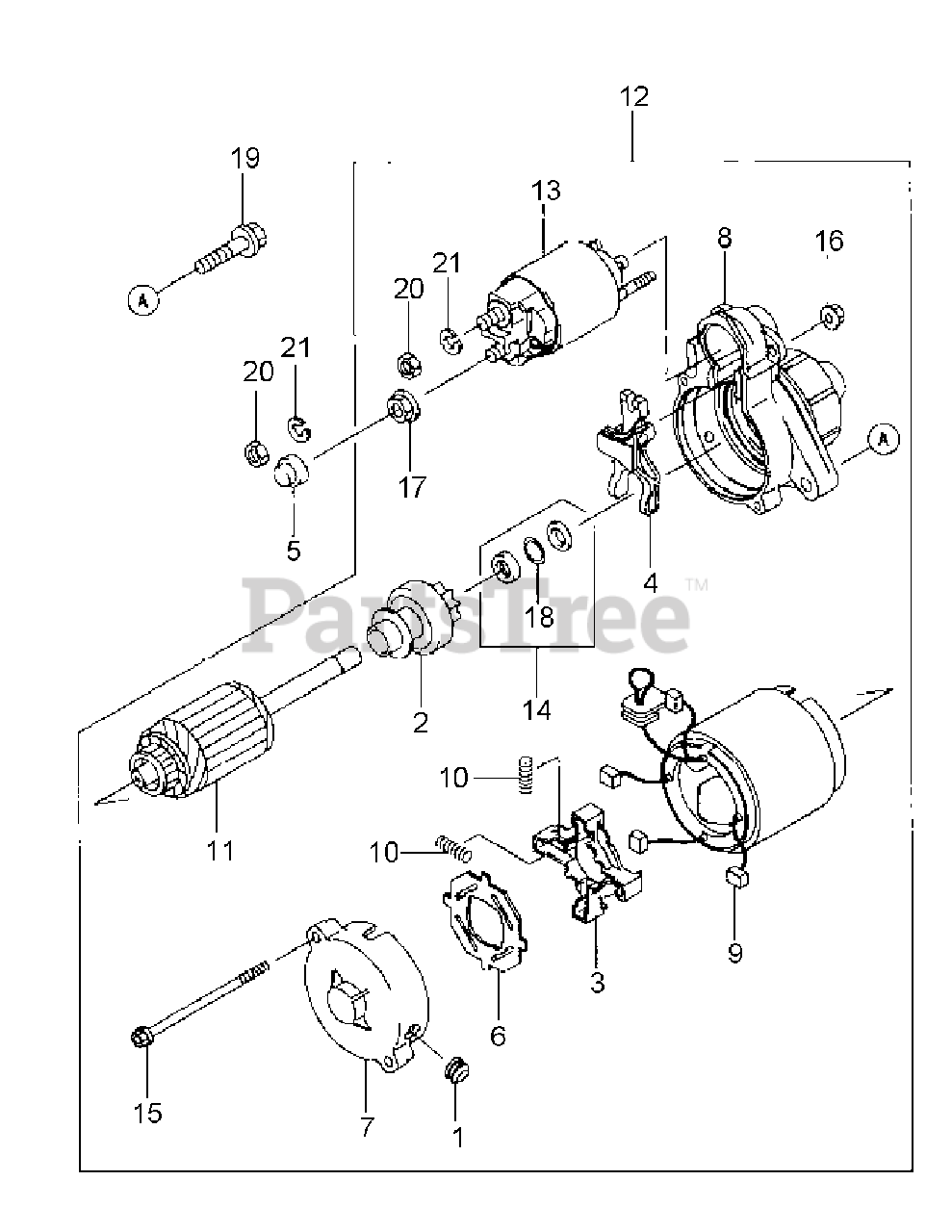

FD791D-AS04 Starter Parts Diagram

  • Title

1

Cub Cadet KM-11012-2226

CAP

$3.99

$

Usually ships in 2-5 days

0

2

Cub Cadet KM-13081-2108

CLUTCH ASSY.

$122.99

$

Usually ships in 2-5 days

0

3

Cub Cadet KM-13091-2068

BRUSH HOLDER

$29.99

$

Usually ships in 2-5 days

0

4

Cub Cadet KM-13168-2131

SHIFT LEVER

$24.99

$

In Stock, only 1 left!

0

5

Cub Cadet KM-14024-2205

COVER

$1.49

$

Usually ships in 2-5 days

0

6

Cub Cadet KM-16073-2098

INSULATOR

$10.99

$

Usually ships in 2-5 days

0

7

Cub Cadet KM-16146-2187

COVER ASSY.

$

$

Not available

8

Cub Cadet KM-16146-2225

COVER ASSY.

$

$

Not available

9

Cub Cadet KM-21039-2059

BRUSH

$15.99

$

In Stock, only 1 left!

0

10

Cub Cadet KM-21040-2052

BRUSH SPRING

$3.99

$

Usually ships in 2-5 days

0

11

Cub Cadet KM-21080-2054

ARMATURE

$

$

Not available

12

Cub Cadet KM-21163-2126

ELECTRIC STARTER
(Superseded to KM-21163-2153)

$670.99

$

Usually ships in 2-5 days

0

13

Cub Cadet KM-27010-7005

SWITCH

$189.99

$

In Stock, Qty 14

0

14

Cub Cadet KM-32085-2097

STOPPER

$15.99

$

Usually ships in 2-5 days

0

15

Cub Cadet KM-92002-2277

BOLT

$13.99

$

In Stock, Qty 5

0

16

Cub Cadet KM-92015-2146

NUT

$1.99

$

Usually ships in 2-5 days

0

17

Cub Cadet KM-92015-2147

NUT

$7.49

$

Usually ships in 2-5 days

0

18

Cub Cadet KM-92033-2081

SNAP RING

$6.99

$

Usually ships in 2-5 days

0

19

Cub Cadet KM-130G0835

FLANGED BOLT

Note: NLA

$

$

Currently unavailable

20

Cub Cadet KM-317B0800

HEX NUT SMALL

$0.99

$

In Stock, Qty 19

0

21

Cub Cadet KM-461DA0800

SPRING WASHER

$0.99

$

In Stock, Qty 20+

0
