M60-KW (53CH5D8X750) - Cub Cadet 60" Tank Zero-Turn Mower, 25hp Kawasaki Hydro Hose and Pump Assembly Parts Diagram

60" Tank Zero-Turn Mower, 25hp Kawasaki

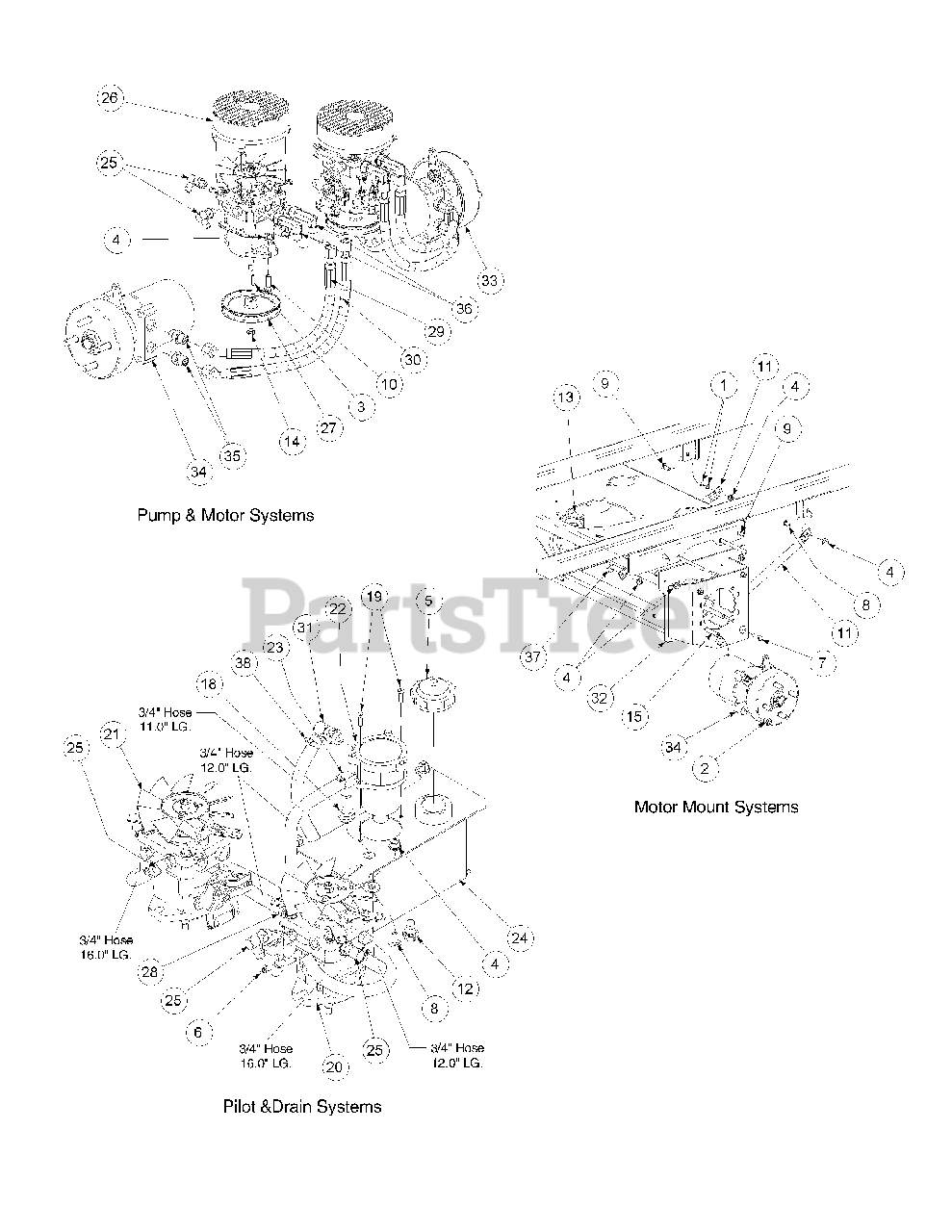

Hydro Hose and Pump Assembly Parts Diagram

  • Title

1

Cub Cadet 936-0169

Washer lock 3/8 zinc
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

2

Cub Cadet 00012428

Washer lock 3/8 zinc

$6.99

$

In Stock, only 2 left!

0

3

Cub Cadet 00020628

Key, 3/16" x 7/8"

$6.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 00022560

Flange Lock Hex Nut, 3/8-16
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 00030261

Cap, Hydro Oil Tank

$36.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 01000216

Hose Clamp

$

$

Not available

7

Cub Cadet 710-3005

Hex Cap Screw, 3/8 -16 x 1.25

$3.99

$

In Stock, Qty 20+

0

8

Cub Cadet 710-3178

Carriage Bolt, 3/8-16 x .75 LG.

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 01000643

Carriage Bolt, 3/8-16 x 1

$5.49

$

In Stock, Qty 7

0

10

Cub Cadet 710-3034

Carriage Screw, 3/8-16 x 1.25

$3.99

$

In Stock, Qty 5

0

11

Cub Cadet 01002593-0637

Strut Frame

$

$

Not available

12

Cub Cadet 738-0940

Oil Pan Drain Plug w/ Seal

$8.49

$

Usually ships in 3-6 days

0

13

Cub Cadet 01006949

Hydro Wheel Motor Backup Plate

$40.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 01007309

Hex Nut, 3/8-24

$5.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 01008449

Socket Head Capscrew, 1/2-13; 6-1/2

$13.99

$

Usually ships in 3-6 days

0

16

Cub Cadet n/a

Fuel Hose, .50 ID x .75 OD (79 inches)

Note: (purchase locally)

$

$

Currently unavailable

17

Cub Cadet 01009906

Carriage Bolt, 3/8-16 x 5.0

$5.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 02000296

Grommet Fitting, .54 ID x .78 OD

$20.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 02000841

Socket Low Head Cap Screw, 1/4-20 x 0.75

$5.49

$

Usually ships in 3-6 days

0

20

Cub Cadet 02000905P

Hydro Pump, BDP-12, RH

$1844.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 01009631P

Kit, Fan
(Superseded to HG-71172)

Note: (not shown)

$36.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 02000906P

Hydro Pump, BDP-12, LH

$1844.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 01009631P

Kit, Fan
(Superseded to HG-71172)

Note: (not shown)

$36.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 02002257

Hydraulic In-Tank Filter includes:

$175.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 02002258

Replacement Filter

Note: (not shown)

$49.99

$

In Stock, Qty 7

0

23

Cub Cadet 02001151

Fitting Elbow Spur, 5/8 x 1/2

$

$

Not available

24

Cub Cadet 02001156

Hydraulic Tank Assembly

$

$

Not available

25

Cub Cadet 02001160

Fitting Elbow, 9/16 x 1/2

$59.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 02001169

Fan Pump Shroud

$35.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 02001172

Hydro Pump Pulley

$90.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 02001175

Tee Fitting, 1/2

$29.99

$

In Stock, only 2 left!

0

29

Cub Cadet 02001178

Short Pressure Hose Assembly

$115.99

$

In Stock, Qty 6

0

30

Cub Cadet 02001179

Long Pressure Hose Assembly

$118.99

$

In Stock, only 2 left!

0

31

Cub Cadet 02001180

Fitting Elbow, 3/4 x 1/2

$

$

Not available

32

Cub Cadet 02001492

Hydro Motor Frame Assembly

$

$

Not available

33

Cub Cadet 02001496P

Hydro Motor, Left Hand Assembly w/ Brake & Drum
(Superseded to 02002967P)

$2201.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 02001497P

Hydro Motor, Right Hand Assembly w/ Brake & Drum

$1429.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 02001715

Adaptor Fitting, 8 x 10
(Superseded to 737P05711)

$15.99

$

In Stock, only 1 left!

0

36

Cub Cadet 02002003

Adaptor Fitting, 8 x 8

$45.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 750-3119

Spacer .406 ID x 1.0 OD

$11.99

$

In Stock, only 4 left!

0

38

Cub Cadet 02002392

Hose Clamp, 1/2

$10.99

$

Usually ships in 3-6 days

0

Cub Cadet 737-04325QT

OIL:RIMULA 15W-40 Lubricant (quarts)

Note: (not shown)

$13.99

$

In Stock, Qty 10

0
