M60-KW (53BI8CT6050) - Cub Cadet 60" Tank Zero-Turn Mower, 31hp Kawasaki (2011) Electrical Assembly Kawasaki Parts Diagram

60" Tank Zero-Turn Mower, 31hp Kawasaki

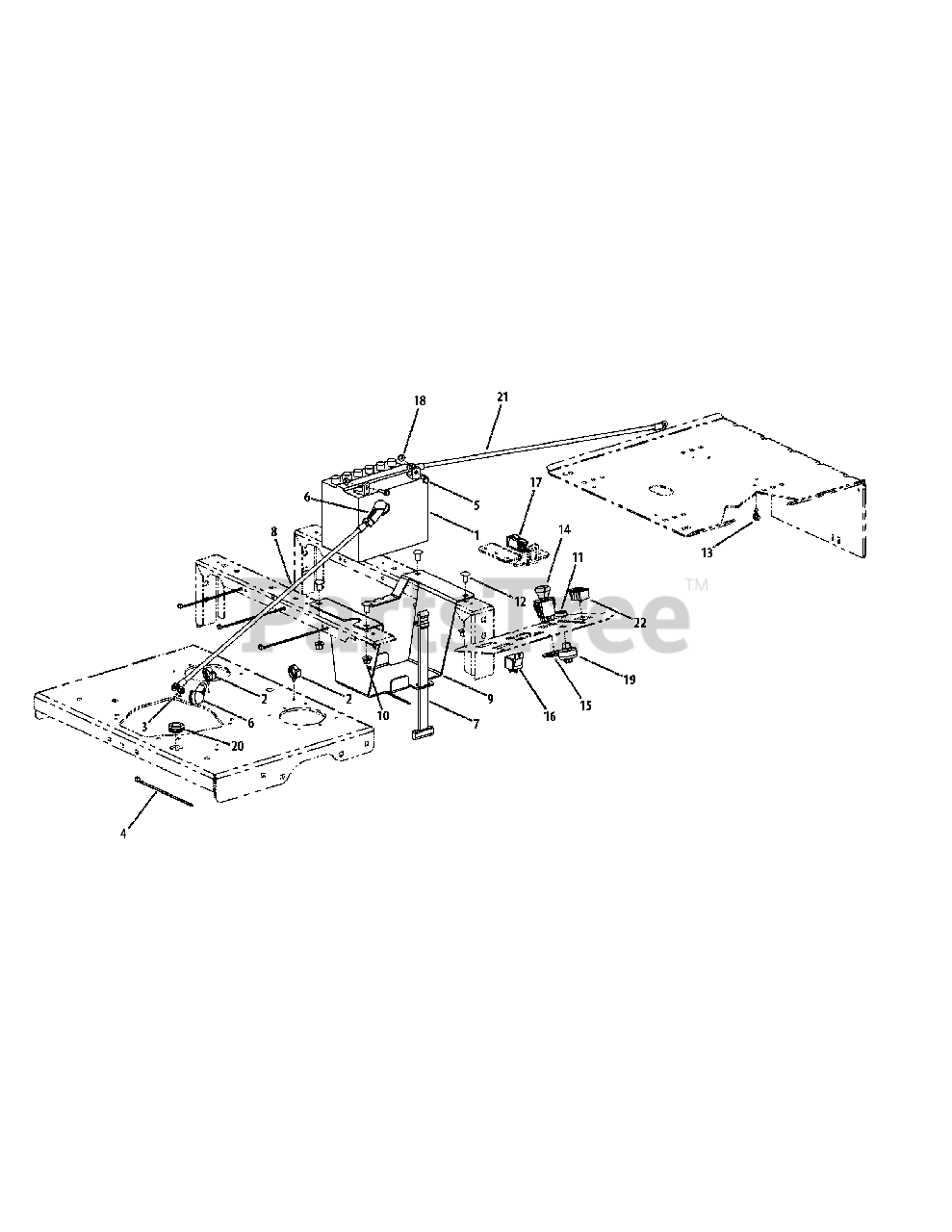

Electrical Assembly Kawasaki Parts Diagram

  • Title
1

Cub Cadet 925-1707D

Battery, 12V 225CCA 30 Min

$

$

Not available

2

Cub Cadet 02003775

Electrical Conduit Clip, 5/8

$

$

Not available

3

Cub Cadet 02003984

Nut, Flange Wiz - 31HP & 37HP
(Superseded to 712-04312)

$3.99

$

In Stock, Qty 20+

0

4

Cub Cadet 725-0157

Tie, Cable, 3/16 x .05 x 7.4"

$3.99

$

In Stock, Qty 20+

0

5

Cub Cadet 710-3015

Screw, Hex, Cap, 1/4-20 x .75

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 00013258

Boot, 1" OD Rubber Battery-PST, Red

$9.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 723-3064

Strap, Battery

$29.99

$

In Stock, only 4 left!

0

8

Cub Cadet 02002059

Cable, Battery Red, 42"

$39.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 02002551-0637

Battery Bracket

$83.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 00022560

Hex Nut, Flange Lock, 3/8-16
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 00032097

Nut, W/Cap, 5/8-32 Ignition
(Superseded to 00032097P)

$

$

Not available

12

Cub Cadet 710-3178

Carriage Bolt, 3/8-16 x .75 Long

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 02003038

Electrical Conduit Clip, 3/8

$

$

Not available

14

Cub Cadet 01002111

Switch, Electric, PTO
(Superseded to 925-1716A)

$73.99

$

In Stock, Qty 13

0

15

Cub Cadet 01009905

Bracket, PTO Switch Retainer

$27.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 01002251

Relay, 12V 40A

$57.99

$

In Stock, only 2 left!

0

17

Cub Cadet 02000024P

Switch, Safety N.O./N.C.
(Superseded to 925-3164A)

$40.99

$

In Stock, Qty 20+

0

18

Cub Cadet 912-3027

Hex Flange Lock Nut, 1/4-20

$4.49

$

In Stock, Qty 20+

0

19

Cub Cadet 01003581P

Switch, Ignition, 6 Pin

$69.99

$

In Stock, Qty 7

0

$10.99

$

In Stock, only 1 left!

0

20

Cub Cadet 01004040

Grommet, .75 ID
(Superseded to 735-04285)

$3.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 01009623

Cable, Battery Black, 34"

$

$

Not available

22

Cub Cadet 925-04893

Meter, Hour
(Superseded to 925-04893A)

$165.99

$

Usually ships in 3-6 days

0

Cub Cadet 02002822

Wire Harness Adaptor

Note: Not shown

$22.99

$

Usually ships in 3-6 days

0

Cub Cadet 02002824

Harness Assembly

Note: Not shown

$210.99

$

Usually ships in 3-6 days

0

Cub Cadet 01001811

Hourmeter, Harness
(Superseded to 929-04195)

Note: Not shown

$8.49

$

Usually ships in 3-6 days

0
