M60-KW (53AI8CT6050) - Cub Cadet 60" Tank Zero-Turn Mower, 31hp Kawasaki (2010) Kawasaki Engine Accessories 31HP Parts Diagram

60" Tank Zero-Turn Mower, 31hp Kawasaki

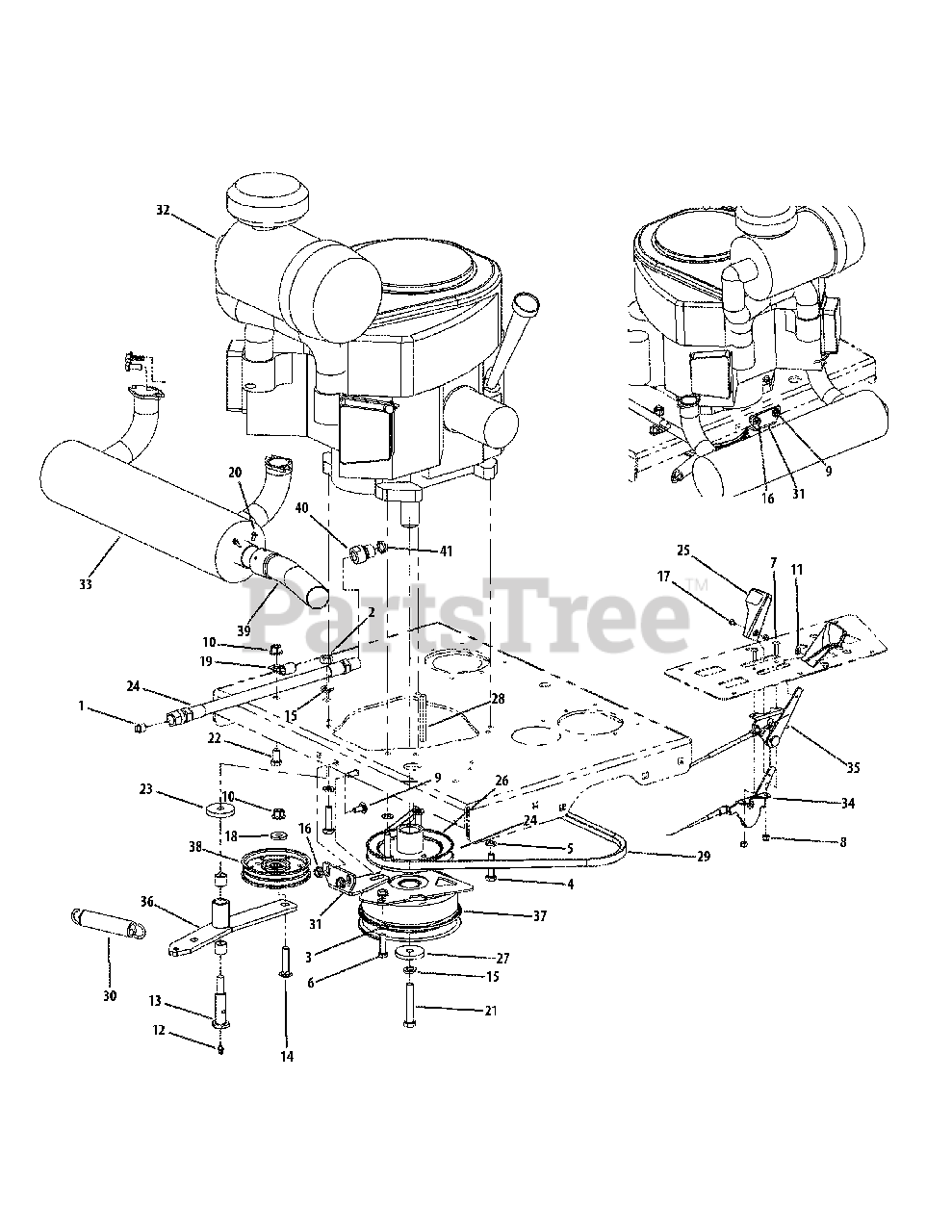

Kawasaki Engine Accessories 31HP Parts Diagram

  • Title

1

Cub Cadet 737-04202

Pipe Plug, 3/8 NPT

$6.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 912-3019

Hex Nut, 7/16-14
(Superseded to 712-3019)

$6.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 00009812

Flat Washer, 5/16

$

$

Not available

4

Cub Cadet 710-0520

HHCS, 3/8-16, 1-1/2

$4.49

$

In Stock, Qty 6

0

5

Cub Cadet 936-0169

Lock Washer, 3/8
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 00013116

HHCS, 5/16-18 x 1-1/4

$5.99

$

In Stock, only 1 left!

0

7

Cub Cadet 00030906

Machine Screw, 10-32 x 5/8

$6.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 00014608

Lock Nut, Nylon Insert, 10-32
(Superseded to 712-05003)

$3.49

$

In Stock, only 3 left!

0

9

Cub Cadet 00020508

Carriage Bolt, 5/16-18 x .75

$6.99

$

In Stock, only 3 left!

0

10

Cub Cadet 00022560

Flange Lock, Hex Nut, 3/8-16
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 00060056

Nut Washer, W/Star, 8-32

$6.99

$

In Stock, only 1 left!

0

12

Cub Cadet 737-04345

Grease Fitting, 1/4-28 x 3/16

$4.99

$

In Stock, Qty 6

0

13

Cub Cadet 01000302

Shoulder Screw, 7/16-14
(Superseded to 738-3102)

$21.99

$

In Stock, only 1 left!

0

14

Cub Cadet 710-0560

Hex Carriage Screw, 3/8-16, 1.75

$6.99

$

In Stock, Qty 12

0

15

Cub Cadet 936-0171

Lock Washer, 7/16
(Superseded to 736-0171)

$4.49

$

In Stock, only 4 left!

0

16

Cub Cadet 712-3004A

Hex Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

17

Cub Cadet 710-3217

Machine Screw, 8-32, .375

$6.99

$

In Stock, Qty 7

0

18

Cub Cadet 736-3052

Flat Washer, .406 ID, 1.0 OD, .105

$4.49

$

In Stock, Qty 20+

0

19

Cub Cadet 726-3008

Clip, Heat Shield Cable

$4.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 910-0224

Screw, #10-16 x 0.500

$3.99

$

In Stock, Qty 20+

0

21

Cub Cadet 01001395

Cap Screw, 7/16-20 x 2.50

$4.99

$

In Stock, only 2 left!

0

22

Cub Cadet 710-0216

Hex Cap Screw, 3/8-16, .750

$4.49

$

In Stock, Qty 16

0

23

Cub Cadet 01003269

Flat Washer, 7/16 ID x 1.75 OD x .25
(Superseded to 736-3082A)

$9.99

$

In Stock, Qty 16

0

24

Cub Cadet 01003283

Oil Drain Hose

$84.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 731-04914

Control Throttle Knob

$13.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 01005104

Pump Drive Pulley
(Superseded to 756-06263)

$92.99

$

In Stock, only 2 left!

0

27

Cub Cadet 736-04131

Flat Washer, 7/16 ID x 1.75 OD x .25

$15.99

$

In Stock, only 1 left!

0

28

Cub Cadet 01005856

Key, 1/4 x 1/4 x 3

$11.99

$

In Stock, only 1 left!

0

29

Cub Cadet 01007015

V Belt, A Section x 50.0
(Superseded to 01007015P)

$36.99

$

In Stock, Qty 10

0

30

Cub Cadet 01009635

Extension Spring, .98 OD x 5.00

$19.99

$

In Stock, only 1 left!

0

31

Cub Cadet 02001992-0637

Retainer Clutch Assembly, Ogura

$30.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 02003200P

31HP Twin Engine, Kawasaki
(Superseded to 952SFX850S11)

$5254.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 02003201

Muffler Accessory, Kawasaki

$399.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 746-04534

Throttle, Control Cable

$

$

Not available

35

Cub Cadet 02003422P

Choke, Control Cable

$131.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 02004075

Engine Idler Arm includes:

$

$

Not available

36

Cub Cadet 01000308

Bearing
(Superseded to 741-04555)

$16.99

$

In Stock, only 2 left!

0

37

Cub Cadet 02004878P

Clutch Brake, 1.125 ID

$862.99

$

Usually ships in 3-6 days

0

38

Cub Cadet 02005077

Flat Pulley with Flanges

$35.99

$

In Stock, Qty 20+

0

39

Cub Cadet 02005082

Muffler Accessory Exhaust Tube

$38.99

$

Usually ships in 3-6 days

0

40

Cub Cadet 02005701

Oil Drain Adapter
(Superseded to KM-59071-7023)

$8.99

$

In Stock, Qty 12

0

41

Cub Cadet KM-670D2016

O-Ring Fitting

$1.99

$

In Stock, Qty 20+

0
