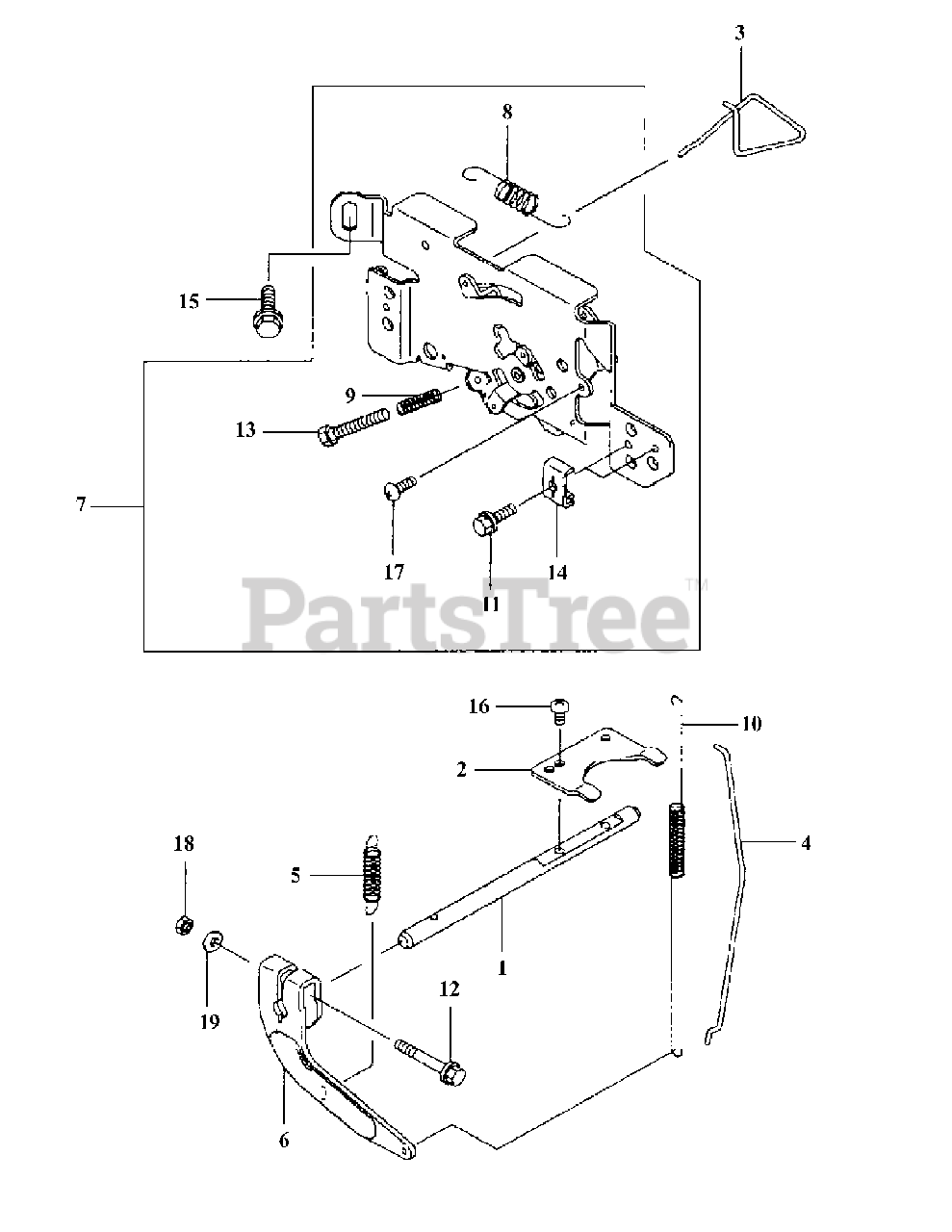

M60-KW (53AB5DCX150) - Cub Cadet 60" Tank Zero-Turn Mower, 25hp Kawasaki FH721V-AS15 Engine Controls Parts Diagram

60" Tank Zero-Turn Mower, 25hp Kawasaki

FH721V-AS15 Engine Controls Parts Diagram

  • Title

1

Cub Cadet KM-13107-7013

Shaft
(Superseded to KM-13107-0751)

$12.99

$

In Stock, Qty 6

0

2

Cub Cadet KM-13271-7032

Plate

$3.99

$

In Stock, Qty 6

0

3

Cub Cadet KM-16169-7006

Link-Choke
(Superseded to KM-16169-0009)

$3.49

$

In Stock, Qty 20+

0

4

Cub Cadet KM-16171-7004

Link
(Superseded to KM-16171-0040)

$2.49

$

In Stock, Qty 20+

0

5

Cub Cadet KM-39129-7004

Spring-Governor

$5.49

$

In Stock, Qty 20+

0

6

Cub Cadet KM-49103-7002

Arm-Governor
(Superseded to KM-49103-7004)

$7.99

$

In Stock, Qty 12

0

7

Cub Cadet KM-49113-7017

Panel-Comp-Control

$27.99

$

In Stock, Qty 10

0

8

Cub Cadet KM-92145-7032

Spring
(Superseded to KM-92145-2180)

$0.99

$

In Stock, Qty 20+

0

9

Cub Cadet KM-92145-7005

Spring

$0.99

$

In Stock, Qty 12

0

10

Cub Cadet KM-92145-7034

Spring

$3.49

$

In Stock, Qty 20+

0

11

Cub Cadet KM-92150-2182

Bolt,5x18

$0.99

$

In Stock, Qty 20+

0

12

Cub Cadet KM-92151-7006

Bolt,6x30

$

$

Not available

13

Cub Cadet KM-92151-7014

Bolt,5x30

$1.49

$

In Stock, Qty 5

0

14

Cub Cadet KM-92170-7001

Clamp

$2.99

$

In Stock, Qty 20+

0

15

Cub Cadet KM-130BA0612

Bolt-Flang

$1.99

$

In Stock, Qty 20+

0

16

Cub Cadet KM-214AA0408

Screw-Pan

$3.99

$

In Stock, Qty 15

0

17

Cub Cadet KM-220B0412

Screw-Pan

$

$

Not available

18

Cub Cadet KM-311AA0600

Nut-Hex

$0.99

$

In Stock, Qty 20+

0

19

Cub Cadet KM-411B0600

Washer-Plain
(Superseded to KM-411AA0600)

$4.49

$

In Stock, Qty 12

0
