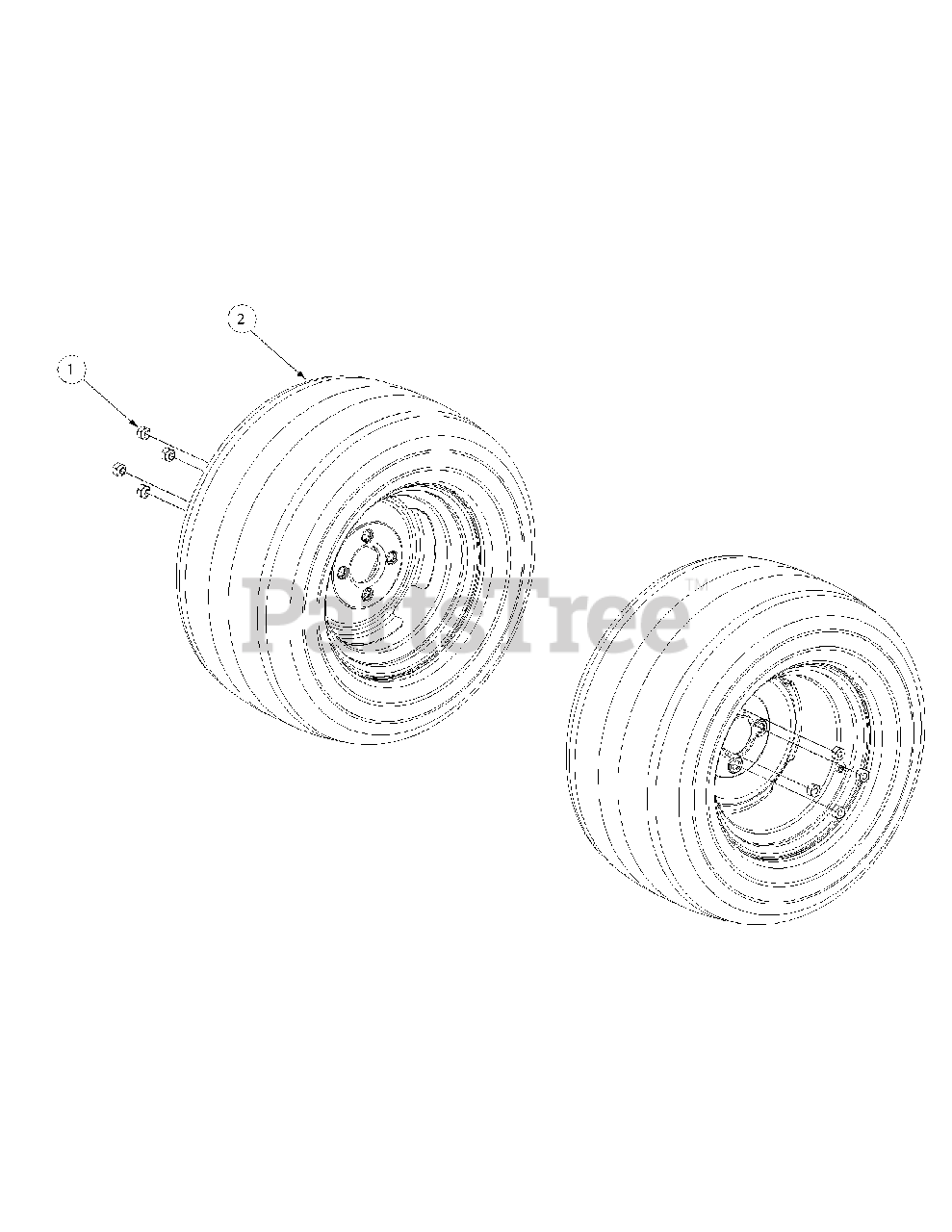

M60-KW (53AB5DBX150) - Cub Cadet 60" Tank Zero-Turn Mower, 23hp Kawasaki Wheel Assembly Parts Diagram

60" Tank Zero-Turn Mower, 23hp Kawasaki

Wheel Assembly Parts Diagram

  • Title

1

Cub Cadet 712-04311

Lug Nut, 1/2-20

Note: replaces 00012187

$3.99

$

In Stock, Qty 20+

0

2

Cub Cadet 01006324

Wheel Assembly, 24 x 12-8, Dr, White:

Note: replaces 01002182

$

$

Not available

Cub Cadet 00073975

Tire, Turf Saver, 24 x 12.00-12, 2-Ply
(Superseded to 734-04631)

Note: replaces 01004473

$167.99

$

In Stock, only 1 left!

0

Cub Cadet 01006371

All Trail, Rear Tire

Note: (not shown)

$

$

Not available

Cub Cadet 01006323

All Trail, Rear Wheel Assembly

Note: (not shown)

$

$

Not available

Cub Cadet 00073975

Turf Master, Rear Tire
(Superseded to 734-04631)

Note: (not shown)

$167.99

$

In Stock, only 1 left!

0

Cub Cadet 01006324

Turf Master, Rear Wheel Assembly

Note: (not shown)

$

$

Not available
