M60-KW (53AB5DBX150) - Cub Cadet 60" Tank Zero-Turn Mower, 23hp Kawasaki Kawasaki Engine Assembly Parts Diagram

60" Tank Zero-Turn Mower, 23hp Kawasaki

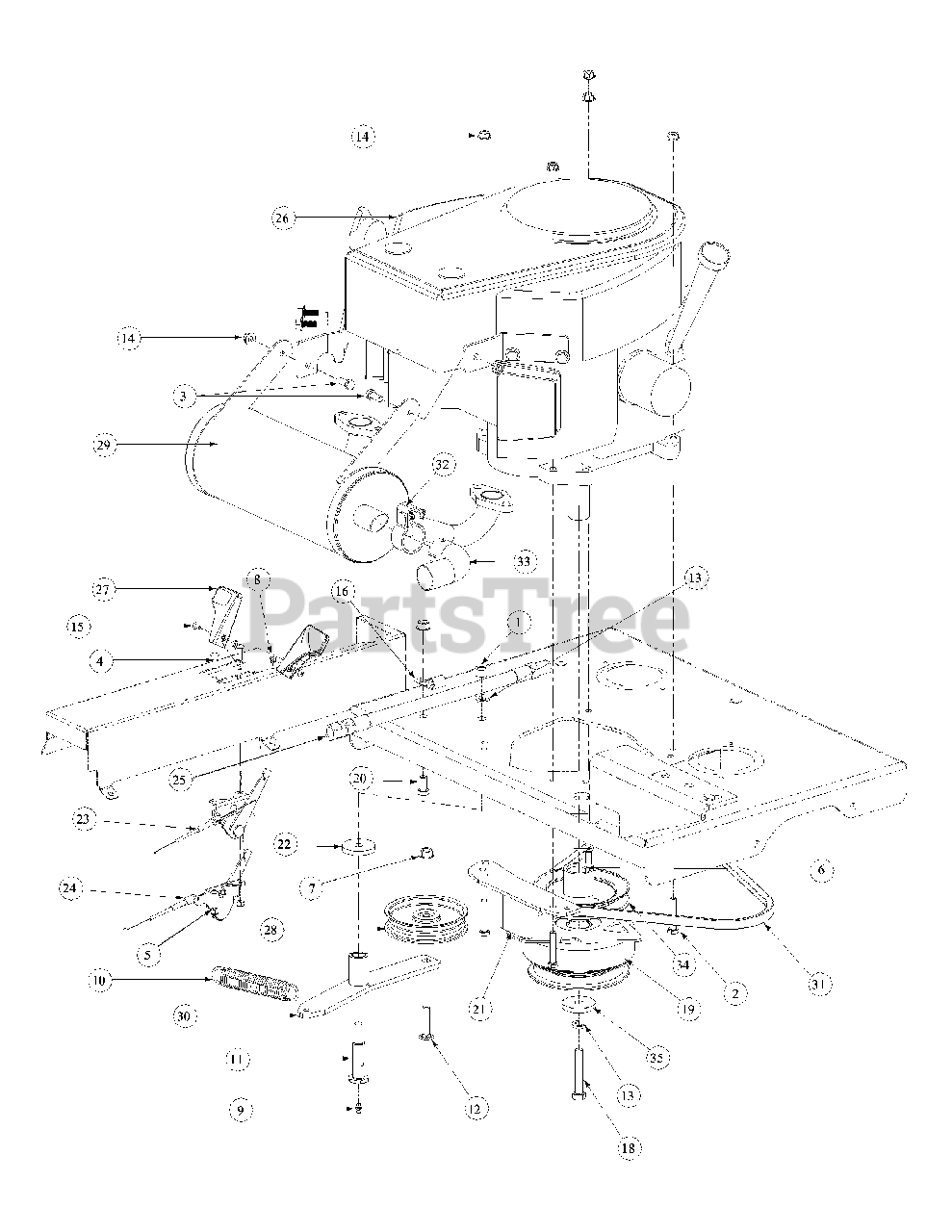

Kawasaki Engine Assembly Parts Diagram

  • Title

1

Cub Cadet 912-3019

Hex Nut, 7/16-14
(Superseded to 712-3019)

$6.99

$

In Stock, only 1 left!

0

2

Cub Cadet 00006129

HHCS, 5/16-18, 1-3/4

$6.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 00013406

Hex Cap Screw, 5/16-18 x 3/4
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 00014602

Round Hd. Machine Screw, 10-32 x 3/4

$

$

Not available

5

Cub Cadet 00014608

Lock Nut, Nylon Insert, 10-32
(Superseded to 712-05003)

$3.49

$

In Stock, only 3 left!

0

6

Cub Cadet 01005856

Key, 1/4 x 1/4 x 3

$11.99

$

In Stock, only 1 left!

0

7

Cub Cadet 00022560

Flange Lock, Hex Nut, 3/8-16
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 00060056

Nut Washer, W/Star, 8-32

$6.99

$

In Stock, only 1 left!

0

9

Cub Cadet 737-04345

Grease Fitting, 1/4-28 x 3/16

$4.99

$

In Stock, Qty 6

0

10

Cub Cadet 01000199

Extension Spring, 1.0 OD x 5.125

$17.99

$

In Stock, only 4 left!

0

11

Cub Cadet 01000302

Shoulder Screw, 7/16-14
(Superseded to 738-3102)

$21.99

$

In Stock, only 1 left!

0

12

Cub Cadet 710-0560

Hex Carriage Screw, 3/8-16, 1.75

$6.99

$

In Stock, Qty 11

0

13

Cub Cadet 936-0171

Lock Washer, 7/16
(Superseded to 736-0171)

$4.49

$

In Stock, Qty 5

0

14

Cub Cadet 712-3004A

Hexflange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

15

Cub Cadet 710-3217

Machine Screw, 8-32, .375

$6.99

$

In Stock, Qty 7

0

16

Cub Cadet 726-3008

Clip, Heat Shield Cable

$4.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 01001395

Capscrew, 7/16-20 x 2.50

$4.99

$

In Stock, only 2 left!

0

19

Cub Cadet 01001979P

Clutch Brake, 1.125 ID

$988.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 710-0216

Hex Cap Screw, 3/8-16, .750

$4.49

$

In Stock, Qty 14

0

21

Cub Cadet 01006456

Retainer Clutch Assembly, Ogura

$

$

Not available

22

Cub Cadet 01003269

Flat Washer, 7/16 ID x 1.75 OD x .25
(Superseded to 736-3082A)

$9.99

$

In Stock, Qty 16

0

23

Cub Cadet 01003271P

Choke, Control Cable, 43.0

$

$

Not available

24

Cub Cadet 01003272P

Throttle, Control Cable, 39.0

$43.99

$

In Stock, only 1 left!

0

25

Cub Cadet 01003283

Oil Drain Hose

$84.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 01008519P

19HP Twin Engine, Kawasaki
(Superseded to KM-FH601V-GS01S)

$

$

Not available

26

Cub Cadet 01003615

23HP Kawasaki Engine

Note: NLA

$

$

Not available

27

Cub Cadet 731-04914

Control Throttle Knob

$13.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 02005077

Flat Pulley with Flanges

$35.99

$

In Stock, Qty 20+

0

29

Cub Cadet 01009299

Muffler Accessory, Kawasaki
(Superseded to 01009299P)

$

$

Not available

30

Cub Cadet 01005006

Engine Idler Arm Assembly

$120.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 01000308

Bearing
(Superseded to 741-04555)

Note: (not shown)

$16.99

$

In Stock, Qty 18

0

31

Cub Cadet 01005010

V Belt, A Section x .47.3
(Superseded to 01005010P)

$66.99

$

In Stock, only 2 left!

0

32

Cub Cadet 01005084

Tube Clamp, 1.375

$

$

Not available

33

Cub Cadet 01005085

Muffler Accessory Exhaust Tube

$

$

Not available

34

Cub Cadet 01005104

Pump Drive Pulley
(Superseded to 756-06263)

$92.99

$

In Stock, only 1 left!

0

35

Cub Cadet 736-04131

Flat Washer, 7/16 ID x 1.75 OD x .25

$15.99

$

In Stock, only 1 left!

0
