M60-KW (53AB5DBX150) - Cub Cadet 60" Tank Zero-Turn Mower, 23hp Kawasaki Floor Panel Assembly Parts Diagram

60" Tank Zero-Turn Mower, 23hp Kawasaki

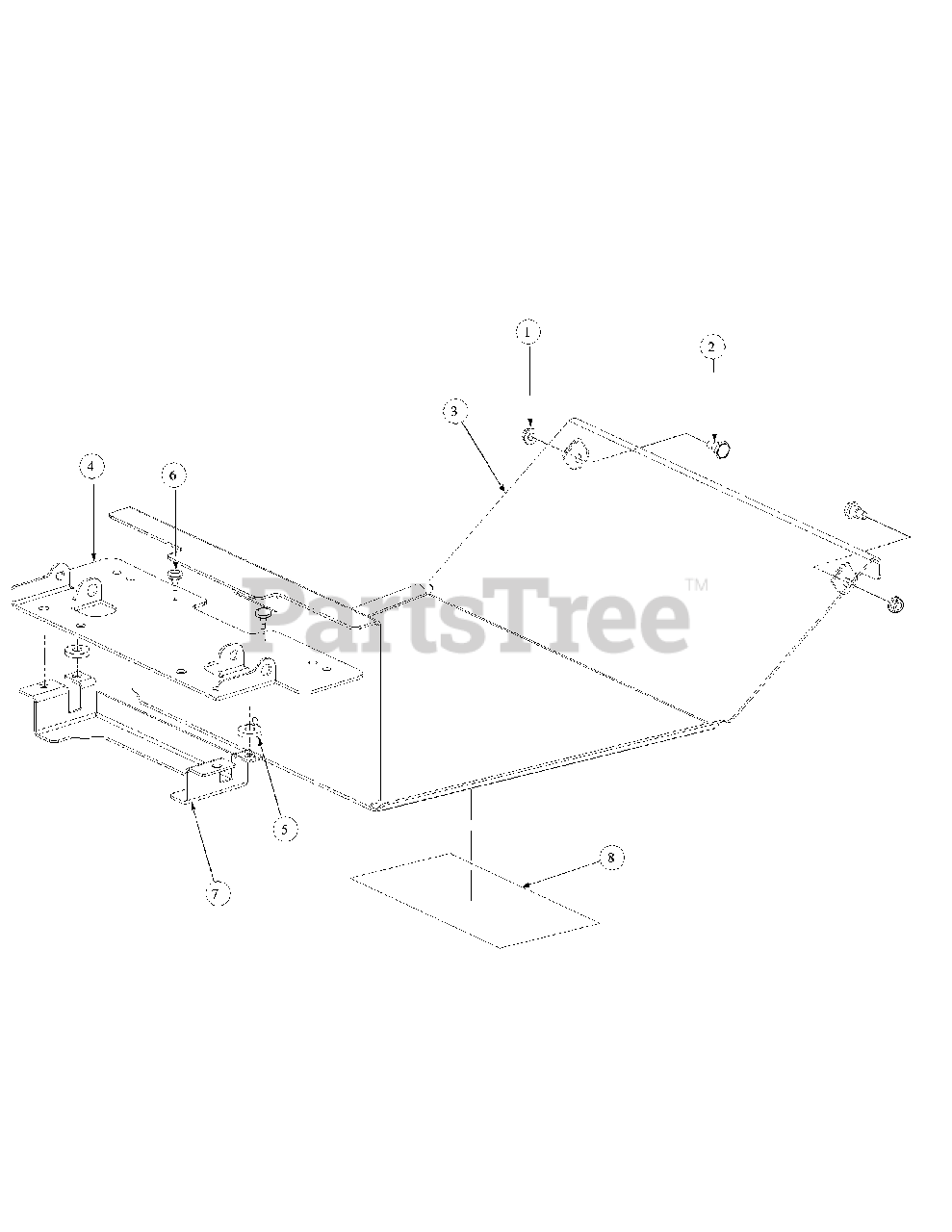

Floor Panel Assembly Parts Diagram

  • Title

1

Cub Cadet 712-3004A

Lock Nut, Hex Flange 5/16-18

$3.99

$

In Stock, Qty 20+

0

2

Cub Cadet 938-0141

Shoulder Screw, .435 x .350, 5/16-18

$7.49

$

In Stock, Qty 7

0

3

Cub Cadet 01005457

Floor Assembly Panel

$

$

Not available

4

Cub Cadet 01002656-0637

Panel Seat

$

$

Not available

5

Cub Cadet 00083192

Washer
(Superseded to 736-0258)

$4.49

$

In Stock, only 4 left!

0

6

Cub Cadet 935-0199A

Rubber Bumper, .62 OD x .22 Thick
(Superseded to 735-0199A)

$7.99

$

In Stock, only 2 left!

0

7

Cub Cadet 01004727-0637

Support, Seat Bracket

$

$

Not available

8

Cub Cadet 01004992

Label, Belt Routing and Lubrication

$24.99

$

In Stock, only 3 left!

0
