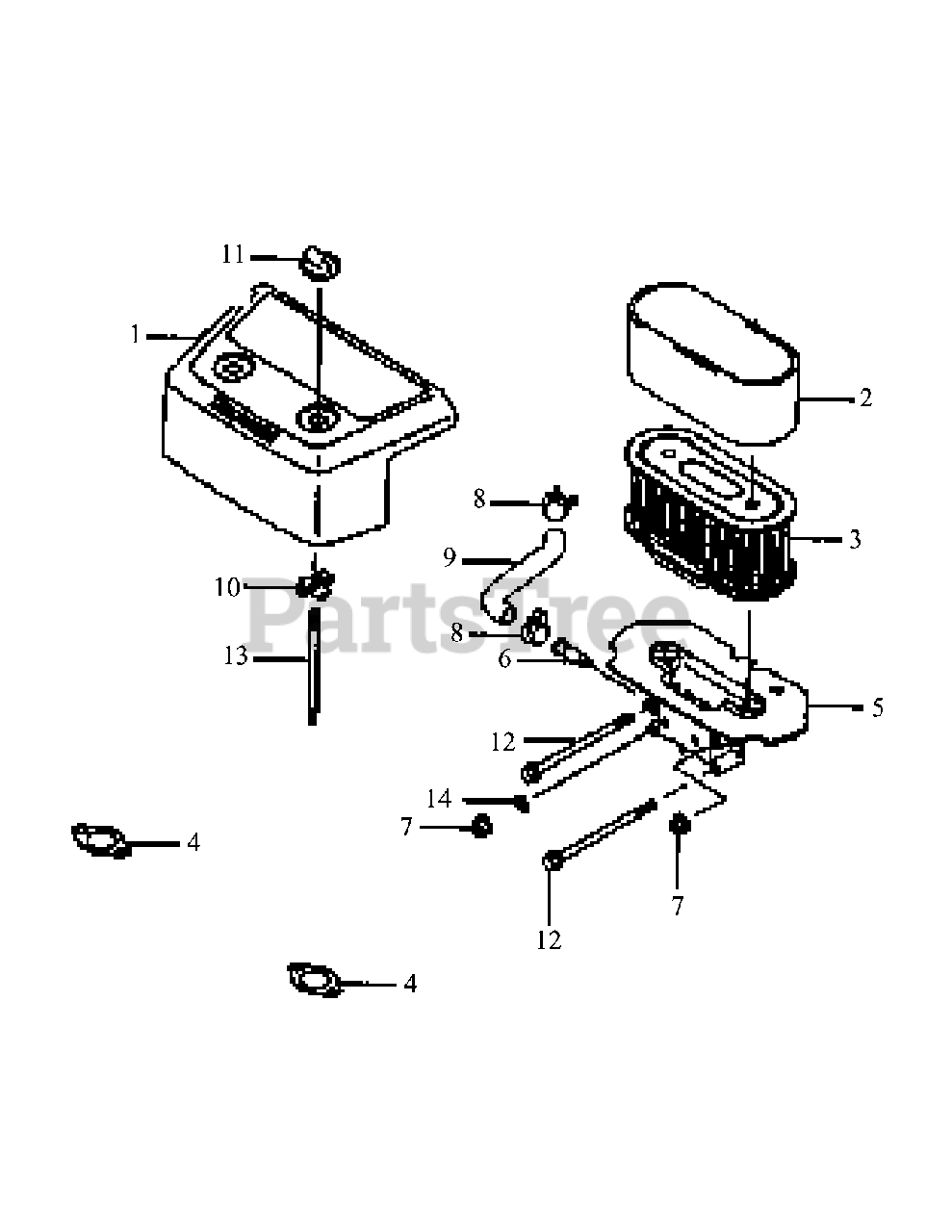

M60-KW (53AB5DBX150) - Cub Cadet 60" Tank Zero-Turn Mower, 23hp Kawasaki FH680V-AS01 Air Filter Parts Diagram

60" Tank Zero-Turn Mower, 23hp Kawasaki

FH680V-AS01 Air Filter Parts Diagram

  • Title

1

Cub Cadet KM-11011-6001

Case-Air Cleaner

$26.99

$

In Stock, Qty 16

0

2

Cub Cadet KM-11013-7009

Element-Precleaner

$7.49

$

In Stock, Qty 20+

0

3

Cub Cadet KM-11013-7024

Element-Air Cleaner

$24.99

$

In Stock, Qty 20+

0

4

Cub Cadet KM-11060-7016

Gasket-Muffler

$2.49

$

In Stock, Qty 20+

0

5

Cub Cadet KM-16060-7001

Pipe Intake

$41.99

$

Usually ships in 2-5 days

0

6

Cub Cadet KM-42036-7002

Sleeve

$2.49

$

Usually ships in 2-5 days

0

7

Cub Cadet KM-92015-1367

Nut

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet KM-92171-7013

Clamp
(Superseded to KM-92171-7003)

$0.99

$

Usually ships in 2-5 days

0

9

Cub Cadet KM-92191-7006

Tube

$

$

Not available

10

Cub Cadet KM-92210-7004

Nut

$3.49

$

In Stock, Qty 20+

0

11

Cub Cadet KM-11011-6001

Nut

$26.99

$

In Stock, Qty 16

0

12

Cub Cadet KM-130AA06105

Bolt-Flange

$2.49

$

In Stock, Qty 7

0

13

Cub Cadet KM-172BA0690

Bolt-Stud

$2.99

$

In Stock, Qty 12

0

14

Cub Cadet KM-411B0600

Washer-Plain
(Superseded to KM-411AA0600)

$4.49

$

In Stock, Qty 12

0
