M60-KW (53AB5D8X750) - Cub Cadet 60" Tank Zero-Turn Mower, 25hp Kawasaki Control Assembly Parts Diagram

60" Tank Zero-Turn Mower, 25hp Kawasaki

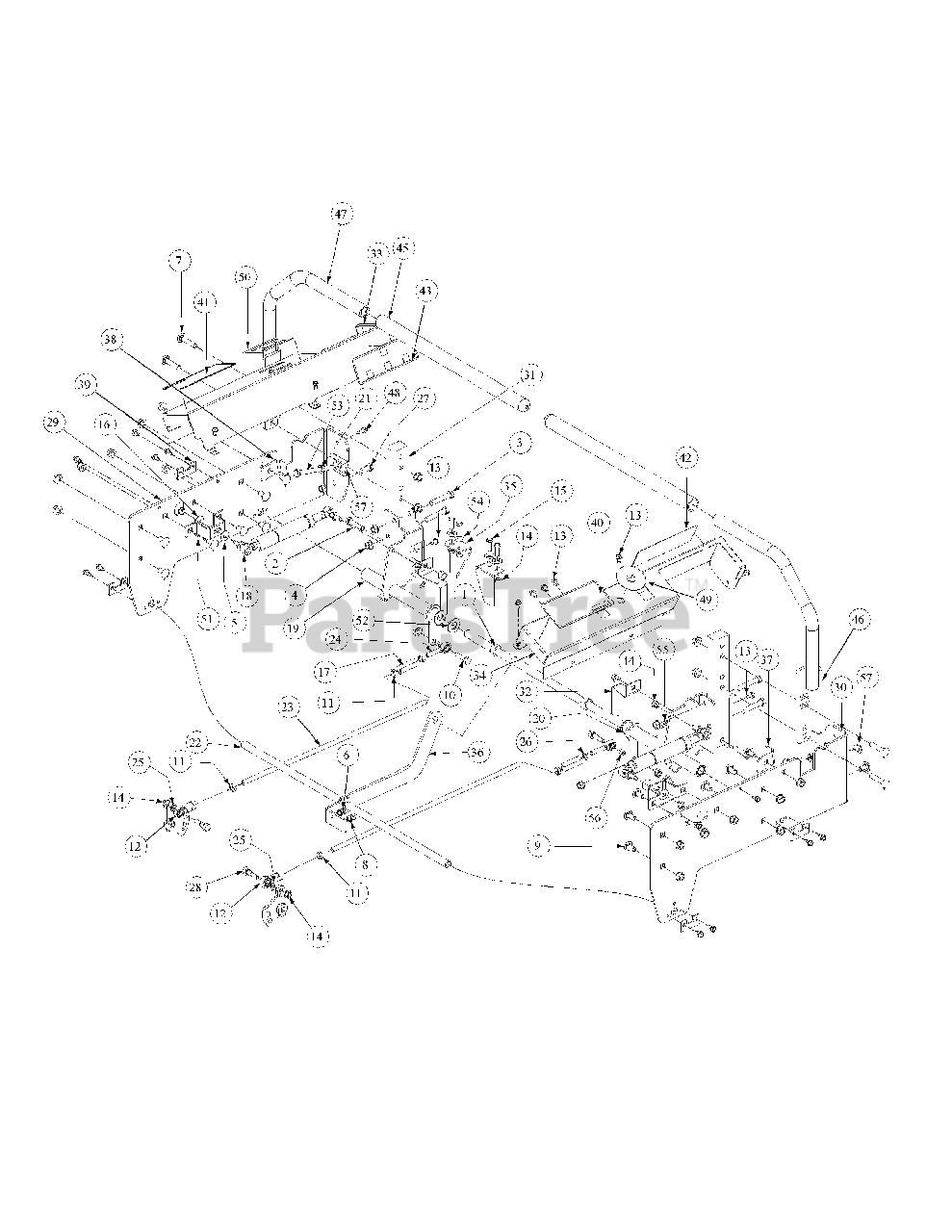

Control Assembly Parts Diagram

  • Title

1

Cub Cadet 01006350

Shaft Collar

$24.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 00010980

HHCS, 3/8-16, 2.00

$6.49

$

Usually ships in 3-6 days

0

3

Cub Cadet 00011861

HHCS, 3/8-16, 2.25
(Superseded to 710-0859)

$6.99

$

In Stock, Qty 16

0

4

Cub Cadet 00022560

Hex Nut, 3/8-16, Lock Flange
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 01005851

External Washer, 3/8
(Superseded to 736-0148)

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 00013131

HHCS, 1/4-20, .750

$6.49

$

In Stock, only 1 left!

0

7

Cub Cadet 710-0560

Hex Carriage Screw, 3/8-16, 1.75

$6.99

$

In Stock, Qty 11

0

8

Cub Cadet 936-0329

Lock Washer, 1/4 Zinc

$4.49

$

In Stock, Qty 11

0

9

Cub Cadet 710-3178

Carriage Bolt, 3/8-16 x .75

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 00008495

Capscrew, 3/8-16 x 1-3/4

$6.99

$

In Stock, Qty 8

0

11

Cub Cadet 912-3001

Hex Jam Nut, 3/8-24

$6.99

$

In Stock, Qty 17

0

12

Cub Cadet 723-04080

B/Joint, 3/8-24, Right Hand Female

$41.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 710-0599

Screw, TT, 1/4-20, 0.5, Hex Index Washer

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 712-3004A

Nut, Lock, Hex Flange, 5/16-18

$3.99

$

In Stock, Qty 20+

0

15

Cub Cadet 00013406

Hex, Cap Screw, 5/16-18 x 3/4
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

16

Cub Cadet 936-0425

Belle Washer, .325 x .930 x .045
(Superseded to 736-0425)

$

$

Not available

17

Cub Cadet 01007734

Turnbuckle

$31.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 01001727

Cylinder Return to Neutral

$265.99

$

In Stock, Qty 7

0

19

Cub Cadet 01003044

Hub Assy, Control LH Bearing
(Superseded to 01003044P)

$

$

Not available

19

Cub Cadet 01004265

Bearings

Note: (not shown)

$20.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 01003045

Hub Assy, Control RH Bearing
(Superseded to 01003045P)

$

$

Not available

20

Cub Cadet 01004265

Bearings

Note: (not shown)

$20.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 01002511

Nut, 3/8-16, Jam

$5.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 01008524

Shaft Control Brake Steering

$67.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 01008518

Rod Connector 3/8 OD x 14.25

$

$

Not available

24

Cub Cadet 01008367

B/Joint, 3/8-24, Left Hand Female

$46.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 00012168

5/16, Lock Washer

$

$

Not available

26

Cub Cadet 01002986

Nut, 3/8-24, Jam, LH Third

$6.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 00013092

HHCS, 5/16-18 x 1.0
(Superseded to 710-0376)

$3.99

$

In Stock, Qty 20+

0

28

Cub Cadet 01002988

Screw, Shoulder Control Rod
(Superseded to 738-05006)

$9.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 01005769

Side Panel, Control, Left

$

$

Not available

30

Cub Cadet 01003005-0637

Side Panel, Control, Right

$

$

Not available

31

Cub Cadet 01003009

Mounting Handle

$

$

Not available

32

Cub Cadet 01003011

Lever, Safety Switch

$37.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 01004889

Control Panel, LH
(Superseded to 01003099-4021)

$

$

Not available

34

Cub Cadet 01004890

Control Panel, RH
(Superseded to 01006343-4021)

$111.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 01003114-0637

Switch Mounting Bracket, Lapbar

$31.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 01001968

Link Mounting Control Shaft, Bracket

$

$

Not available

37

Cub Cadet 01005771

Stop, RH

$

$

Not available

38

Cub Cadet 01005772

Stop, LH

$

$

Not available

39

Cub Cadet 01003591

Holder Shaft, Park Brake

$34.99

$

In Stock, only 1 left!

0

40

Cub Cadet 01003449

Decal , Right Hand Console

$32.99

$

Usually ships in 3-6 days

0

41

Cub Cadet 01003450

Decal, Left Hand Console

$22.99

$

Usually ships in 3-6 days

0

42

Cub Cadet 01003451

Decal Right Hand Control

$

$

Not available

43

Cub Cadet 01003452

Decal, Left Hand Control

$28.99

$

Usually ships in 3-6 days

0

44

Cub Cadet 01003561

Nut, Hex, Center Lock, M8

$

$

Not available

45

Cub Cadet 01003715

Grip, 1.0

$

$

Not available

46

Cub Cadet 01001615

Lapbar, Weldment, Right Handle

$

$

Not available

47

Cub Cadet 01003729

Lapbar, Weldment, Left Handle

$

$

Not available

48

Cub Cadet 710-0642

Screw, TT, 1/4-20, 0.75, Hex Index Washer

$4.49

$

In Stock, Qty 20+

0

49

Cub Cadet 01003857

Label, Ignition, 2.5 Diameter

$

$

Not available

50

Cub Cadet 01003858

Label, Control, Throttle and Choke

$

$

Not available

50

Cub Cadet 01003858

Label, Control, Throttle and Choke

$

$

Not available

51

Cub Cadet 01004000-0637

Bracket Assembly, Mount Dampener

$

$

Not available

52

Cub Cadet 01004003

Flat Washer, 5/8 Nylon
(Superseded to 736-04602)

$3.99

$

In Stock, Qty 20+

0

53

Cub Cadet 01004127

HHCS, 3/8-16, 3.00
(Superseded to 710-0521)

$5.49

$

In Stock, Qty 11

0

54

Cub Cadet 00009812

Flat Washer, 5/16

$

$

Not available

55

Cub Cadet 737-3004

Grease Fitting, 90 degree

$11.99

$

In Stock, Qty 6

0

56

Cub Cadet 01007312

Spacer, .385ID x .625 OD x >50 Lg

$22.99

$

Usually ships in 3-6 days

0

57

Cub Cadet 01003947

U-Nut, 3/8-16, .75

$7.49

$

Usually ships in 3-6 days

0
