M60-KW (53AB5D8X150) - Cub Cadet 60" Tank Zero-Turn Mower, 25hp Kawasaki (2003 1/2) Lift Assembly Parts Diagram

60" Tank Zero-Turn Mower, 25hp Kawasaki

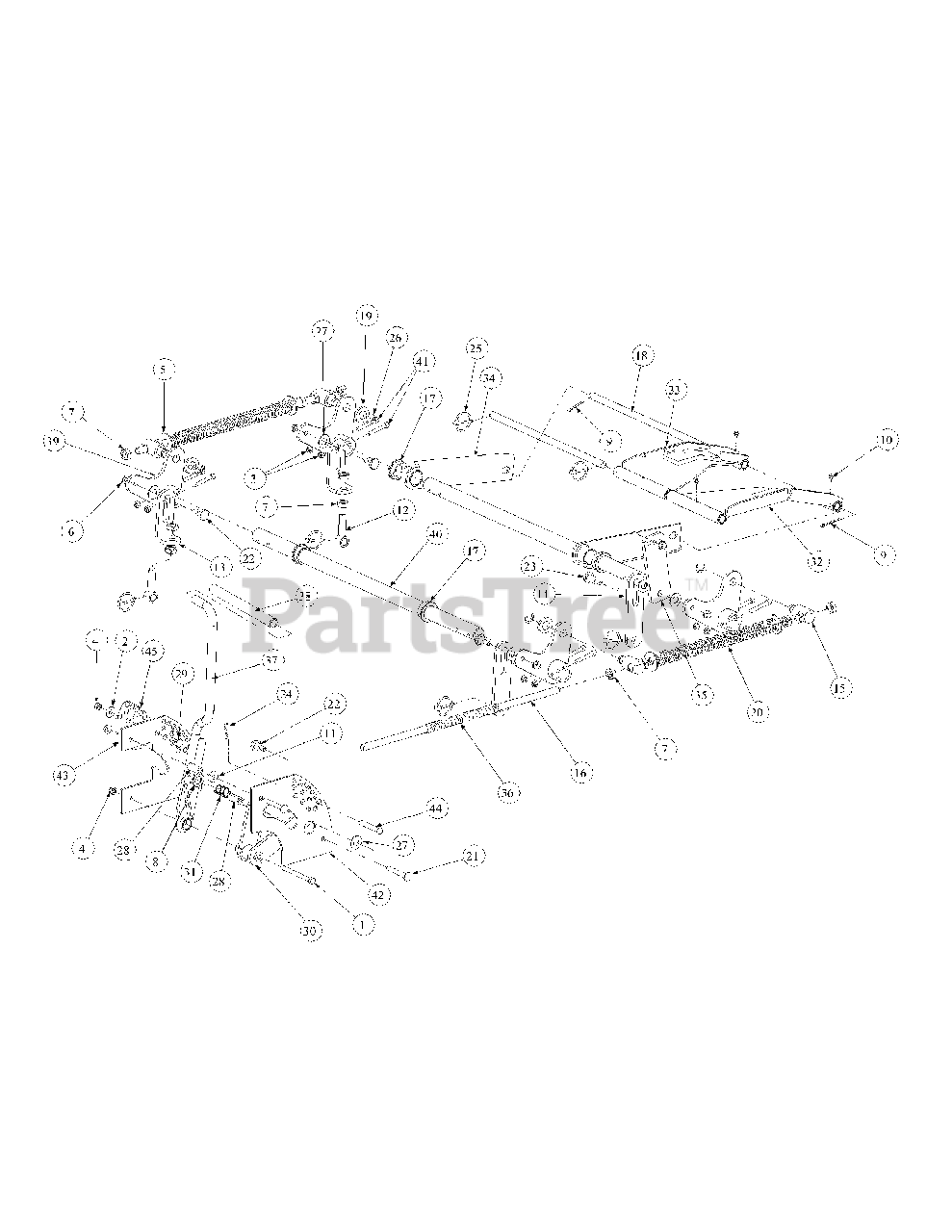

Lift Assembly Parts Diagram

  • Title
1

Cub Cadet 00011925

Hex Cap Screw, 3/8-16, 3.75
(Superseded to 710-0411)

$8.49

$

In Stock, Qty 17

0

2

Cub Cadet 00012158

Flat Washer, 3/8

$4.49

$

In Stock, Qty 9

0

3

Cub Cadet 00012165

Nut, 5/16-18, Nylock

$4.99

$

In Stock, only 1 left!

0

4

Cub Cadet 00012173

Nylock Insert Lock Nut, 3/8-16
(Superseded to 712-04065)

$3.99

$

In Stock, Qty 20+

0

5

Cub Cadet 00013432

Flat Washer, 5/8

$8.49

$

In Stock, Qty 7

0

6

Cub Cadet 00022560

Hex Nut, Flange Lock, 3/8-16
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 00035632

Jam Nut, 5/8-11
(Superseded to 912-3015)

$4.99

$

In Stock, Qty 20+

0

8

Cub Cadet 00060017

Flat Washer, .06, .776, 1.25
(Superseded to 736-05151)

$4.49

$

In Stock, only 2 left!

0

9

Cub Cadet 00060018

Cotter Pin, 3/16 x 1-1

$3.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 00060078

Grease Fitting, 1/4-28 x 3/16
(Superseded to 737-04345)

$4.99

$

In Stock, Qty 6

0

11

Cub Cadet 00083192

Idler Washer
(Superseded to 736-0258)

$4.49

$

In Stock, only 4 left!

0

12

Cub Cadet 01001744

Eye Bolt, 5/8ID
(Superseded to 710-05355)

$17.99

$

In Stock, only 2 left!

0

13

Cub Cadet 01004917

Eye Bolt Mount Link, 5/8 ID
(Superseded to 01001746-0637)

$34.99

$

In Stock, only 1 left!

0

14

Cub Cadet 01004918

Deck Link

$

$

Not available

15

Cub Cadet 01001855

Ferule Lift

$62.99

$

In Stock, only 1 left!

0

16

Cub Cadet 01001857

Lift Connector Rod

$46.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 01001930

Hex Flange Bearing, 1.25 ID

$19.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 01002586

Front Lift Link, Rod Mount

$46.99

$

In Stock, only 3 left!

0

19

Cub Cadet 01003123

Spacer, .812 ID x .268 Lg.
(Superseded to 750-05553)

$9.99

$

In Stock, Qty 20+

0

20

Cub Cadet 01003318

Lift Compression Spring

$

$

Not available

21

Cub Cadet 01003534

Carriage Bolt, 3/8-16, 2.75

$

$

Not available

22

Cub Cadet 01003535

Shoulder Screw, 0.625 OD x .437 Lg.

$28.99

$

In Stock, only 2 left!

0

23

Cub Cadet 01003536

Shoulder Screw, 0.625 OD x .830 Lg.
(Superseded to 738-05007)

$8.99

$

In Stock, only 4 left!

0

24

Cub Cadet 01003537

Cotter Pin, .148 x 3.00

$

$

Not available

25

Cub Cadet 01003993

Linch Pin, 3/16 Dia.
(Superseded to 753-04070)

$9.99

$

In Stock, Qty 20+

0

26

Cub Cadet 01003994

E Clip, 3/4 Dia.

$6.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 01004003

Nylon Flat Washer, 5/8
(Superseded to 736-04602)

$3.99

$

In Stock, Qty 20+

0

28

Cub Cadet 01004080

Spacer, .39 ID x .63 OD x 1.442

$18.99

$

In Stock, only 1 left!

0

29

Cub Cadet 01004118

Shoulder Screw,.50 OD x 0.27
(Superseded to 938-0380)

$7.99

$

In Stock, only 1 left!

0

30

Cub Cadet 01004924

Lift Pivot Assembly

$200.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 01004971

Lift Handle Spring

$13.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 01005298

Bearing Lift Brace Assembly, Right Hand

$357.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 01005301

Bearing Lift Brace Assembly, Left Hand
(Superseded to 01005301P)

$324.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 01005570

Front Frame Strut Assembly
(Superseded to 02005223-0637)

$51.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 01006365

Lift Link Adjustment

$41.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 01006823

Hose, 5/8 ID 13/16 OD, 8" LG

$

$

Not available

37

Cub Cadet 01007469

Lift Handle Assembly

$170.99

$

Usually ships in 3-6 days

0

38

Cub Cadet 01007561

Lift Handle Grip

$

$

Not available

39

Cub Cadet 01008207

Bellecrank Weldment Assembly

$78.99

$

In Stock, only 1 left!

0

40

Cub Cadet 01007681

Deck Lift Shaft

$178.99

$

Usually ships in 3-6 days

0

41

Cub Cadet 01007962

Socket Head Cap Screw, 5/16-18 x 2

$3.99

$

In Stock, only 2 left!

0

42

Cub Cadet 01008627

Outer Lift Index Plate

$

$

Not available

43

Cub Cadet 01008628

Inner Lift Index Plate

$

$

Not available

44

Cub Cadet 01008652

Clevis Pin,.438 Dia. x 2.625 Lg.
(Superseded to 01008652P)

$

$

Not available

45

Cub Cadet 01008671

Decal Height Indicator

$

$

Not available
