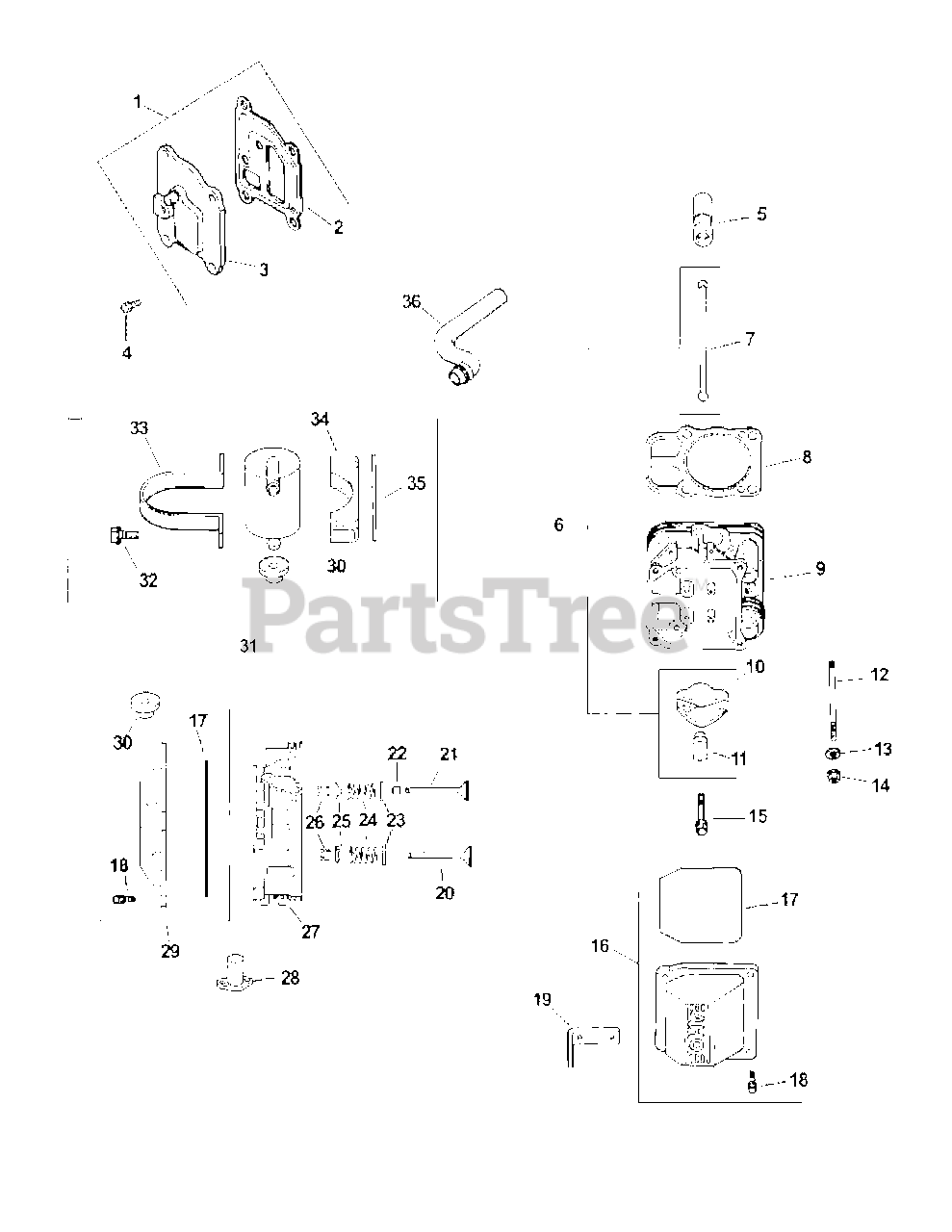

M60-KH EFI (53AB5HEX750) - Cub Cadet 60" Tank Zero-Turn Mower, 28hp Kohler EFI CV745-0006 Head, Valve & Breather Parts Diagram

60" Tank Zero-Turn Mower, 28hp Kohler EFI

CV745-0006 Head, Valve & Breather Parts Diagram

  • Title

1

Cub Cadet KH-24-033-03

Breather Cover Kit

$

$

Not available

2

Cub Cadet KH-24-041-67-S

Breather Gasket

$13.99

$

In Stock, Qty 9

0

3

Cub Cadet KH-24-096-87-S

Breather Cover
(Superseded to KH-24-096-125-S)

$

$

Not available

4

Cub Cadet KH-25-086-396-S

Hex Flange Screw

$2.49

$

In Stock, only 1 left!

0

5

Cub Cadet KH-25-351-10-S

Valve Lifter
(Superseded to KH-25-351-11-S)

$23.99

$

In Stock, only 4 left!

0

6

Cub Cadet KH-24-755-66

Valve Train Kit

$

$

Not available

7

Cub Cadet KH-24-411-05

Push Rod

$

$

Not available

8

Cub Cadet KH-24-841-04-S

Head Gasket

$45.99

$

In Stock, Qty 20+

0

9

Cub Cadet KH-24-318-72-S

Head Assembly #2 Cylinder
(Superseded to KH-24-318-116-S)

$

$

Not available

10

Cub Cadet KH-25-186-01

Rocker Arm

$

$

Not available

11

Cub Cadet KH-24-599-02-S

Rocker Arm Pivot

$2.49

$

In Stock, Qty 8

0

12

Cub Cadet KH-24-072-09-S

Cylinder Head Stud

$6.49

$

In Stock, only 4 left!

0

13

Cub Cadet KH-24-468-16-S

Flat Washer 1/4

$2.49

$

Usually ships in 2-5 days

0

14

Cub Cadet KH-24-100-10-S

Hex Flange Nut

$4.49

$

Usually ships in 2-5 days

0

15

Cub Cadet KH-M-640034-S

Hex Flange Screw

$2.49

$

In Stock, Qty 18

0

16

Cub Cadet KH-24-755-141-S

Valve Cover Kit, Plain

$35.99

$

In Stock, only 2 left!

0

17

Cub Cadet KH-24-153-30-S

O-Ring

$11.99

$

In Stock, only 3 left!

0

18

Cub Cadet KH-M-0651030

Hex Flange Screw

$

$

Not available

19

Cub Cadet KH-25-445-01-S

Lifting Strap
(Superseded to KH-25-445-03-S)

$

$

Not available

20

Cub Cadet KH-24-016-01

Exhaust Valve (Std.)
(Superseded to KH-32-016-01-S)

$15.99

$

In Stock, only 4 left!

0

20

Cub Cadet KH-24-016-02

Exhaust Valve (.25)

$

$

Not available

21

Cub Cadet KH-24-017-01

Intake Valve (Std.)

$

$

Not available

21

Cub Cadet KH-24-017-02

Intake Valve (.25)

$

$

Not available

22

Cub Cadet KH-66-032-05-S

Valve Stem Seal
(Superseded to KH-25-032-14-S)

$11.99

$

In Stock, only 2 left!

0

23

Cub Cadet KH-235011-S

Spring Retainer

$6.49

$

In Stock, only 2 left!

0

24

Cub Cadet KH-24-089-02

Valve Spring

$

$

Not available

25

Cub Cadet KH-25-173-28-S

Valve Spring Cap

$8.49

$

In Stock, Qty 5

0

26

Cub Cadet KH-12-755-03

Retainer Kit

$5.99

$

In Stock, only 2 left!

0

27

Cub Cadet KH-24-318-108-S

Head Assembly #1 Cylinder
(Superseded to KH-24-318-196-S)

$212.99

$

Usually ships in 3-6 days

0

28

Cub Cadet KH-24-605-07-S

Exhaust Port Liner

$17.99

$

In Stock, only 2 left!

0

29

Cub Cadet KH-24-755-142-S

Valve Cover Kit, Breather

$38.99

$

In Stock, only 1 left!

0

30

Cub Cadet KH-25-313-03-S

Rubber Grommet

$11.99

$

In Stock, only 3 left!

0

31

Cub Cadet KH-24-755-57-S

Breather Separator Kit
(Superseded to KH-24-755-241-S)

$90.99

$

In Stock, Qty 7

0

32

Cub Cadet KH-M-545016-S

Hex Flange Screw
(Superseded to KH-25-086-398-S)

$3.99

$

Usually ships in 2-5 days

0

33

Cub Cadet KH-24-445-02

Breather Strap
(Superseded to KH-24-755-241-S)

$90.99

$

In Stock, Qty 7

0

34

Cub Cadet KH-24-126-44

Breather Separator Bracket

$

$

Not available

35

Cub Cadet KH-24-112-12

Spacer

$

$

Not available

36

Cub Cadet KH-24-326-63-S

Breather Hose

$6.99

$

In Stock, only 2 left!

0

Cub Cadet KH-25-454-03-S

Wire Tie

Note: (not shown)

$2.49

$

Usually ships in 2-5 days

0
