M60-KH EFI (53AB5HEX750) - Cub Cadet 60" Tank Zero-Turn Mower, 28hp Kohler EFI CV745-0006 Fuel System Parts Diagram

60" Tank Zero-Turn Mower, 28hp Kohler EFI

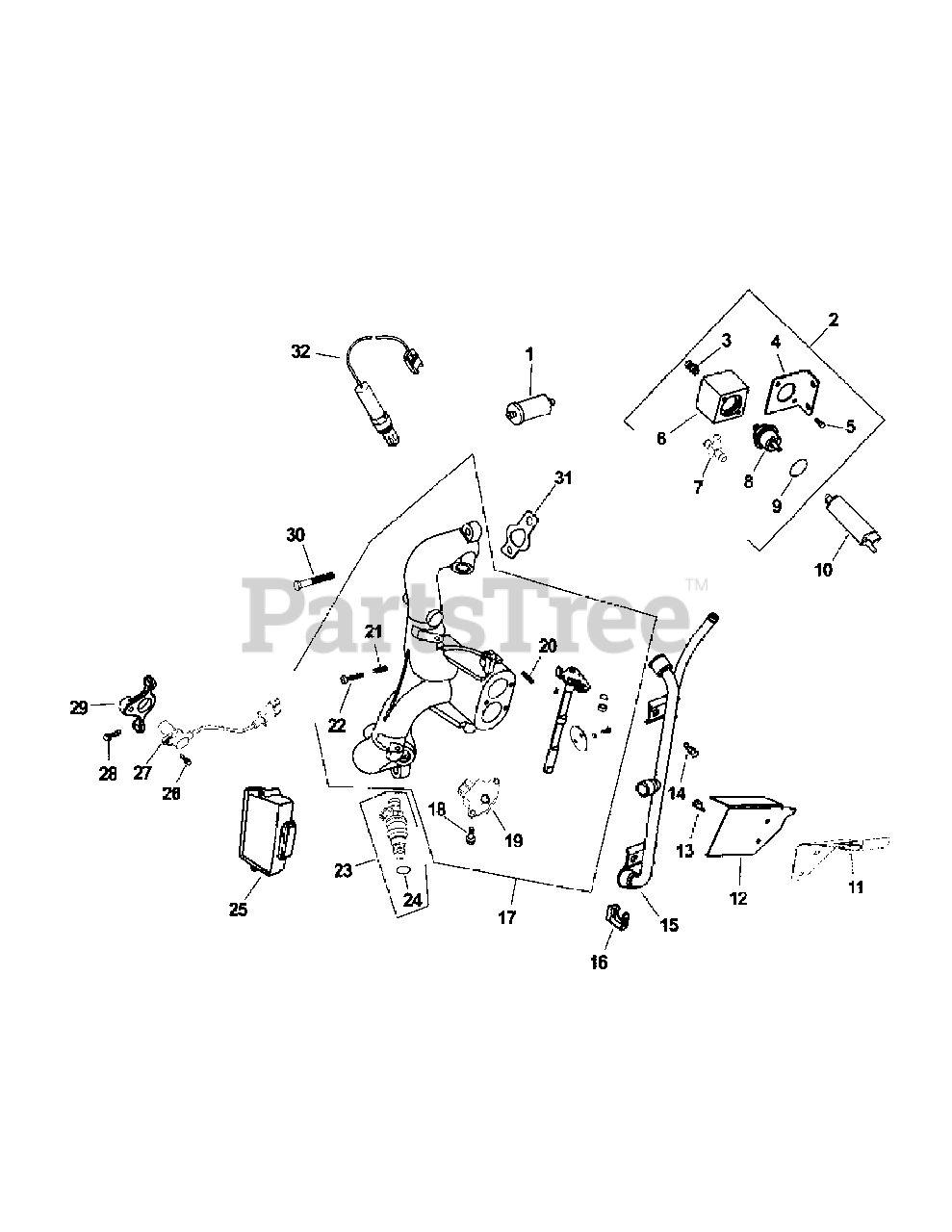

CV745-0006 Fuel System Parts Diagram

  • Title

1

Cub Cadet KH-24-050-03-S

Fuel Filter, EFI, High pressure

Note: (Do not substitute)

$75.99

$

In Stock, only 2 left!

0

2

Cub Cadet KH-24-403-17-S

Fuel Pressure Reg. Assy.

$214.99

$

Usually ships in 2-5 days

0

3

Cub Cadet KH-25-294-16-S

Barbed Fitting

$

$

Not available

4

Cub Cadet N/A

Regulator Bracket

Note: (furnish Ref 2)

$

$

Currently unavailable

5

Cub Cadet N/A

Hex Head Screw

Note: (furnish Ref 2)

$

$

Currently unavailable

6

Cub Cadet N/A

Regulator Housing

Note: (furnish Ref 2)

$

$

Currently unavailable

7

Cub Cadet N/A

Tee Fitting

Note: (furnish Ref 2)

$

$

Currently unavailable

8

Cub Cadet N/A

Pressure Regulator

Note: (furnish Ref 2)

$

$

Currently unavailable

9

Cub Cadet N/A

O-Ring

Note: (furnish Ref 2)

$

$

Currently unavailable

10

Cub Cadet KH-24-393-52-S

Fuel Pump

$367.99

$

Usually ships in 2-5 days

0

11

Cub Cadet KH-24-063-37-S

Valley Baffle

$52.99

$

Usually ships in 2-5 days

0

12

Cub Cadet KH-24-265-08-S

Air Deflector

$

$

Not available

13

Cub Cadet KH-M-0545010

Hex Flange Screw

$

$

Not available

14

Cub Cadet KH-M-639010-S

Hex Flange Screw

Note: NLA

$2.49

$

Usually ships in 2-5 days

0

15

Cub Cadet KH-24-399-09-S

Fuel Rail

$199.99

$

Usually ships in 2-5 days

0

16

Cub Cadet KH-24-154-05-S

Fuel Injector Clip

$3.49

$

Usually ships in 2-5 days

0

17

Cub Cadet KH-24-164-84-S

Intake Manifold

$592.99

$

Usually ships in 2-5 days

0

18

Cub Cadet KH-M-442012-S

Throttle Position Sensor

$4.99

$

Usually ships in 2-5 days

0

19

Cub Cadet KH-24-418-06-S

Pan Head Screw

$

$

Not available

20

Cub Cadet KH-24-086-49-S

Set Screw

$3.49

$

Usually ships in 2-5 days

0

21

Cub Cadet KH-12-089-11-S

Speed Control Spring

$2.49

$

In Stock, only 4 left!

0

22

Cub Cadet KH-M-442025-S

Pan Head Screw

$2.49

$

Usually ships in 2-5 days

0

23

Cub Cadet KH-24-331-02-S

Fuel Injector

$205.99

$

In Stock, only 2 left!

0

24

Cub Cadet KH-24-153-26-S

O-Ring

$3.99

$

In Stock, only 1 left!

0

25

Cub Cadet KH-24-584-58-S

Engine Management Module

$741.99

$

Usually ships in 2-5 days

0

26

Cub Cadet KH-24-086-42-S

Screw

$

$

Not available

27

Cub Cadet KH-24-418-03-S

Speed Pickup Sensor

$201.99

$

Usually ships in 2-5 days

0

28

Cub Cadet KH-M-545016-S

Hex Flange Screw
(Superseded to KH-25-086-398-S)

$3.99

$

Usually ships in 2-5 days

0

29

Cub Cadet KH-24-126-69-S

Speed Sensor Bracket

$

$

Not available

30

Cub Cadet KH-M-639025-S

Hex Flange Screw

Note: NLA

$

$

Currently unavailable

31

Cub Cadet KH-24-041-01

Intake Manifold Gasket
(Superseded to KH-24-041-79-S)

$2.99

$

In Stock, Qty 7

0

32

Cub Cadet KH-24-418-05-S

Oxygen Sensor

$191.99

$

Usually ships in 2-5 days

0

N/S

Cub Cadet KH-24-050-06-S

Fuel Strainer Filter

$40.99

$

Usually ships in 2-5 days

0

N/S

Cub Cadet KH-24-176-122-S

Wiring Harness

$689.99

$

Usually ships in 2-5 days

0

N/S

Cub Cadet KH-25-139-60-S

Pipe Plug

$3.49

$

In Stock, only 2 left!

0

N/S

Cub Cadet KH-M-561016-S

Thread Forming Screw
(Superseded to KH-25-086-398-S)

$3.99

$

Usually ships in 2-5 days

0

N/S

Cub Cadet KH-X-22-9

Lock Washer

$

$

Not available

N/S

Cub Cadet KH-X-25-79

Plain Washer

Note: NLA

$

$

Not available

N/S

Cub Cadet KH-M-639010-S

Hex Flange Screw

Note: NLA

$2.49

$

Usually ships in 2-5 days

0

N/S

Cub Cadet KH-24-113-78-S

Warning Decal

$29.99

$

Usually ships in 2-5 days

0

N/S

Cub Cadet KH-25-454-04-S

Wire Tie

$3.49

$

Usually ships in 2-5 days

0

N/S

Cub Cadet KH-25-155-38-S

Hose Connector 45 deg.

$16.99

$

In Stock, only 3 left!

0
