M60-KH (53CH8CT6050) - Cub Cadet 60" Tank Zero-Turn Mower, 27hp Kohler (2011) Kohler CV740-3125 Head, Valve & Breather Parts Diagram

60" Tank Zero-Turn Mower, 27hp Kohler

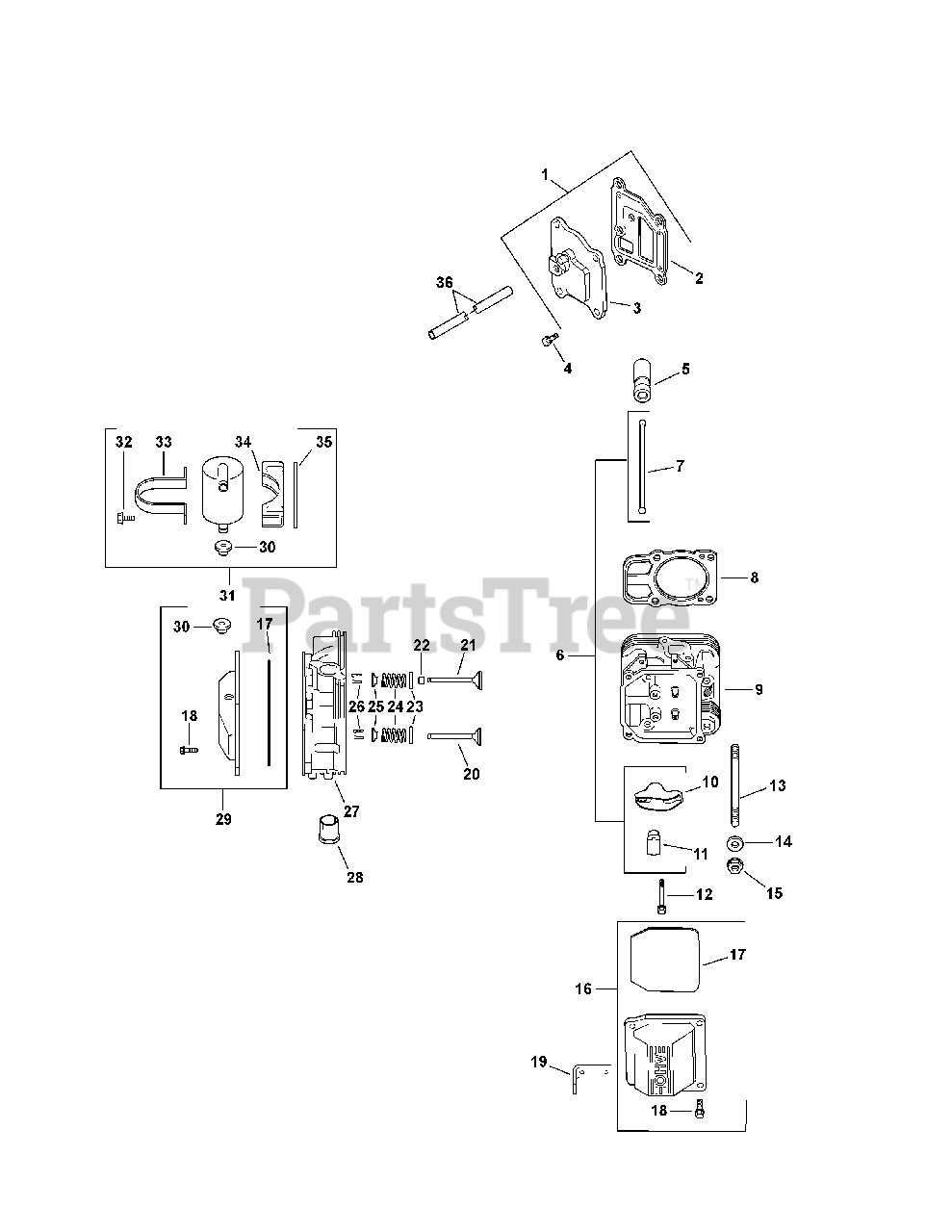

Kohler CV740-3125 Head, Valve & Breather Parts Diagram

  • Title

1

Cub Cadet KH-24-033-03

KIT, BREATHER COVER W/GASKET

Note: (Includes 2,3)

$

$

Not available

2

Cub Cadet KH-24-041-67-S

GASKET, BREATHER

$13.99

$

In Stock, Qty 9

0

3

Cub Cadet KH-24-096-87-S

KIT, BREATHER COVER
(Superseded to KH-24-096-125-S)

$

$

Not available

4

Cub Cadet KH-M-645020-S

SCREW, FLG THD FRM M6X1.0X20
(Superseded to KH-25-086-396-S)

$2.49

$

In Stock, only 1 left!

0

5

Cub Cadet KH-25-351-07-S

LIFTER, VALVE HYDRAULIC
(Superseded to KH-25-351-11-S)

$23.99

$

In Stock, only 4 left!

0

6

Cub Cadet KH-24-755-66

KIT, VALVE TRAIN

Note: (Includes 7,10,11)

$

$

Not available

7

Cub Cadet KH-24-411-05

ROD, PUSH

$

$

Not available

8

Cub Cadet KH-24-841-03-S

KIT, CYL HEAD GASKET(C730-745)
(Superseded to KH-24-841-04-S)

Note: (Includes head mounting hardware)

$45.99

$

In Stock, Qty 20+

0

9

Cub Cadet KH-24-318-116-S

HEAD KIT, CYL #2

$

$

Not available

10

Cub Cadet KH-25-186-01

ARM, ROCKER

$

$

Not available

11

Cub Cadet KH-24-599-02-S

PIVOT, ROCKER ARM

$2.49

$

In Stock, Qty 8

0

12

Cub Cadet KH-M-640034-S

SCREW, FLG M6X1.0X34

$2.49

$

In Stock, Qty 18

0

13

Cub Cadet KH-24-072-09-S

STUD, M8X1.25

$6.49

$

In Stock, only 4 left!

0

14

Cub Cadet KH-24-468-16-S

WASHER, FLAT 8.6 MM

$2.49

$

Usually ships in 2-5 days

0

15

Cub Cadet KH-24-100-10-S

NUT, FLG M8X1.25

$4.49

$

Usually ships in 2-5 days

0

16

Cub Cadet KH-24-755-141-S

KIT, VALVE COVER-PLAIN

Note: (Includes 17,18)

$35.99

$

In Stock, only 2 left!

0

17

Cub Cadet KH-24-153-30-S

O-RING, VALVE COVER

$11.99

$

In Stock, only 3 left!

0

18

Cub Cadet KH-M-651030-S

SCREW, FLG M6X1.0X30 M6x1.0x30
(Superseded to KH-25-086-797-S)

$2.99

$

Usually ships in 3-6 days

0

19

Cub Cadet KH-25-445-01-S

STRAP, LIFTING
(Superseded to KH-25-445-03-S)

$

$

Not available

20

Cub Cadet KH-24-016-01

VALVE, EXHAUST (STD)
(Superseded to KH-32-016-01-S)

$15.99

$

In Stock, only 4 left!

0

20

Cub Cadet KH-24-016-02

VALVE, EXHAUST (.25)

$

$

Not available

21

Cub Cadet KH-24-017-01

VALVE, INTAKE (STD)

$

$

Not available

21

Cub Cadet KH-24-017-02

VALVE, INTAKE (.25)

$

$

Not available

22

Cub Cadet KH-66-032-05-S

SEAL, VALVE STEM
(Superseded to KH-25-032-14-S)

$11.99

$

In Stock, only 2 left!

0

23

Cub Cadet KH-235011-S

RETAINER, SPRING

$6.49

$

In Stock, only 2 left!

0

24

Cub Cadet KH-24-089-02

SPRING, VALVE

$

$

Not available

25

Cub Cadet KH-25-173-28-S

CAP, VALVE SPRING

$8.49

$

In Stock, Qty 5

0

26

Cub Cadet KH-12-755-03

KIT, RETAINER

$5.99

$

In Stock, only 2 left!

0

27

Cub Cadet KH-24-318-108-S

HEAD KIT, CYL #1
(Superseded to KH-24-318-196-S)

$212.99

$

Usually ships in 3-6 days

0

28

Cub Cadet KH-24-605-07-S

LINER

$17.99

$

In Stock, only 2 left!

0

29

Cub Cadet KH-24-755-142-S

KIT, VALVE COVER

Note: (Includes 17,18,30)

$38.99

$

In Stock, only 1 left!

0

30

Cub Cadet KH-25-313-03-S

GROMMET, RUBBER

$11.99

$

In Stock, only 3 left!

0

31

Cub Cadet KH-24-755-57-S

KIT, BREATHER SEPARATOR
(Superseded to KH-24-755-241-S)

Note: (Includes 30-35)

$90.99

$

In Stock, Qty 7

0

32

Cub Cadet KH-M-645016-S

SCREW, FLG THD FRM M6X1.0X16

$3.99

$

In Stock, Qty 15

0

33

Cub Cadet KH-24-445-02

STRAP, BREATHER
(Superseded to KH-24-755-241-S)

$90.99

$

In Stock, Qty 7

0

34

Cub Cadet KH-24-126-44

BRACKET, BREATHER SEPARATOR

$

$

Not available

35

Cub Cadet KH-24-112-12

SPACER

$

$

Not available

36

Cub Cadet KH-24-326-63-S

HOSE

$6.99

$

In Stock, only 2 left!

0

Cub Cadet KH-24-755-147-S

KIT, CYLINDER HEAD HARDWARE NOT ILLUSTRATED (includes 7,10-12,20-26)

$96.99

$

In Stock, only 3 left!

0
