M60-KH (53CH8CT6050) - Cub Cadet 60" Tank Zero-Turn Mower, 27hp Kohler (2011) Kohler CV740-3125 Blower Housing & Baffles Parts Diagram

60" Tank Zero-Turn Mower, 27hp Kohler

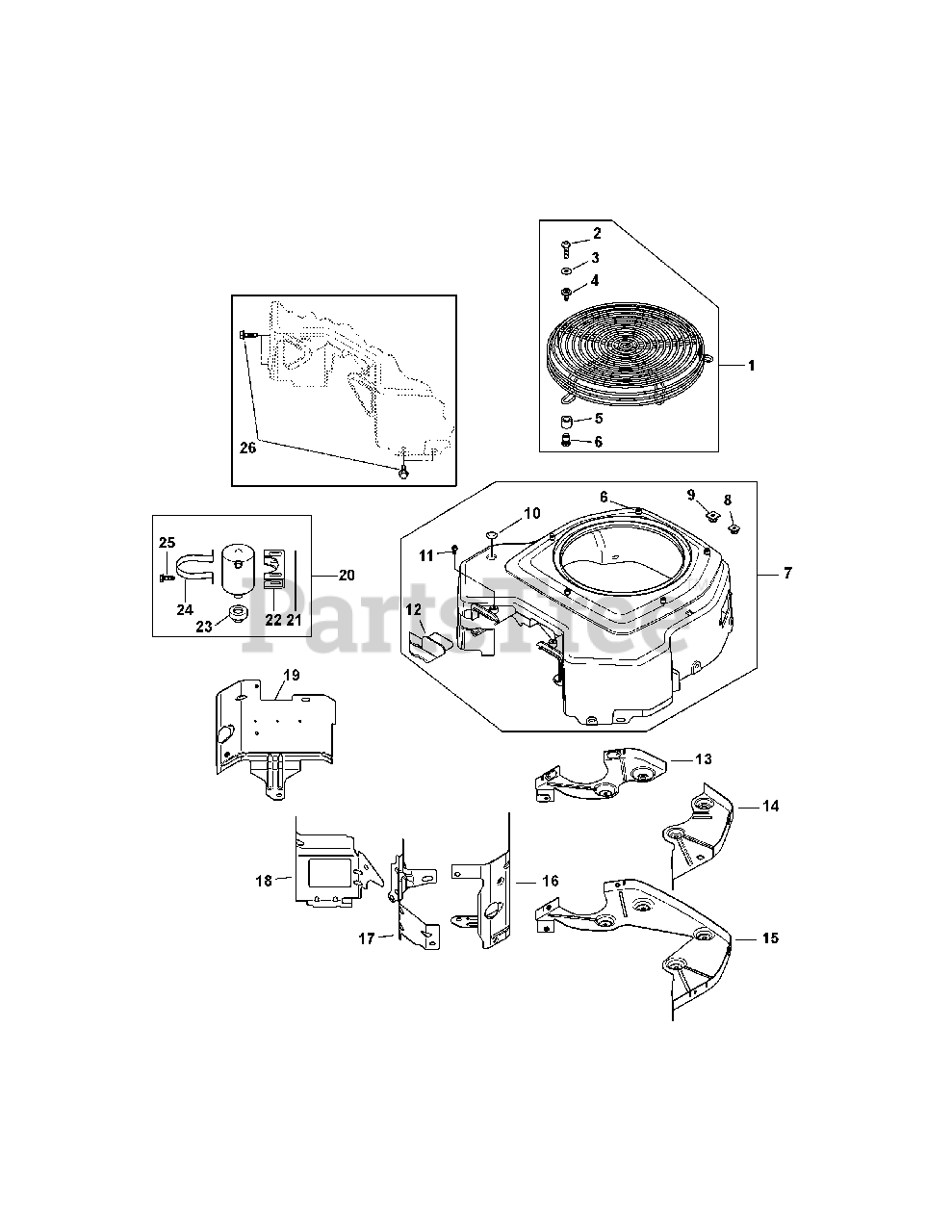

Kohler CV740-3125 Blower Housing & Baffles Parts Diagram

  • Title

1

Cub Cadet KH-24-755-94-S

KIT, GUARD

Note: (includes 2-6, KH-24-445-01-S)

$86.99

$

In Stock, only 1 left!

0

2

Cub Cadet KH-25-086-160-S

SCREW, LBD SKT PAN M5X0.8X15

Note: (Before S/N 3725400011)

$2.99

$

In Stock, Qty 14

0

3

Cub Cadet KH-24-468-10

WASHER, FLAT 7/32''

Note: (Before S/N 3725400011)

$

$

Not available

4

Cub Cadet KH-25-086-160-S

SCREW, SEMS

Note: (After S/N 3725400001)

$2.99

$

In Stock, Qty 14

0

5

Cub Cadet KH-24-332-01-S

INSERT, THREADED

$

$

Not available

6

Cub Cadet KH-24-112-09-S

SPACER
(Superseded to KH-25-112-30-S)

$4.49

$

In Stock, only 1 left!

0

7

Cub Cadet KH-24-027-199-S

KIT, BLOWER HOUSING ASSEMBLY
(Superseded to KH-24-027-494-S)

Note: (includes 8-12, KH-25-086-43-S & KH-41-037-10-S)

$165.99

$

Usually ships in 2-5 days

0

8

Cub Cadet KH-24-100-02-S

NUT, PLASTIC

$2.49

$

Usually ships in 2-5 days

0

9

Cub Cadet KH-24-100-01

PLASTIC NUT
(Superseded to KH-25-100-37-S)

Note: (Bef ore S/N 3801500011)

$2.49

$

In Stock, Qty 9

0

9

Cub Cadet KH-25-100-37-S

NUT, PLASTIC - BLACK

Note: (After S/N 3801500001)

$2.49

$

In Stock, Qty 9

0

10

Cub Cadet KH-25-139-16

PLUG, BUTTON 9/16

$

$

Not available

11

Cub Cadet KH-25-086-91-S

SCREW, WSH HD TAP #8-18X1/2''

$3.49

$

Usually ships in 2-5 days

0

12

Cub Cadet KH-24-096-85-S

COVER, BLOWER HOUSING-MOLDED
(Superseded to KH-24-096-161-S)

$2.49

$

In Stock, only 1 left!

0

13

Cub Cadet KH-24-146-20-S

PLATE, BACKING #1 SIDE

Note: (Before S/N 3531800011)

$

$

Not available

14

Cub Cadet KH-24-146-19-S

PLATE, BACKING #2 SIDE
(Superseded to KH-24-146-59-S)

Note: (Before S/N 3531800011)

$15.99

$

In Stock, only 1 left!

0

14

Cub Cadet KH-24-146-53-S

KIT, BACKING PLATE
(Superseded to KH-24-146-59-S)

Note: (includes M-561016-S) (After S/ N 3531800001 & Before S/N 3725700011)

$15.99

$

In Stock, only 1 left!

0

15

Cub Cadet KH-24-146-55-S

BACKING PLATE
(Superseded to KH-24-146-59-S)

Note: (includes M-561016-S) (After S/N 3725700001)

$15.99

$

In Stock, only 1 left!

0

16

Cub Cadet KH-24-063-88-S

KIT, CYL BAFFEL #2 SIDE

Note: (includes 25 086 158-S)

$28.99

$

Usually ships in 2-5 days

0

17

Cub Cadet KH-24-063-14-S

BAFFLE, VALLEY #2 CYLINDER
(Superseded to KH-24-063-94-S)

Note: (Before S/N 3426700011)

$9.49

$

Usually ships in 2-5 days

0

17

Cub Cadet KH-24-063-69-S

BAFFLE, VALLEY #2 CYLINDER
(Superseded to KH-24-063-94-S)

Note: (After S/N 3426700001)

$9.49

$

Usually ships in 2-5 days

0

18

Cub Cadet KH-24-063-23-S

BAFFLE, VALLEY #1 CYLINDER

Note: (Before S/N 313100011)

$

$

Not available

18

Cub Cadet KH-24-063-60-S

BAFFLE, VALLEY #1 CYLINDER

Note: (After S/N 313100001)

$

$

Not available

19

Cub Cadet KH-24-063-31-S

KIT, CYL BAFFEL #1 SIDE

Note: (Before S/N 302200011)

$

$

Not available

19

Cub Cadet KH-24-063-85-S

KIT, CYL BAFFEL #1 SIDE

Note: (includes 25 086 158-S)

$17.99

$

In Stock, only 1 left!

0

20

Cub Cadet KH-24-755-57-S

KIT, BREATHER SEPARATOR
(Superseded to KH-24-755-241-S)

Note: (includes 21-25)

$90.99

$

In Stock, Qty 7

0

21

Cub Cadet KH-24-112-12

SPACER

$

$

Not available

22

Cub Cadet KH-24-126-44

BRACKET, BREATHER SEPARATOR

$

$

Not available

23

Cub Cadet KH-25-313-03-S

GROMMET, RUBBER

$11.99

$

In Stock, only 3 left!

0

24

Cub Cadet KH-24-445-02

STRAP, BREATHER
(Superseded to KH-24-755-241-S)

$90.99

$

In Stock, Qty 7

0

25

Cub Cadet KH-M-545016-S

SCREW, FLG THD FRM M5X0.8X16
(Superseded to KH-25-086-398-S)

$3.99

$

Usually ships in 2-5 days

0

26

Cub Cadet KH-M-645016-S

SCREW, FLG THD FRM M6X1.0X16

$3.99

$

In Stock, Qty 15

0

Cub Cadet KH-24-086-18

SCREW, PHL HD #11-16X7/8''

Note: NOT ILLUSTRATED

$

$

Not available

Cub Cadet KH-24-455-01-S

TOOL, INSERT INSTALLATION

Note: NOT ILLUSTRATED

$37.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-25-086-158-S

SCREW, FLNG THD FRM M6X1.0X10
(Superseded to KH-25-086-406-S)

Note: NOT ILLUSTRATED

$2.49

$

In Stock, Qty 9

0

Cub Cadet KH-25-086-43

SCREW, SKT SET #10-24X1/4''

Note: NOT ILLUSTRATED

$

$

Not available

Cub Cadet KH-41-037-10-S

NAMEPLATE, SERVICE

Note: NOT ILLUSTRATED

$8.99

$

In Stock, only 4 left!

0

Cub Cadet KH-M-0545010

SCREW, FLG THD FRM M5X.8X10

Note: NOT ILLUSTRATED

$

$

Not available

Cub Cadet KH-M-545020-S

SCREW, FLG THD FRM M5X.8X20
(Superseded to KH-25-086-473-S)

Note: NOT ILLUSTRATED

$2.49

$

In Stock, Qty 6

0

Cub Cadet KH-M-561016-S

SCREW, FLG THD FRM M5X.8X16
(Superseded to KH-25-086-398-S)

Note: NOT ILLUSTRATED

$3.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-M-645016-S

SCREW, FLG THD FRM M6X1.0X16

Note: NOT ILLUSTRATED

$3.99

$

In Stock, Qty 15

0
