M60-KH (53CB5BDX750) - Cub Cadet 60" Tank Zero-Turn Mower, 27hp Kohler Kohler CV740-0039 Blower Housing & Baffles Parts Diagram

60" Tank Zero-Turn Mower, 27hp Kohler

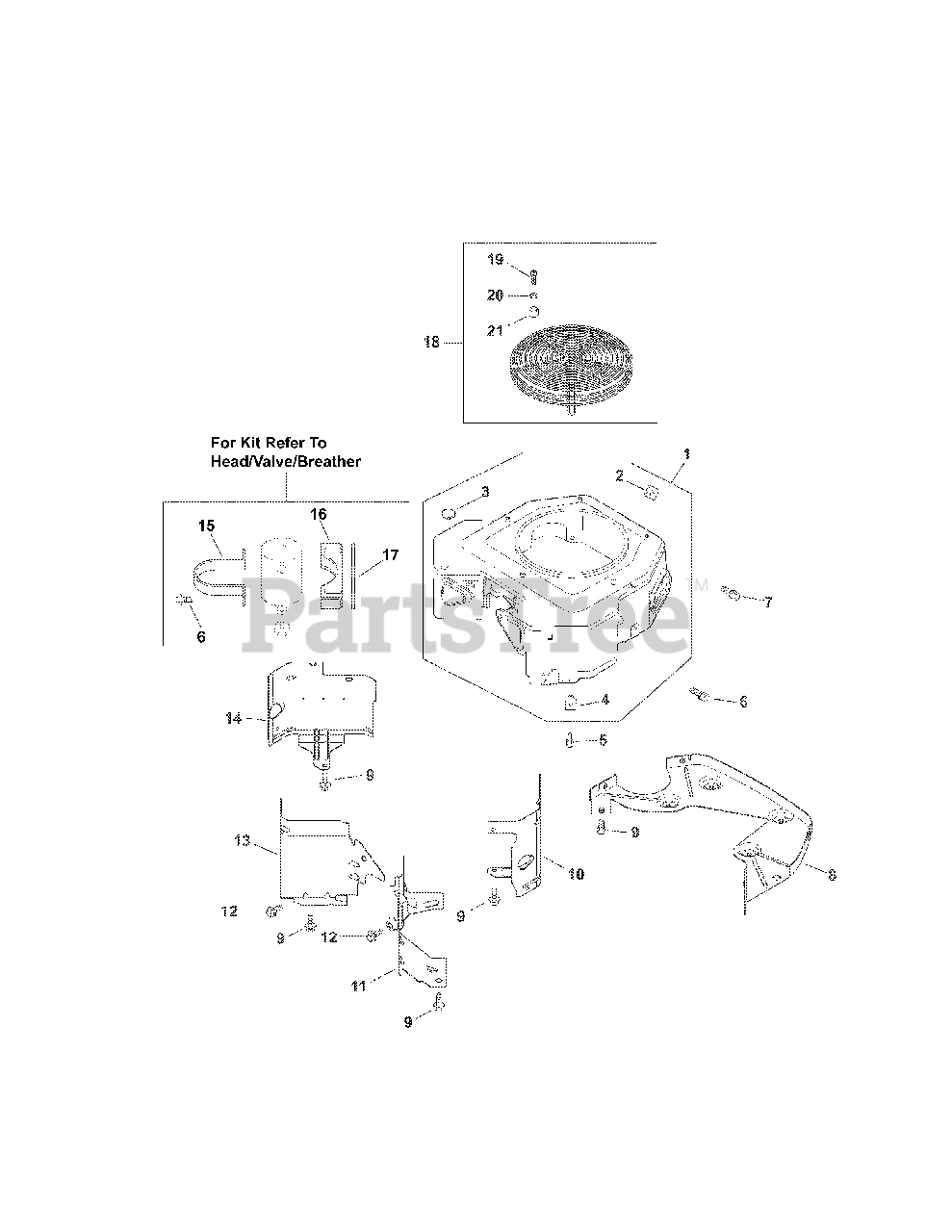

Kohler CV740-0039 Blower Housing & Baffles Parts Diagram

  • Title

1

Cub Cadet KH-24-027-199-S

Housing assembly, blower
(Superseded to KH-24-027-494-S)

Note: (Includes 2-4, KH-332-01-S & KH41-037-10-S)

$165.99

$

Usually ships in 2-5 days

0

2

Cub Cadet KH-24-100-01

Nut, plastic
(Superseded to KH-25-100-37-S)

$2.49

$

In Stock, Qty 7

0

3

Cub Cadet KH-25-139-16

Plug, button 9/16

$

$

Not available

4

Cub Cadet KH-24-100-02

Nut, plastic

$

$

Not available

5

Cub Cadet KH-M-545020-S

Screw, flg thd frm M5x0.8x20
(Superseded to KH-25-086-473-S)

$2.49

$

In Stock, Qty 20+

0

6

Cub Cadet KH-M-545016-S

Screw, flg thd frm M5x0.8x16
(Superseded to KH-25-086-398-S)

$3.99

$

Usually ships in 2-5 days

0

7

Cub Cadet KH-M-561016-S

Screw, flg thd frm M5x0.8x16
(Superseded to KH-25-086-398-S)

$3.99

$

Usually ships in 2-5 days

0

8

Cub Cadet KH-24-146-50-S

Plate, backing (Includes KH-25-154-11-S)
(Superseded to KH-24-146-59-S)

$15.99

$

In Stock, only 1 left!

0

9

Cub Cadet KH-M-645016-S

Screw, flg thd frm M6x1.0x16

$3.99

$

In Stock, Qty 13

0

10

Cub Cadet KH-24-063-39-S

Baffle, cyl barrel #2 side
(Superseded to KH-24-063-88-S)

$28.99

$

Usually ships in 2-5 days

0

11

Cub Cadet KH-24-063-69-S

Baffle, valley #2 side
(Superseded to KH-24-063-94-S)

$9.49

$

Usually ships in 2-5 days

0

12

Cub Cadet KH-M-545010

Screw, flg thd frm M5x0.8x10
(Superseded to KH-M-0545010)

$

$

Not available

13

Cub Cadet KH-24-063-60-S

Baffle, valley #1 side

$

$

Not available

14

Cub Cadet KH-24-063-58-S

Baffle, cyl barrel #1 side
(Superseded to KH-24-063-85-S)

$17.99

$

In Stock, only 1 left!

0

15

Cub Cadet KH-24-445-02

Strap, breather
(Superseded to KH-24-755-241-S)

$90.99

$

In Stock, Qty 6

0

16

Cub Cadet KH-24-126-44

Bracket, breather separator

$

$

Not available

17

Cub Cadet KH-24-112-12

Spacer

$

$

Not available

18

Cub Cadet KH-24-755-94

Kit, guard (Includes 19-21& KH-24-332-01-S)

$

$

Currently unavailable

19

Cub Cadet KH-24-086-39

Screw, 6 lbd skt pan M5x0.8x15

$

$

Currently unavailable

20

Cub Cadet KH-24-468-10

Washer, flat 7/32 inch

$

$

Not available

21

Cub Cadet KH-24-112-09-S

Spacer
(Superseded to KH-25-112-30-S)

$4.49

$

In Stock, only 1 left!

0

Cub Cadet KH-25-154-11-S

Clip, repair ("U" bolt speed nut)

Note: Not Illustrated

$3.99

$

In Stock, only 1 left!

0

Cub Cadet KH-41-037-10-S

Name plate, service

Note: Not Illustrated

$8.99

$

In Stock, only 4 left!

0

Cub Cadet KH-24-332-01-S

Insert, threaded

Note: Not Illustrated

$

$

Not available
