M60-KH (53BH8CT6050) - Cub Cadet 60" Tank Zero-Turn Mower, 27hp Kohler (2009 & Before) Kohler CV740-0039 Air Intake & Filtration Parts Diagram

60" Tank Zero-Turn Mower, 27hp Kohler

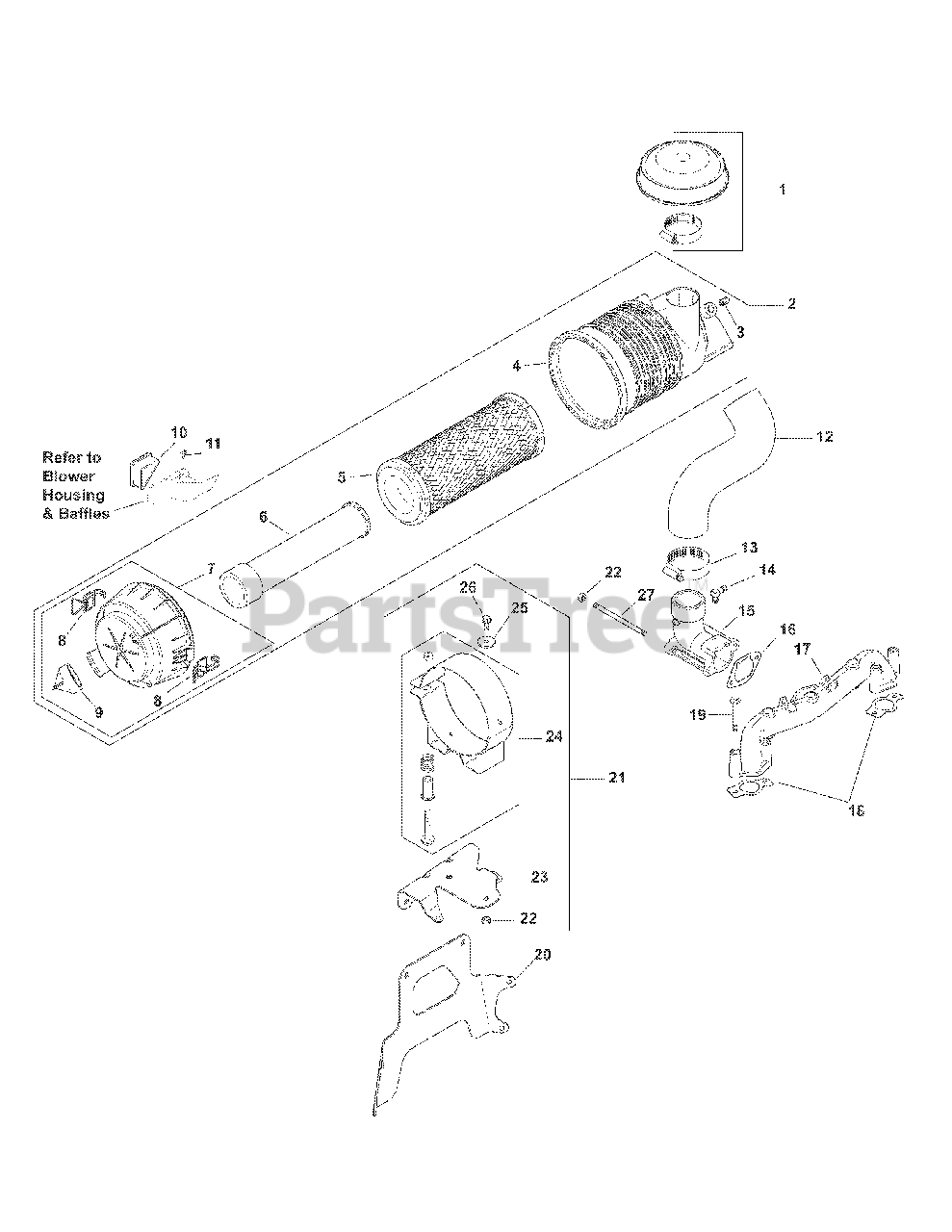

Kohler CV740-0039 Air Intake & Filtration Parts Diagram

  • Title
1

Cub Cadet KH-25-324-02-S

Hood, air cleaner
(Superseded to KH-25-324-04-S)

$49.99

$

In Stock, only 1 left!

0

2

Assembly, air cleaner (Use 3-9)

$

$

Not available

$8.99

$

Usually ships in 2-5 days

0

4

Cub Cadet KH-25-081-01-S

Housing, heavy duty air cleaner

$140.99

$

In Stock, only 1 left!

0

5

Cub Cadet KH-25-083-01-S

Element, air filter-primary

$32.99

$

In Stock, Qty 20+

0

6

Cub Cadet KH-25-083-04-S

Element, air filter-safety

$32.99

$

In Stock, Qty 20+

0

7

Cub Cadet KH-25-096-06-S

Cover assembly, plastic air cleaner (Includes 8,9)

$87.99

$

In Stock, only 1 left!

0

8

Cub Cadet KH-25-154-05-S

Clip
(Superseded to KH-62-154-07-S)

$13.99

$

In Stock, Qty 12

0

9

Cub Cadet KH-24-462-07-S

Valve, dust ejector

$21.99

$

In Stock, only 2 left!

0

10

Cub Cadet KH-24-096-17-S

Cover, blower housing
(Superseded to KH-24-096-160-S)

$4.99

$

In Stock, only 2 left!

0

11

Cub Cadet KH-25-086-91-S

Screw, wsh hd tp #10-16x1/2 inch

$3.49

$

Usually ships in 2-5 days

0

12

Cub Cadet KH-24-326-53-S

Hose, air cleaner

$13.99

$

Usually ships in 2-5 days

0

13

Cub Cadet KH-25-237-07-S

Clamp, hose
(Superseded to KH-25-237-21-S)

$7.99

$

In Stock, only 2 left!

0

14

Cub Cadet KH-25-155-38-S

Connector, hose

$16.99

$

In Stock, only 3 left!

0

15

Cub Cadet KH-24-054-16-S

Elbow, air cleaner base

$140.99

$

Usually ships in 2-5 days

0

16

Cub Cadet KH-24-041-14

Gasket, air cleaner base elbow

$

$

Not available

17

Cub Cadet KH-24-164-06

Manifold, intake

$

$

Not available

18

Cub Cadet KH-24-041-01

Gasket, intake manifold
(Superseded to KH-24-041-79-S)

$2.99

$

In Stock, Qty 7

0

19

Cub Cadet KH-25-086-84-S

Screw, flg M6x1.0x55
(Superseded to KH-25-086-766-S)

$2.49

$

Usually ships in 3-6 days

0

20

Cub Cadet KH-24-126-105-S

Bracket, main support
(Superseded to KH-24-126-171-S)

$65.99

$

Usually ships in 2-5 days

0

21

Bracket, air cleaner sub assembly (Use 22 qty 2, 23-26)

$

$

Not available

22

Cub Cadet KH-M-647060

Nut, lock M6x1.0

$

$

Not available

23

Cub Cadet KH-24-126-104-S

Bracket, air cleaner mtg
(Superseded to KH-24-126-184-S)

$92.99

$

Usually ships in 2-5 days

0

24

Cub Cadet KH-25-126-02-S

Bracket assembly, air cleaner
(Superseded to KH-24-126-191-S)

$62.99

$

Usually ships in 2-5 days

0

25

Cub Cadet KH-X-25-73-S

Washer, flat 1/4 inch

$3.99

$

Usually ships in 2-5 days

0

26

Cub Cadet KH-M-639016-S

Screw, flg M6x1.0x16

$2.49

$

In Stock, Qty 6

0

27

Cub Cadet KH-24-072-10-S

Stud M6x1.0x180

$17.99

$

In Stock, Qty 14

0
