M60-KH (53AH8CTX750) - Cub Cadet 60" Tank Zero-Turn Mower, 27hp Kohler Hydro Hose & Pump Assembly Parts Diagram

60" Tank Zero-Turn Mower, 27hp Kohler

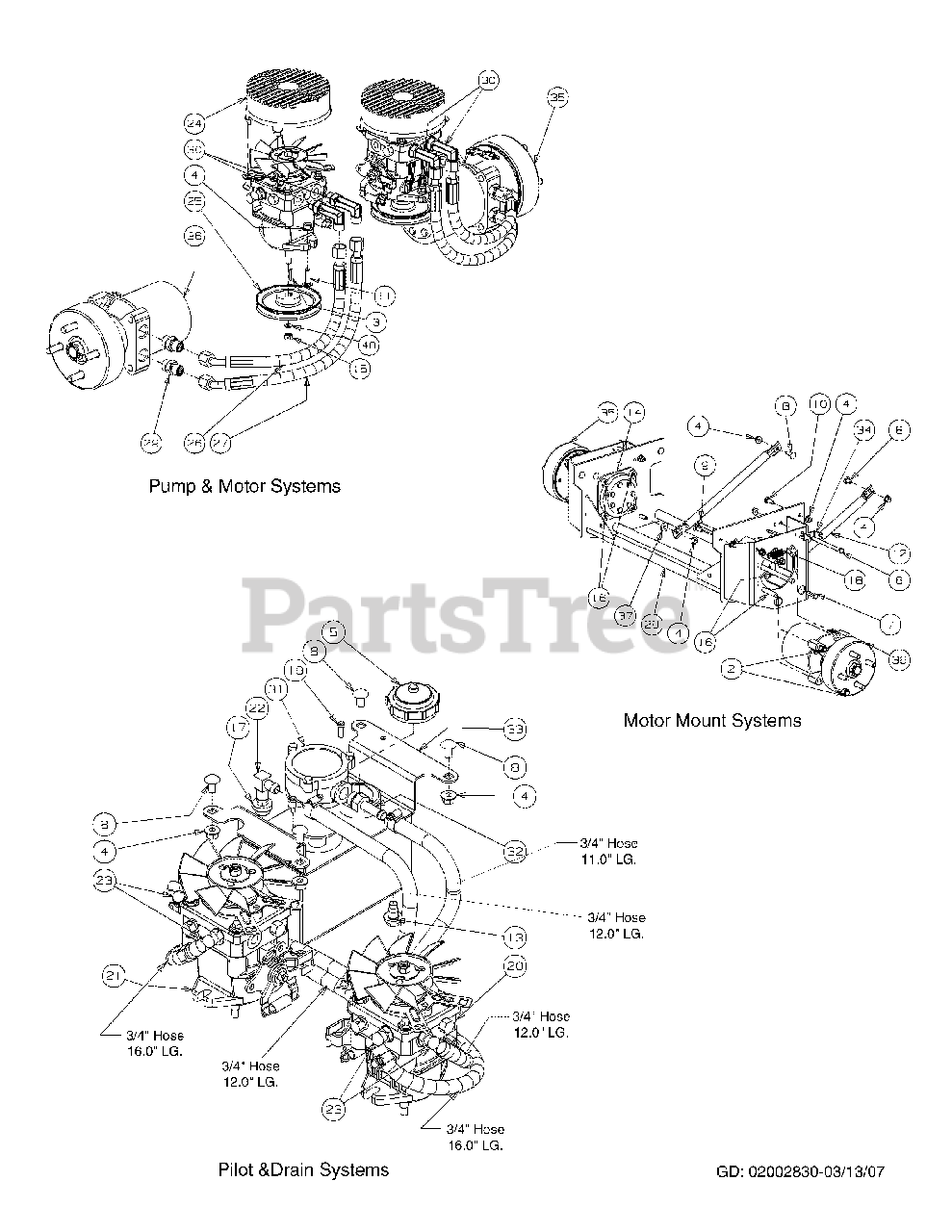

Hydro Hose & Pump Assembly Parts Diagram

  • Title

1

Cub Cadet 02002392

Hose Clamp, 1/2

$10.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 00012428

Washer lock 3/8 zinc

$6.99

$

In Stock, only 2 left!

0

3

Cub Cadet 00020628

Key, 3/16" x 7/8"

$6.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 00022560

Flange Lock Hex Nut, 3/8-16
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 00030261

Cap, Hydro Oil Tank

$36.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 00034167

Hex Cap Screw 3/8-16 x 5.00

$

$

Not available

7

Cub Cadet 01000369

Hex Cap Screw, 3/8 -16 x 1.25
(Superseded to 710-3005)

$3.99

$

In Stock, Qty 20+

0

8

Cub Cadet 01000372

Carriage Bolt, 3/8-16 x .75 LG.
(Superseded to 710-3178)

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 01000642

Carriage Bolt, 3/8-16 x 5.50

$18.99

$

In Stock, only 3 left!

0

10

Cub Cadet 01000643

Carriage Bolt, 3/8-16 x 1

$5.49

$

In Stock, Qty 7

0

11

Cub Cadet 01002010

Carriage Screw, 3/8-16 x 1.25
(Superseded to 710-3034)

$3.99

$

In Stock, Qty 5

0

12

Cub Cadet 01001618

Strut Frame
(Superseded to 01002593-0637)

$

$

Not available

13

Cub Cadet 01004192

Oil Pan Drain Plug w/ Seal
(Superseded to 738-0940)

$8.49

$

Usually ships in 3-6 days

0

14

Cub Cadet 01006948

Hydro Wheel Motor Backup Plate
(Superseded to 01006949)

$40.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 01007309

Hex Nut, 3/8-24

$5.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 01008449

Socket Head Capscrew, 1/2-13; 6-1/2

$13.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 02000296

Grommet Fitting, .54 ID x .78 OD

$20.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 02000401

Spring Extension, .740 OD x 2.656

$9.99

$

In Stock, only 1 left!

0

19

Cub Cadet 02000841

Socket Low Head Cap Screw, 1/4-20 x 0.75

$5.49

$

Usually ships in 3-6 days

0

20

Cub Cadet 02000905

Hydro Pump, BDP-12, RH
(Superseded to 02000905P)

$1844.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 01009631

Kit, Fan
(Superseded to HG-71172)

Note: (Not shown)

$36.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 02000906

Hydro Pump, BDP-12, LH
(Superseded to 02000906P)

$1844.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 01009631

Kit, Fan
(Superseded to HG-71172)

Note: (Not shown)

$36.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 02001151

Fitting Elbow Spur, 5/8 x 1/2

$

$

Not available

23

Cub Cadet 02001160

Fitting Elbow, 9/16 x 1/2

$59.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 02001169

Fan Pump Shroud

$35.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 02001172

Hydro Pump Pulley

$90.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 02001178

Short Pressure Hose Assembly

$115.99

$

In Stock, Qty 6

0

27

Cub Cadet 02001179

Long Pressure Hose Assembly

$118.99

$

In Stock, only 2 left!

0

28

Cub Cadet 02001492

Hydro Motor Frame Assembly

$

$

Not available

29

Cub Cadet 02001715

Adaptor Fitting, 8 x 10
(Superseded to 737P05711)

$15.99

$

In Stock, only 1 left!

0

30

Cub Cadet 02002003

Adaptor, 8 x 8

$45.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 02002257

Hydraulic In-Tank Filter includes:

$175.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 02002258

Replacement Filter

Note: (Not shown)

$49.99

$

In Stock, Qty 7

0

32

Cub Cadet 02002557

Fitting, 3/4 ORB x 1/2 Tube

$

$

Not available

33

Cub Cadet 02002703

Hydraulic Tank Assembly
(Superseded to 02002701-0637)

$

$

Not available

34

Cub Cadet 02002899

Rear Cable Mounting Bracket

$

$

Not available

35

Cub Cadet 02002967

Hydro Motor, Left Hand Assembly w/ Brake & Drum
(Superseded to 02002967P)

$2201.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 02002968

Hydro Motor, Right Hand Assembly w/ Brake & Drum
(Superseded to 02002968P)

$2118.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 00083192

Idler Washer
(Superseded to 736-0258)

$4.49

$

In Stock, only 2 left!

0

38

Cub Cadet N/A

Fuel Hose, .50 ID x .75 OD (79 inches)

Note: (Purchase locally)

$

$

Currently unavailable

39

Cub Cadet 02001175

Tee Fitting, 1/2

$29.99

$

In Stock, only 2 left!

0

40

Cub Cadet 00006168

Flat Washer, 3/8
(Superseded to 936-3015)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 761-04074

Brake Shoe, Set of Two
(Superseded to 961-04074)

Note: (Not shown) for Hydro Motor

$82.99

$

Usually ships in 3-6 days

0

Cub Cadet 02002058

OIL-RIMULA 15W/40, quart
(Superseded to 737-04325QT)

Note: (Not shown)

$13.99

$

In Stock, Qty 10

0
