M60-KH (53AH8CTX750) - Cub Cadet 60" Tank Zero-Turn Mower, 27hp Kohler Frame Assembly Parts Diagram

60" Tank Zero-Turn Mower, 27hp Kohler

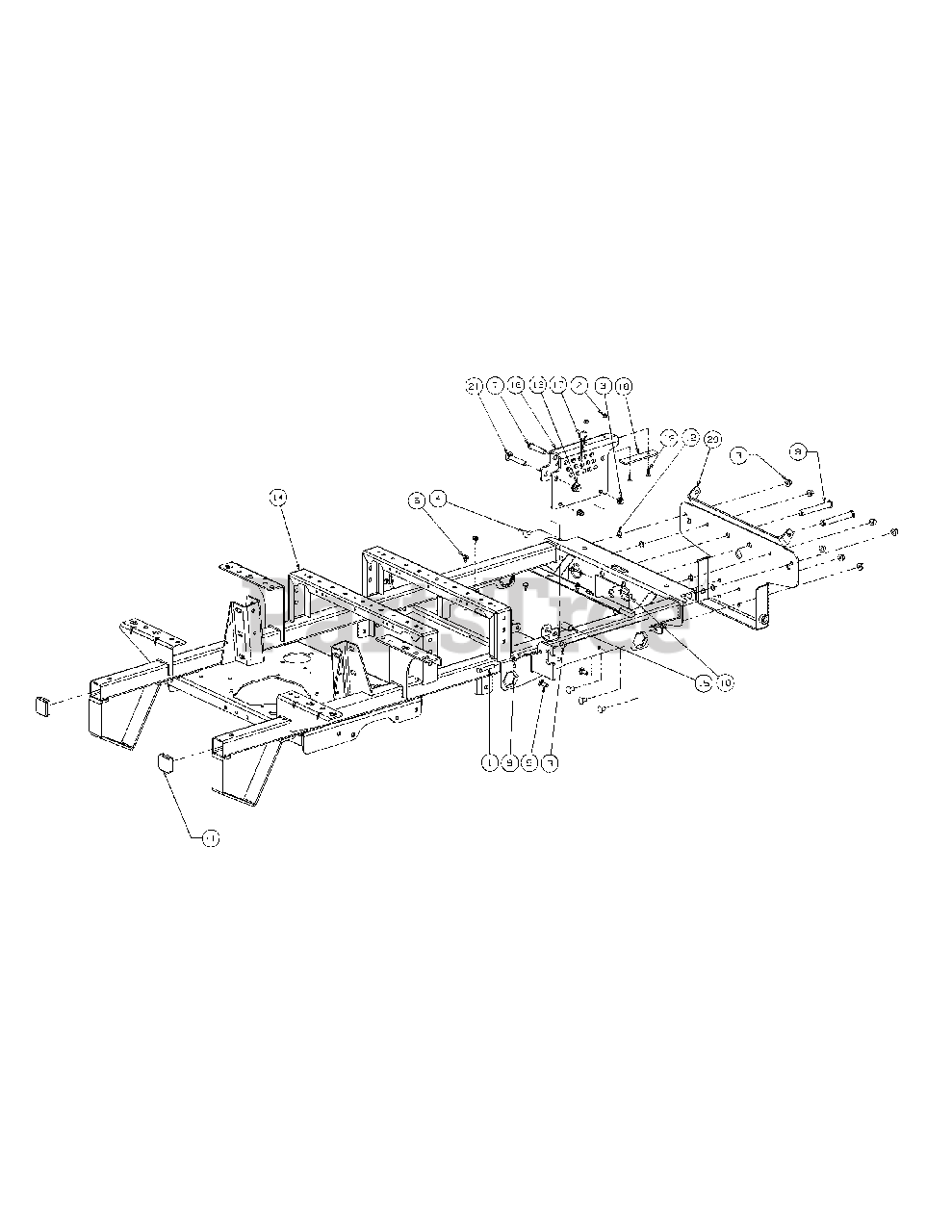

Frame Assembly Parts Diagram

  • Title

1

Cub Cadet 00002528

Hex Cap Screw 3/8-16 x 2.00

$6.99

$

In Stock, Qty 7

0

2

Cub Cadet 00012152

Lock Nut w/Nylon Insert

$4.49

$

In Stock, only 1 left!

0

3

Cub Cadet 00022560

Hex Nut, 3/8-16 Flange Lock
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 710-3178

Carriage Bolt, 3/8-16 x .75 Long

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 01000643

Carriage Bolt, 3/8-16 x 1

$5.49

$

In Stock, Qty 7

0

6

Cub Cadet 935-0199A

Rubber Bumper, .62 OD x .22 Thick
(Superseded to 735-0199A)

$7.99

$

In Stock, only 4 left!

0

7

Cub Cadet 711-0761

Clevis Pin, .500 Dia. x 2.50 Lg.

$19.99

$

In Stock, only 4 left!

0

8

Cub Cadet 01002511

Nut, 3/8-16, Jam

$5.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 01003282

Clevis Pin, .625 Dia x 4.375 Long

$12.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 01003993

Linch Pin, 3/16 Dia.
(Superseded to 753-04070)

$9.99

$

In Stock, Qty 20+

0

11

Cub Cadet 01005160

Plug, Square Tube

$10.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 01008225

Push Retainer, 3/8
(Superseded to 712-0229)

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet 01010119

Nut, 1/2-13, Flangelock

$7.49

$

In Stock, only 2 left!

0

14

Cub Cadet 02002599

Frame Assembly

$

$

Not available

15

Cub Cadet 02002655

Spacer, .51 ID x .75 OD x 1.40

$2.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 02002985-0637

Lift Index Bracket

$

$

Not available

17

Cub Cadet 02003074

HitchPin, .120 Dia. x 3.0

$6.49

$

Usually ships in 3-6 days

0

18

Cub Cadet 02003749

Wear Plate, 1.25 x 5.00

$33.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 02003505

Flat Head Cap Screw, 1/4-20 x .75

$3.49

$

Usually ships in 3-6 days

0

20

Cub Cadet 02003526-0637

Bracket Assembly, Frame, Front

$

$

Not available

21

Cub Cadet 02003563

Carriage Bolt, 1/2-13 x 3.00

$

$

Not available
