M60-KH (53AH8CT6050) - Cub Cadet 60" Tank Zero-Turn Mower, 30hp Kohler Kohler CV750-0028 Oil Pan & Lubrication Parts Diagram

60" Tank Zero-Turn Mower, 30hp Kohler

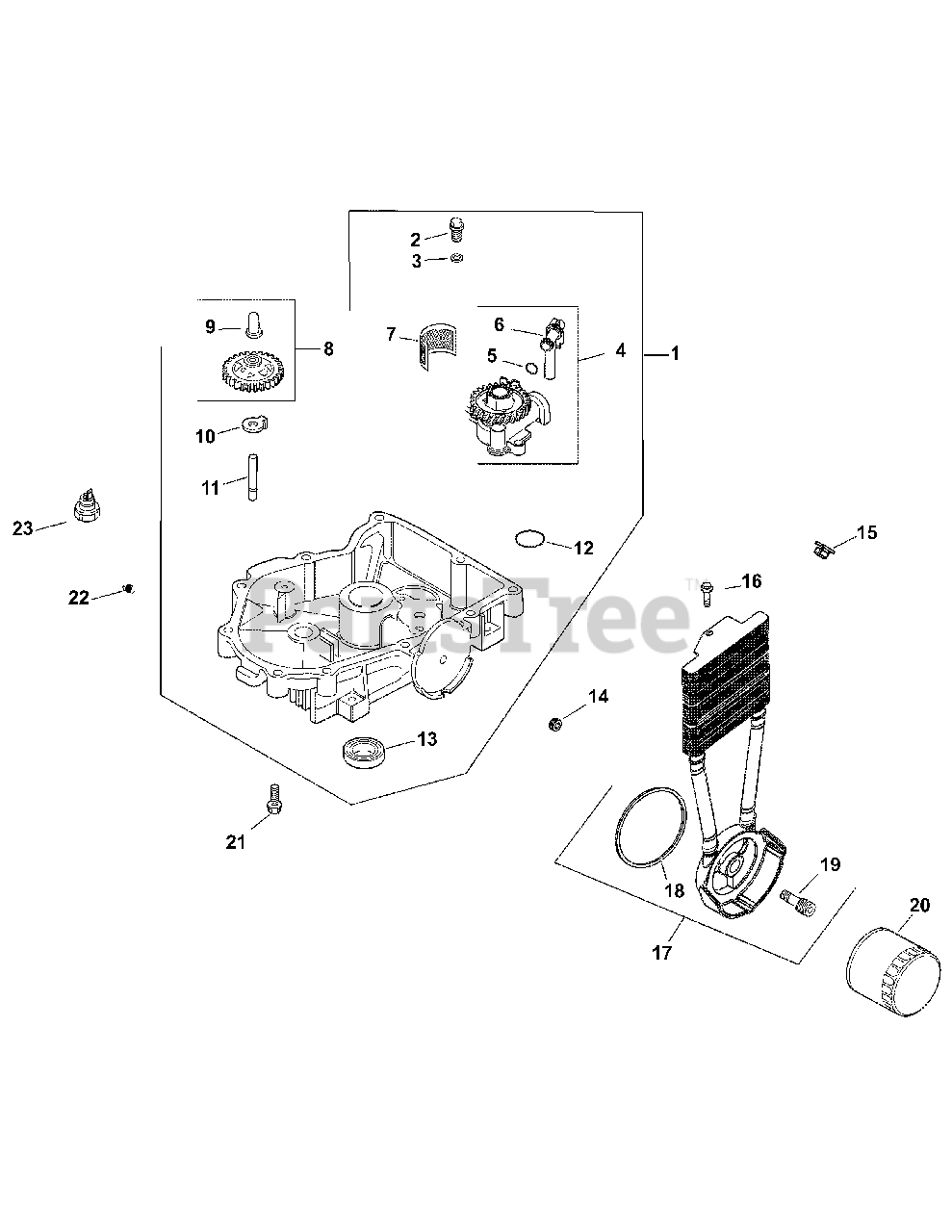

Kohler CV750-0028 Oil Pan & Lubrication Parts Diagram

  • Title

1

Cub Cadet KH-24-199-07

Pan, Oil Assembly
(Superseded to KH-24-199-35-S)

Note: (Includes 2-13)

$337.99

$

In Stock, only 1 left!

0

2

Cub Cadet KH-M-645025-S

Screw, Flg Thd Frm M6X1.0X25
(Superseded to KH-25-086-395-S)

$2.49

$

In Stock, only 2 left!

0

3

Cub Cadet KH-M-631005

Washer, Flat 6MM

$

$

Not available

4

Cub Cadet KH-24-393-51-S

Kit, Oil Pump Assembly
(Superseded to KH-24-393-53-S)

$

$

Not available

5

Cub Cadet KH-24-153-01

O-Ring, Oil Pick-Up

$

$

Not available

6

Cub Cadet KH-24-381-11-S

Tube, Oil Pick-Up

$

$

Not available

7

Cub Cadet KH-24-162-26-S

Screen, Oil

$17.99

$

In Stock, only 1 left!

0

8

Cub Cadet KH-24-043-12

Kit, Governor Gear w/ Pin

Note: (Includes 9)

$

$

Not available

9

Cub Cadet KH-12-380-01

Pin, Governor Regulating

$

$

Not available

10

Cub Cadet KH-24-448-02-S

Tab, Locking

$2.49

$

In Stock, Qty 20+

0

11

Cub Cadet KH-12-144-02

Shaft, Governor Gear

$

$

Not available

12

Cub Cadet KH-24-153-08

O-Ring

$

$

Not available

13

Cub Cadet KH-25-032-06-S

Seal, Oil

$10.99

$

In Stock, Qty 16

0

14

Cub Cadet KH-25-139-62-S

Plug, Pipe CTSK 3/8"

$3.49

$

In Stock, only 2 left!

0

15

Cub Cadet KH-24-100-01

Nut, Plastic
(Superseded to KH-25-100-37-S)

$2.49

$

In Stock, Qty 7

0

16

Cub Cadet KH-24-086-12

Screw, Tap M6x1.7x18

$

$

Not available

17

Cub Cadet KH-54-755-21-S

Kit, Oil Cooler (Metal)

Note: (Includes 18,19)

$257.99

$

Usually ships in 2-5 days

0

18

Cub Cadet KH-24-153-21-S

O-Ring, Oil Cooler

$6.49

$

In Stock, Qty 6

0

19

Cub Cadet KH-24-136-05-S

Nipple, Oil Filter
(Superseded to KH-24-136-08-S)

$

$

Not available

20

Cub Cadet KH-52-050-02-S

Filter, Oil

$14.99

$

In Stock, Qty 20+

0

21

Cub Cadet KH-24-086-17-S

Screw, Flg M8x1.25x45

$2.49

$

In Stock, Qty 7

0

22

Cub Cadet KH-52-139-02

Plug, Hd Pipe 3/8"

$

$

Not available

23

Cub Cadet KH-25-099-27-S

Switch, Oil Pressure

$15.99

$

In Stock, only 4 left!

0
