M60-KH (53AH8CT6050) - Cub Cadet 60" Tank Zero-Turn Mower, 30hp Kohler Kohler CV750-0028 Blower Housing & Baffles Parts Diagram

60" Tank Zero-Turn Mower, 30hp Kohler

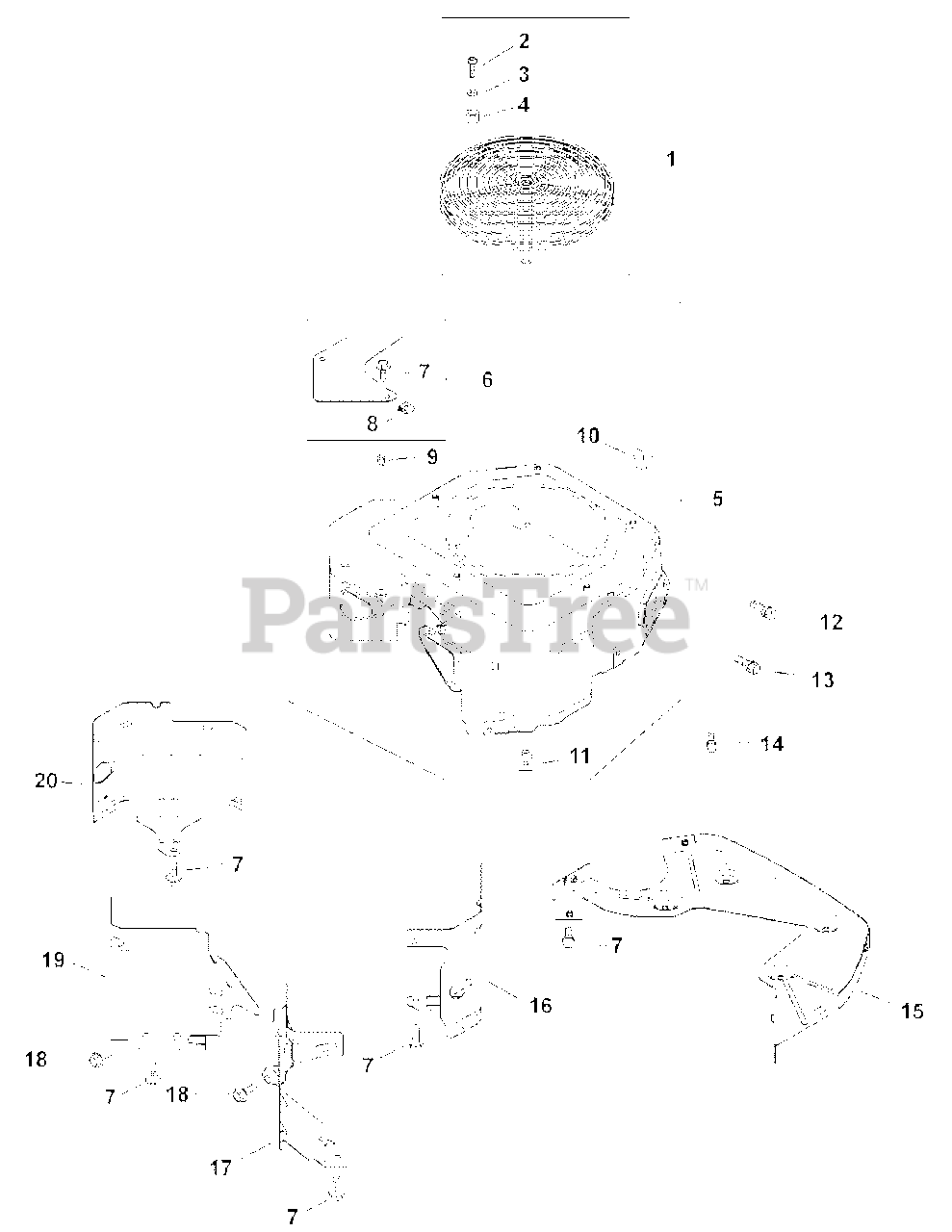

Kohler CV750-0028 Blower Housing & Baffles Parts Diagram

  • Title

1

Cub Cadet KH-24-755-94-S

Kit, Guard

Note: (Includes 2-4 & 24 332 01-S)

$86.99

$

In Stock, only 1 left!

0

2

Cub Cadet KH-24-086-39-S

Screw, Lbd Skt Pan M5x0.8x15
(Superseded to KH-25-086-160-S)

$2.99

$

In Stock, Qty 15

0

3

Cub Cadet KH-24-468-10

Washer, Flat 7/32

$

$

Not available

4

Cub Cadet KH-24-112-09-S

Spacer
(Superseded to KH-25-112-30-S)

$4.49

$

In Stock, only 2 left!

0

5

Cub Cadet KH-24-027-212-S

Housing, Blower

Note: (Includes 6-11)

$217.99

$

Usually ships in 2-5 days

0

6

Cub Cadet KH-25-755-21-S

Kit, Access Panel
(Superseded to KH-25-113-75-S)

Note: (Inlcudes 2 Panels, 7 Qty. 4, 8)

$5.49

$

Usually ships in 2-5 days

0

7

Cub Cadet KH-M-645016-S

Screw, Flg Thd Frm M6x1.0x16

$3.99

$

In Stock, Qty 15

0

8

Cub Cadet KH-25-154-02

Clip, Mounting

$

$

Not available

9

Cub Cadet KH-25-086-43

Screw, Skt Set #10-24x1/4"

$

$

Not available

10

Cub Cadet KH-24-100-01

Nut, Plastic
(Superseded to KH-25-100-37-S)

$2.49

$

In Stock, Qty 13

0

11

Cub Cadet KH-24-100-02-S

Nut, Plastic

$2.49

$

Usually ships in 2-5 days

0

12

Cub Cadet KH-M-561016-S

Screw, Flg Thd Frm M5x0.8x16
(Superseded to KH-25-086-398-S)

$3.99

$

Usually ships in 2-5 days

0

13

Cub Cadet KH-M-545020-S

Screw, Flg Thd Frm M5x0.8x20
(Superseded to KH-25-086-473-S)

$2.49

$

In Stock, Qty 6

0

14

Cub Cadet KH-M-545016-S

Screw, Flg Thd Frm M5x0.8x16
(Superseded to KH-25-086-398-S)

$3.99

$

Usually ships in 2-5 days

0

15

Cub Cadet KH-24-146-53-S

Plate Backing
(Superseded to KH-24-146-59-S)

$15.99

$

In Stock, only 2 left!

0

16

Cub Cadet KH-24-063-39-S

Baffle, Cyl Barrel #2 Side
(Superseded to KH-24-063-88-S)

$28.99

$

Usually ships in 2-5 days

0

17

Cub Cadet KH-24-063-69-S

Baffle, Valley #2 Side
(Superseded to KH-24-063-94-S)

$9.49

$

Usually ships in 2-5 days

0

18

Cub Cadet KH-M-545010

Screw, Flg Thd Frm M5x0.8x10
(Superseded to KH-M-0545010)

$

$

Not available

19

Cub Cadet KH-24-063-60-S

Baffle, Valley #1 Side

$

$

Not available

20

Cub Cadet KH-24-063-58-S

Baffle, Cyl Barrel #1 Side
(Superseded to KH-24-063-85-S)

$17.99

$

In Stock, only 1 left!

0

21

Cub Cadet KH-24-086-18

Screw, Phl Hd #11-16x7/8"

$

$

Not available

22

Cub Cadet KH-24-445-02

Strap, Breather
(Superseded to KH-24-755-241-S)

$90.99

$

In Stock, Qty 7

0

23

Cub Cadet KH-24-126-44

Bracket, Breather Seperator

$

$

Not available

24

Cub Cadet KH-24-112-12

Spacer

$

$

Not available

Cub Cadet KH-25-154-11-S

Clip, Repair (Speed Nut)

Note: (not shown)

$3.99

$

In Stock, only 1 left!

0

Cub Cadet KH-24-332-01-S

Insert Threaded

Note: (not shown)

$

$

Not available

Cub Cadet KH-41-037-10-S

Nameplate, Service

Note: (not shown)

$8.49

$

In Stock, only 4 left!

0
