M60-KH (53AH5BDX750) - Cub Cadet 60" Tank Zero-Turn Mower, 27hp Kohler Fabricated Deck Spindle Assembly Parts Diagram

60" Tank Zero-Turn Mower, 27hp Kohler

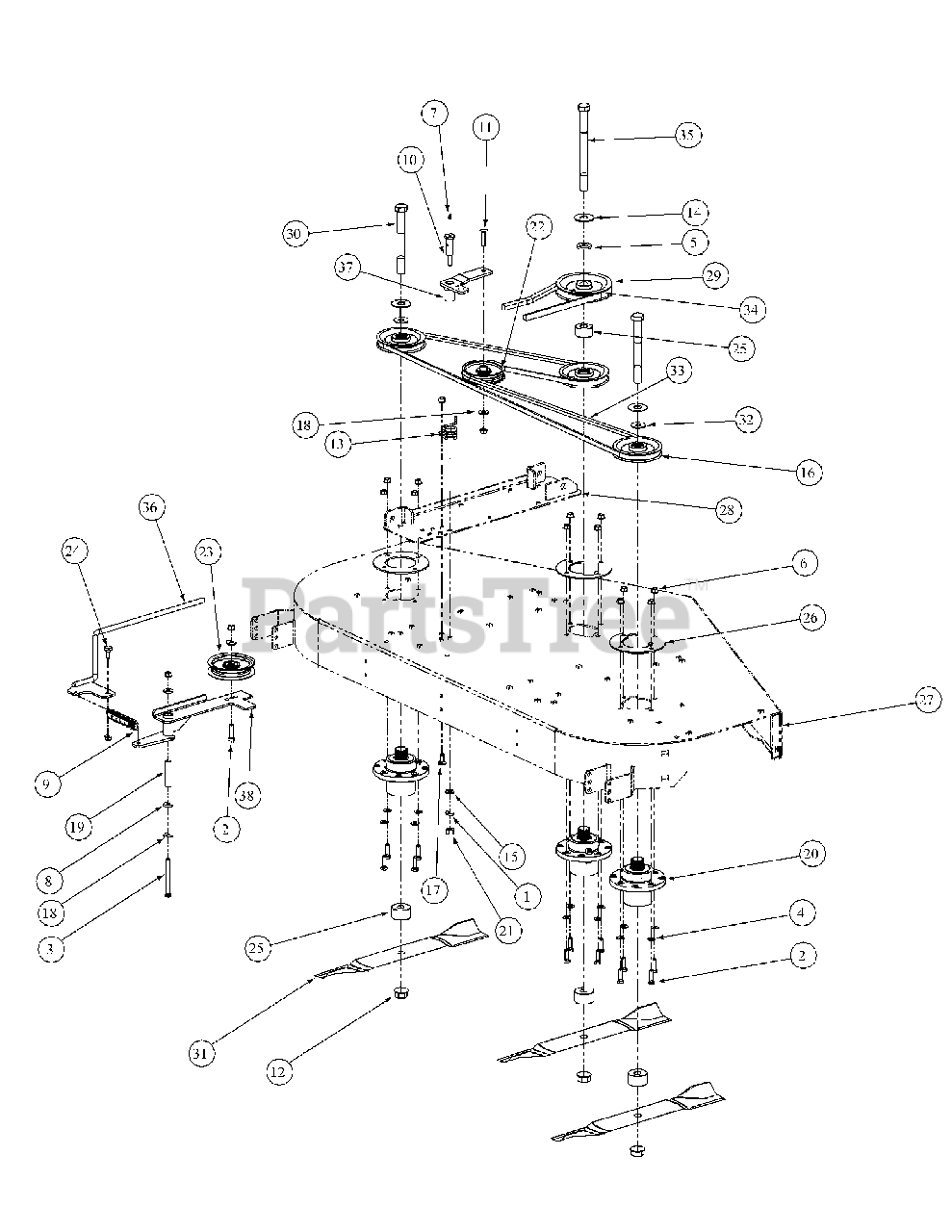

Fabricated Deck Spindle Assembly Parts Diagram

  • Title

1

Cub Cadet 936-0171

Lock Washer, 7/16
(Superseded to 736-0171)

$4.49

$

In Stock, only 4 left!

0

2

Cub Cadet 00011438

Hex Cap Screw, 3/8-16 x 1-1/2
(Superseded to 710-06021)

$3.99

$

In Stock, only 3 left!

0

3

Cub Cadet 00011925

Hex Cap Screw, 3/8-16, 4.00
(Superseded to 710-0411)

$8.49

$

In Stock, Qty 17

0

4

Cub Cadet 00012158

Flat Washer, 3/8

$4.49

$

In Stock, Qty 9

0

5

Cub Cadet 00021925

Caster Spacer

$16.99

$

In Stock, only 3 left!

0

6

Cub Cadet 00022560

Flange Lock Hex Nut, 3/8-16
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 737-04345

Grease Fitting, 1/4-28 x 3/16

$4.99

$

In Stock, Qty 6

0

8

Cub Cadet 00083192

Idler Washer
(Superseded to 736-0258)

$4.49

$

In Stock, only 3 left!

0

9

Cub Cadet 01000199

Extension Spring, 1.0 x OD x 5.125

$17.99

$

In Stock, only 4 left!

0

10

Cub Cadet 01000302

Shoulder Screw, 7/16-14
(Superseded to 738-3102)

$21.99

$

In Stock, only 1 left!

0

11

Cub Cadet 710-0560

Hex Carriage Screw, 3/8-16, 1.75

$6.99

$

In Stock, Qty 12

0

12

Cub Cadet 712-3078

Flange Hex Nut, 3/4-16

$9.99

$

In Stock, Qty 20+

0

13

Cub Cadet 932-3009

Torsion Idler Spring

$24.99

$

In Stock, only 4 left!

0

14

Cub Cadet 736-3014

Flat Washer, .781 ID 2.00 OD, .105

$4.49

$

In Stock, only 4 left!

0

15

Cub Cadet 936-3015

Flat Washer, .469 ID, .875 OD, .105

$4.49

$

In Stock, only 1 left!

0

16

Cub Cadet 01005616

V-Pulley, 5.00 OD

$

$

Not available

17

Cub Cadet 01000643

Carriage Bolt, 3/8-16 x 1

$5.49

$

In Stock, Qty 7

0

18

Cub Cadet 736-3052

Flat Washer, .406 ID, 1.0 OD, .105

$4.49

$

In Stock, Qty 20+

0

19

Cub Cadet 01003245

Spacer, .39 ID x .625 OD x 2.75

$18.99

$

In Stock, only 1 left!

0

20

Cub Cadet 01003532P

Aluminum Spindle Assembly
(Superseded to 918-05125)

$331.99

$

In Stock, only 1 left!

0

21

Cub Cadet 912-3019

Hex Nut, 7/16-14
(Superseded to 712-3019)

$6.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 02005077

Flat Pulley

$35.99

$

In Stock, Qty 20+

0

23

Cub Cadet 02004447

Idler Pulley, 4.06 OD

$57.99

$

In Stock, Qty 20+

0

24

Cub Cadet 01004118

Shoulder Screw, .50 x .27 Lg., 3/8-16
(Superseded to 938-0380)

$7.99

$

In Stock, only 1 left!

0

25

Cub Cadet 01004415

Spacer, .760 ID x 2.00 OD x 1.1

$40.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 01004478-0637

Aluminum Spindle Support Plate
(Superseded to 703-08898)

$42.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 01008761-0637

60" Deck Assembly

$2585.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 01005342

Left Hand Mount Deck Bracket Assembly

$

$

Not available

29

Cub Cadet 01005203

V-Pulley, 5.774 OD

$132.99

$

In Stock, Qty 5

0

30

Cub Cadet 01005213

Hex Cap Screw, 3/4-16, 7.00
(Superseded to 710-05387)

$14.99

$

In Stock, only 2 left!

0

31

Cub Cadet 02005019

Hi-Lift Blade, 21.0, 0.756 ID
(Superseded to 942-04415)

$35.99

$

In Stock, Qty 20+

0

32

Cub Cadet 01003123

Spacer .812 ID x .268 LG
(Superseded to 750-05553)

$9.99

$

In Stock, Qty 20+

0

33

Cub Cadet 01005376

V-Belt, A Section x 122.3
(Superseded to 01005376P)

$87.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 01005377

V-Belt, B Section x 91.2
(Superseded to 01005377P)

$85.99

$

In Stock, Qty 8

0

35

Cub Cadet 01005388

Hex Cap Screw, 3/4-16, 9.00
(Superseded to 710-05388)

$32.99

$

In Stock, Qty 5

0

36

Cub Cadet 01005690

Spring Tension Rod Assembly

$111.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 01005737

Idler Arm Assembly, Deck Spindle

$108.99

$

In Stock, only 2 left!

0

38

Cub Cadet 02000943

Idler Arm Assembly, Flat Top Bearing
(Superseded to 02001855)

$118.99

$

In Stock, only 3 left!

0

Cub Cadet 01000308

Bearing Sleeve
(Superseded to 741-04555)

Note: (not shown)

$16.99

$

In Stock, only 2 left!

0

Cub Cadet 01006382

Decal, Idler Location

Note: (not shown)

$

$

Not available
