M60-KH (53AH5BDX750) - Cub Cadet 60" Tank Zero-Turn Mower, 27hp Kohler Electrical Assembly Kohler Parts Diagram

60" Tank Zero-Turn Mower, 27hp Kohler

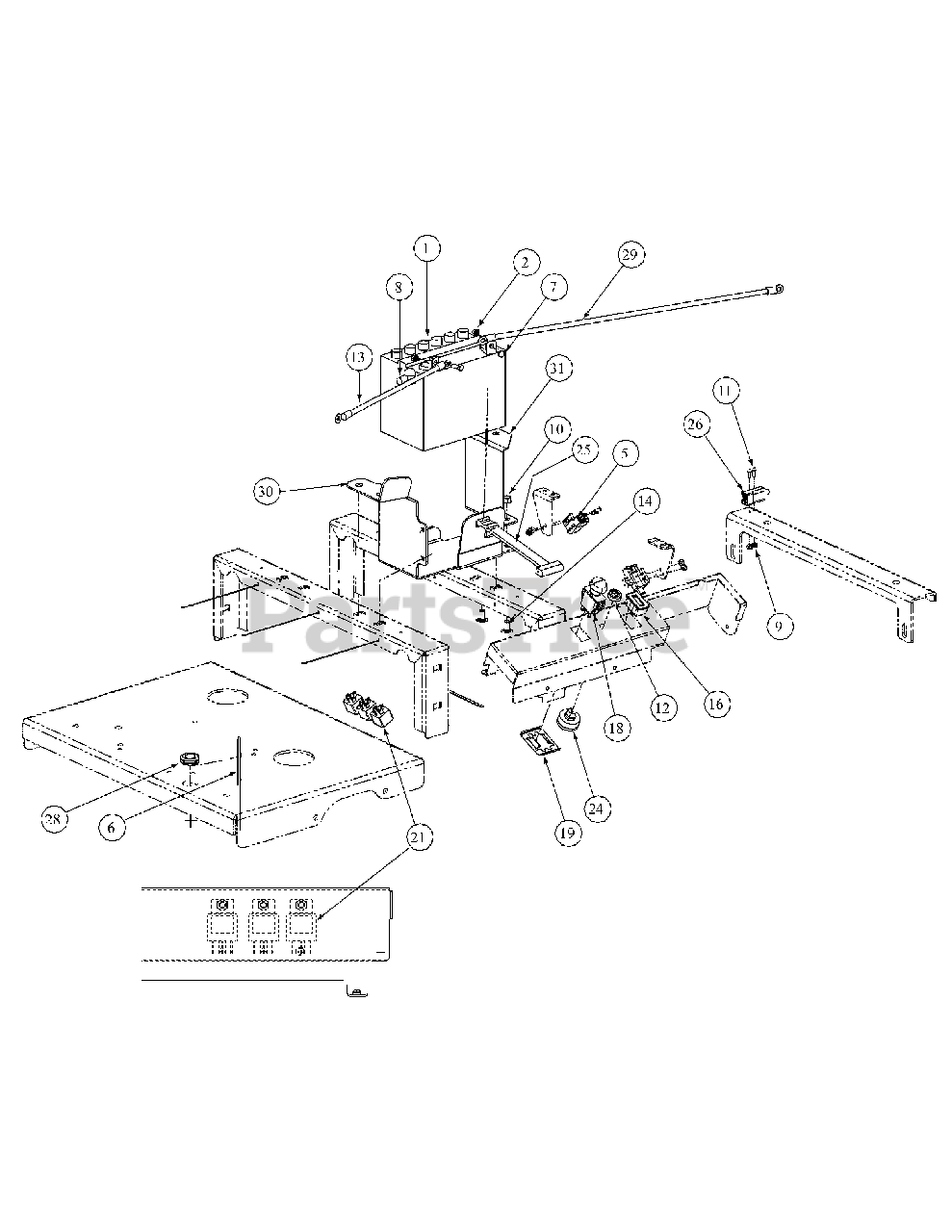

Electrical Assembly Kohler Parts Diagram

  • Title
1

Cub Cadet 925-1707D

Battery, 12V 225CCA 30 Min

$

$

Not available

2

Cub Cadet 912-3027

Lock Nut, 1/4-20

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 00012242

Switch, Safety
(Superseded to 925-04039)

$24.99

$

In Stock, Qty 8

0

6

Cub Cadet 725-0157

Tie, Cable, 3/16 x .05 x 7.4"

$3.99

$

In Stock, Qty 20+

0

7

Cub Cadet 00013131

Screw, Hex, Cap, 1/4-20 x .75

$6.49

$

In Stock, only 1 left!

0

8

Cub Cadet 00013258

Boot, 1" OD Rubber Battery-PST, Red

$9.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 00014608

Lock Nut, Nylon Insert
(Superseded to 712-05003)

$3.49

$

In Stock, only 3 left!

0

10

Cub Cadet 00022560

Nut, Hex, Flange Lock, 3/8-16
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 00030906

Screw, Phillips Head, Machine, 10-32 x 5/8

$6.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 00032097

Nut, W/Cap, 5/8-32 Ignition
(Superseded to 00032097P)

$

$

Not available

13

Cub Cadet 00012289

Cable, Battery, Red, 36"

$

$

Not available

14

Cub Cadet 710-3178

Carriage Bolt, 3/8-16 x .75 LG.

$4.49

$

In Stock, Qty 20+

0

16

Cub Cadet 925-04893

Meter, Hour
(Superseded to 925-04893A)

$165.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 01002111

Switch, Electric, PTO
(Superseded to 925-1716A)

$73.99

$

In Stock, Qty 13

0

19

Cub Cadet 783-0462

Bracket, PTO Switch Retainer

$

$

Not available

21

Cub Cadet 01002251

Relay, 12V 40A

$57.99

$

In Stock, only 2 left!

0

24

Cub Cadet 01003581P

Switch, Ignition, 6 Pin

$69.99

$

In Stock, Qty 7

0

24

Cub Cadet 725-1341B

Key, Ignition

$10.99

$

In Stock, only 1 left!

0

25

Cub Cadet 723-0444

Strap, Battery

$22.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 01003712

Switch, Plunger
(Superseded to 725-3223)

$18.99

$

In Stock, only 1 left!

0

28

Cub Cadet 01004040

Grommet, .75 ID
(Superseded to 735-04285)

$3.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 01004078

Cable, Battery Red, 28"

$38.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 01004514

Mount Bracket, Battery

$

$

Not available

31

Cub Cadet 01004559

Mount Bracket, Battery

$

$

Not available

Cub Cadet 710-0599

Self-Tapping Screw

Note: (not shown)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 01001811

Hourmeter, Harness
(Superseded to 929-04195)

Note: (not shown)

$8.49

$

Usually ships in 3-6 days

0

Cub Cadet 01006809

Harness Assembly
(Superseded to 01006809P)

Note: (not shown)

$

$

Not available
