M60-KH (53AB5BDX750) - Cub Cadet 60" Tank Zero-Turn Mower, 27hp Kohler CV740S-0015 Blower Housing & Baffles Parts Diagram

60" Tank Zero-Turn Mower, 27hp Kohler

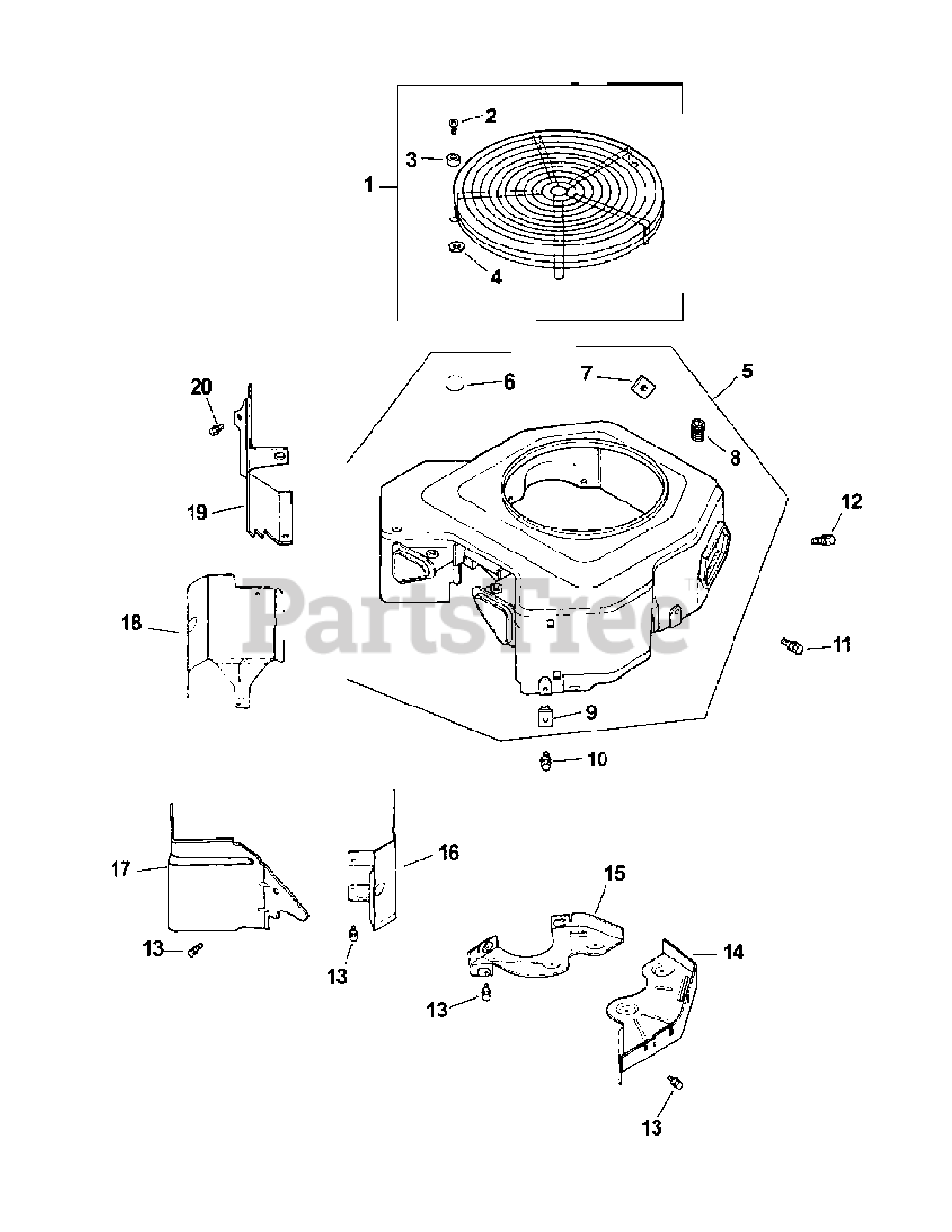

CV740S-0015 Blower Housing & Baffles Parts Diagram

  • Title

1

Cub Cadet KH-24-755-94-S

Guard Kit

$86.99

$

In Stock, only 1 left!

0

2

Cub Cadet KH-24-086-39-S

Pan Head Screw
(Superseded to KH-25-086-160-S)

$2.99

$

In Stock, Qty 7

0

3

Cub Cadet KH-24-112-09-S

Spacer
(Superseded to KH-25-112-30-S)

$4.49

$

In Stock, only 1 left!

0

4

Cub Cadet KH-24-468-10

Washer

$

$

Not available

5

Cub Cadet KH-24-027-187-S

Blower Housing
(Superseded to KH-24-027-490-S)

$148.99

$

Usually ships in 2-5 days

0

6

Cub Cadet KH-25-139-16

Button Plug (9/16")

$

$

Not available

7

Cub Cadet KH-25-100-37-S

Plastic Nut

$2.49

$

In Stock, Qty 7

0

8

Cub Cadet KH-25-086-43

Set Screw

$

$

Not available

9

Cub Cadet KH-24-100-02

Plastic Nut

$

$

Not available

10

Cub Cadet KH-M-545020-S

Hex Flange Screw (M5 x .8 x 20)
(Superseded to KH-25-086-473-S)

$2.49

$

In Stock, Qty 20+

0

11

Cub Cadet KH-M-545016-S

Hex Flange Screw (M5 x .8 x 16)
(Superseded to KH-25-086-398-S)

$3.99

$

Usually ships in 2-5 days

0

12

Cub Cadet KH-M-551016-S

Hex Flange Screw (M5 x .8 x 16)

$2.49

$

In Stock, only 2 left!

0

13

Cub Cadet KH-M-645016-S

Hex Flange Screw (M6 x 1.0 x 16)

$3.99

$

In Stock, Qty 13

0

14

Cub Cadet KH-24-146-19-S

Backing Plate #2 Side
(Superseded to KH-24-146-59-S)

$15.99

$

In Stock, only 1 left!

0

15

Cub Cadet KH-24-146-20-S

Backing Plate #1 Side

$

$

Not available

16

Cub Cadet KH-24-063-88-S

Cylinder Barrel Baffle # 2 Side

$28.99

$

Usually ships in 2-5 days

0

17

Cub Cadet KH-24-063-69-S

Valley Baffle # 2 Side
(Superseded to KH-24-063-94-S)

$9.49

$

Usually ships in 2-5 days

0

18

Cub Cadet KH-24-063-85-S

Cylinder Barrel Baffle # 1 Side

$17.99

$

In Stock, only 1 left!

0

19

Cub Cadet KH-24-063-60-S

Valley Baffle # 1 Side

$

$

Not available

20

Cub Cadet KH-M-0545010

Hex Flange Screw (M5 x .8 x 10)

$

$

Not available

Cub Cadet KH-24-332-01-S

Threaded Insert

Note: (not shown)

$

$

Not available

Cub Cadet KH-24-113-123-S

27 HP Decal

Note: (not shown)

$25.99

$

In Stock, only 1 left!

0
