M60-KH (53AB5BAX150) - Cub Cadet 60" Tank Zero-Turn Mower, 25hp Kohler CV25-69558 Ignition & Electrical Parts Diagram

60" Tank Zero-Turn Mower, 25hp Kohler

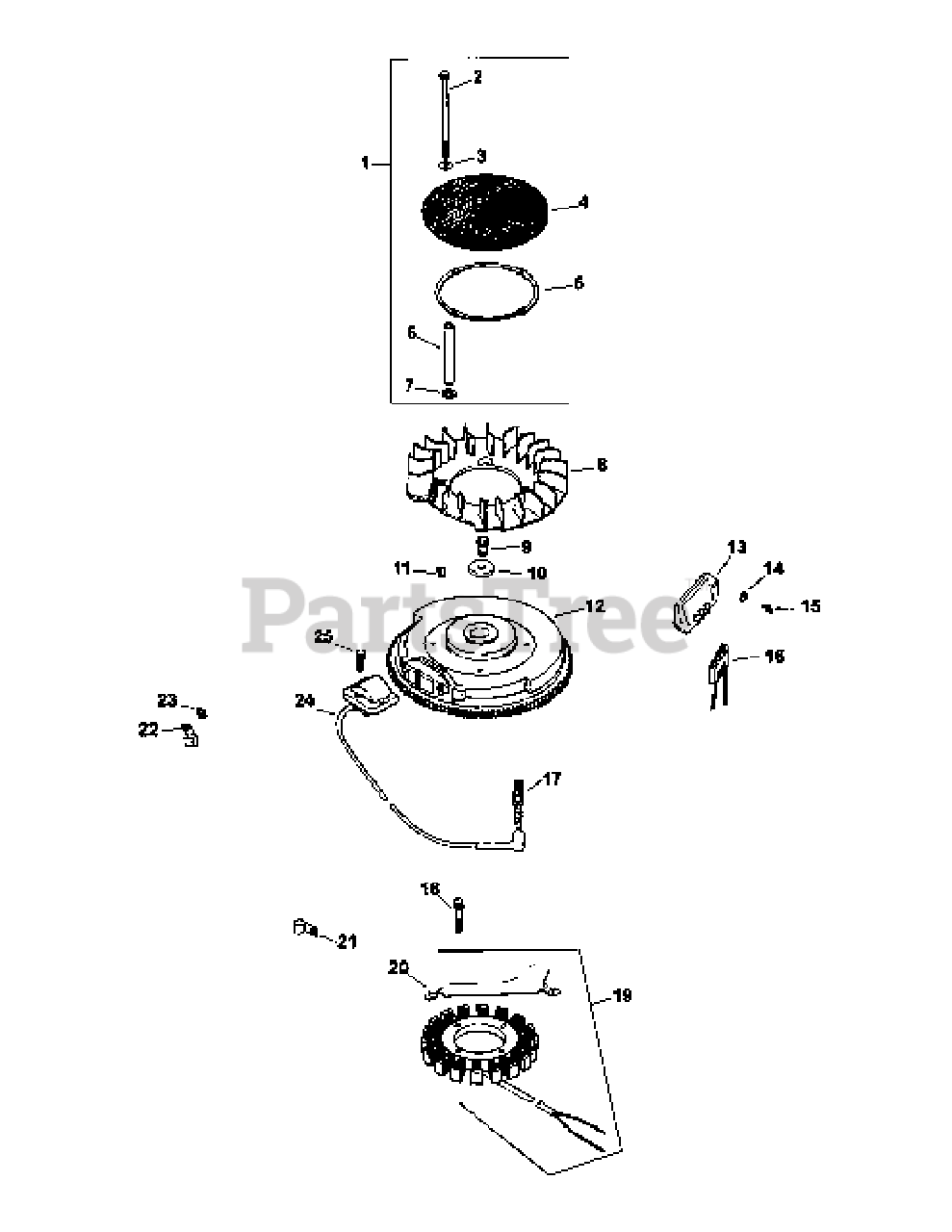

CV25-69558 Ignition & Electrical Parts Diagram

  • Title

1

Cub Cadet KH-24-755-79

Kit, Chopper Screen

$

$

Not available

2

Cub Cadet KH-M-603100

Screw, Hex Flange M10x1.0x100

$

$

Not available

3

Cub Cadet KH-X-25-53

Washer, Plain 1/4"

$

$

Not available

4

Cub Cadet KH-24-162-41-S

Screen, Grass

$24.99

$

In Stock, only 1 left!

0

5

Cub Cadet KH-24-141-06

Ring, Support
(Superseded to KH-25-141-08-S)

$5.49

$

Usually ships in 2-5 days

0

6

Cub Cadet KH-24-112-14

Spacer, Grass Screen

$

$

Not available

7

Cub Cadet KH-24-468-11

Washer, Spring 10 mm

$

$

Not available

8

Cub Cadet KH-24-157-16-S

Fan
(Superseded to KH-24-755-253-S)

$46.99

$

In Stock, only 4 left!

0

9

Cub Cadet KH-25-086-361-S

Screw, Hex Flange M10x1.5x46

$3.99

$

In Stock, Qty 12

0

10

Cub Cadet KH-12-468-03

Washer, Plain 3/8"

$

$

Not available

11

Cub Cadet KH-X-42-15

Key

$

$

Not available

12

Cub Cadet KH-24-025-57-S

Flywheel

$372.99

$

Usually ships in 2-5 days

0

13

Cub Cadet KH-41-403-10-S

Rectifier-Regulator
(Superseded to KH-25-403-37-S)

$

$

Not available

14

Cub Cadet KH-X-25-92

Washer, Plain 3/16"

$

$

Not available

15

Cub Cadet KH-24-086-18

Screw, Phillips hd. 11-16x7/8

$

$

Not available

16

Cub Cadet KH-25-155-41-S

Connector 3 contact

$24.99

$

In Stock, only 1 left!

0

17

Cub Cadet 759-3336

Spark Plug
(Superseded to RC12YC)

$4.49

$

In Stock, Qty 20+

0

18

Cub Cadet KH-M-548025-S

Screw, Hex Cap M5x0.8x25
(Superseded to KH-25-086-402-S)

$2.49

$

In Stock, only 2 left!

0

19

Cub Cadet KH-237878

Kit, 15 Amp Stator

$149.99

$

In Stock, Qty 7

0

20

Cub Cadet KH-24-126-71

Bracket, Stator Wire
(Superseded to KH-24-126-139-S)

$15.99

$

Usually ships in 2-5 days

0

21

Cub Cadet KH-47-154-01-S

Clip, Cable

$5.49

$

In Stock, only 4 left!

0

22

Cub Cadet KH-48-154-02

Clip, Cable

$

$

Not available

23

Cub Cadet KH-X-63-S

Washer, Plain 1/4"

Note: NLA

$

$

Currently unavailable

24

Cub Cadet KH-24-584-36-S

Module, Ignition

$102.99

$

In Stock, only 1 left!

0

25

Cub Cadet KH-M-561025-S

Screw, Thread Forming M5x0.8x25

Note: NLA

$2.49

$

Usually ships in 2-5 days

0

26

Cub Cadet KH-M-448010

Screw Hex Flange M4x0.7x10

$

$

Not available

27

Cub Cadet KH-24-584-10-S

Module, Speed Advance

$

$

Not available

Cub Cadet KH-24-518-12-S

Lead, Black 4"

Note: (not shown)

$4.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-X-22-11

Washer, Plain 1/4"

Note: (not shown)

$

$

Not available

Cub Cadet KH-25-086-43

Screw, Set

Note: (not shown)

$

$

Not available

Cub Cadet KH-15-452-01-S

Terminal

Note: (not shown)

$4.49

$

Usually ships in 2-5 days

0

Cub Cadet KH-24-176-150-S

Harness, Wiring

Note: (not shown)

$44.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-24-518-09

Lead, green 19-1/2"

Note: (not shown)

$

$

Not available

Cub Cadet KH-25-518-34-S

Lead, violet 36-1/2"

Note: (not shown)

$6.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-41-037-10-S

Nameplate, Service

Note: (not shown)

$8.99

$

In Stock, only 4 left!

0

Cub Cadet KH-12-454-03-S

Tie, Wire

Note: (not shown)

$3.49

$

Usually ships in 2-5 days

0

Cub Cadet KH-25-454-03-S

Tie, Wire

Note: (not shown)

$2.49

$

Usually ships in 2-5 days

0
