M60-CT (53AL8CT6050) - Cub Cadet 60" Tank Zero-Turn Mower, 28hp Caterpillar Diesel Fuel Tank Assembly Parts Diagram

60" Tank Zero-Turn Mower, 28hp Caterpillar Diesel

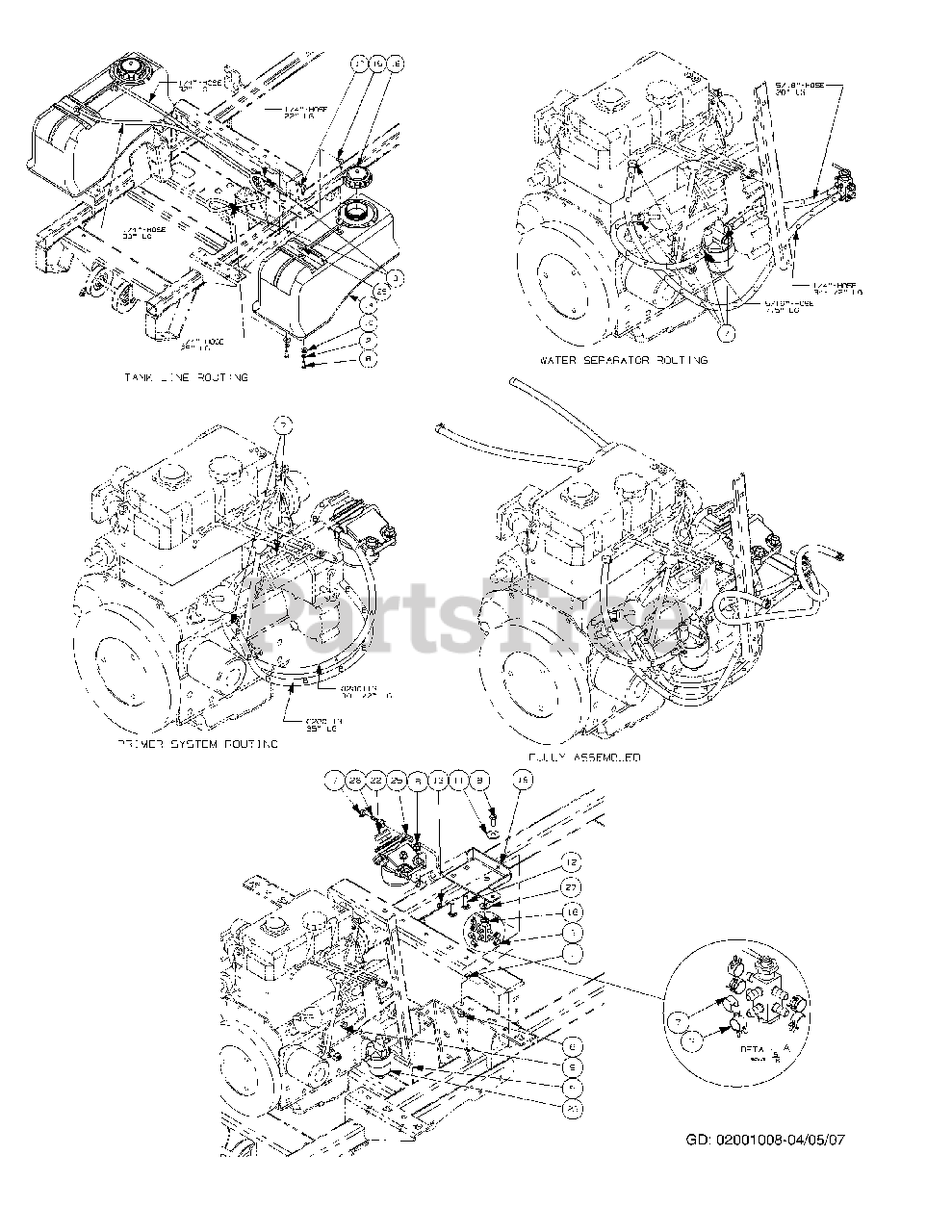

Fuel Tank Assembly Parts Diagram

  • Title
1

Cub Cadet 710-3013

Hex Cap Screw, 1/4-20 x 1/2

$4.99

$

In Stock, only 1 left!

0

2

Cub Cadet 936-0169

Lock Washer, 3/8
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

3

Cub Cadet 00012235

Clamp, Union
(Superseded to 726-04123A)

$3.99

$

In Stock, Qty 6

0

4

Cub Cadet 725-0157

Cable Tie

$3.99

$

In Stock, only 2 left!

0

5

Cub Cadet 00013198

Hex Cap Screw, 5/16-18 x 2.00
(Superseded to 710-3103)

$4.49

$

In Stock, only 4 left!

0

6

Cub Cadet 00022560

Hex Nut, 3/8-16, Lock Flange
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 01000215

Hose Clamp

$

$

Not available

8

Cub Cadet 710-3001

Hex, Cap Screw, 3/8-16, .88

$7.49

$

In Stock, Qty 9

0

9

Cub Cadet 712-3004A

Nut, Lock, HexFlange, 5/16-18

$3.99

$

In Stock, Qty 20+

0

10

Cub Cadet 736-3052

Flat Washer, .406 ID, 1.0 OD, .105

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 936-0133

Washer, 1.25 x .411 x .100
(Superseded to 736-0133)

$

$

Not available

12

Cub Cadet 710-3034

Carriage Screw, 3/8-16 x 1.25

$3.99

$

In Stock, Qty 5

0

13

Cub Cadet 912-3027

Lock Nut, 1/4-20

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 02003843

Fuel Tank

$238.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 01009809P

Fuel Fitting, Return

$48.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 01009812

Shut Off Fuel Valve

$171.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 01009821P

Fuel Fitting, Pickup
(Superseded to 751-11986B)

$

$

Not available

18

$

$

Not available

19

Cub Cadet 02001061

Fuel Filter Mounting Bracket

$

$

Not available

20

Cub Cadet n/a

1/4" Hose, Carb BioDiesel (162.50 inches)

Note: (purchase locally)

$

$

Currently unavailable

21

Cub Cadet n/a

5/16" Hose, Carb BioDiesel (93.00 inches)

Note: (purchase locally)

$

$

Currently unavailable

22

Cub Cadet n/a

Fuel Strainer

Note: (purchase through caterpillar)

$

$

Currently unavailable

23

Cub Cadet n/a

Water Filter

Note: (purchase through caterpillar)

$

$

Currently unavailable

24

Cub Cadet 02002253

Fuel Tank Grommet

$4.99

$

In Stock, only 2 left!

0

25

Cub Cadet 02002601

Adaptor, M14 x 1.5 ORB x 4JIC MA

$

$

Not available

26

Cub Cadet 02002602

Adaptor, 4JIC FE x 1/4 Barb

$

$

Not available

27

Cub Cadet 01004340

Lock Washer

$

$

Not available
