M60-CT (53AB5JEX750) - Cub Cadet 60" Tank Zero-Turn Mower, 28hp Caterpillar Diesel Seat Assembly Parts Diagram

60" Tank Zero-Turn Mower, 28hp Caterpillar Diesel

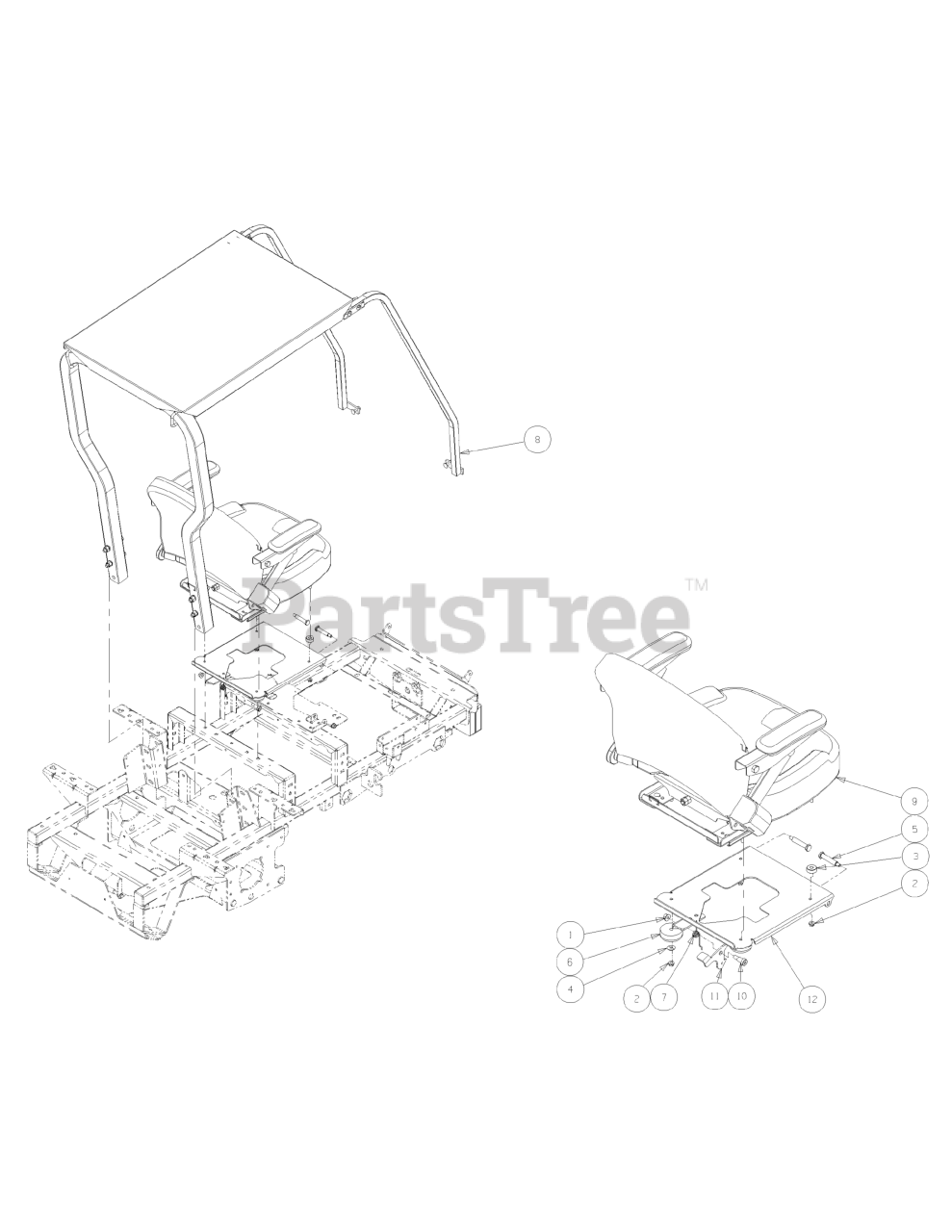

Seat Assembly Parts Diagram

  • Title

1

Cub Cadet 00022560

Nut, Hex 3/8-16 Flange Lock
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

2

Cub Cadet 712-3004A

Lock Nut, Hex Flange, 5/16-18

$3.99

$

In Stock, Qty 20+

0

3

Cub Cadet 01000937

Spacer, .412 x 1.125 x .44

$

$

Not available

4

Cub Cadet 936-0425

Washer
(Superseded to 736-0425)

$

$

Not available

5

Cub Cadet 01002634

Shoulder Screw, .50x2.345, 3/8-16

$25.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 01002753

Grommet, 2.5 OD x 1.0 Long
(Superseded to 735-04286)

$8.99

$

In Stock, Qty 12

0

7

Cub Cadet 01008141P

Deck Lift Spring, Right Hand

$

$

Not available

8

Cub Cadet 01009432

Rops Assembly includes:

$

$

Not available

8

Cub Cadet 02002713

Canopy

Note: (not shown)

$

$

Not available

9

Cub Cadet 02001122

Seat Assembly, w/ Suspension & Seat Belts

$1063.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 02002707

Seat Belt

Note: (not shown)

$

$

Not available

10

Cub Cadet 02002091

Shoulder Bolt, 1/2 x 3/4, 3/8-16

$

$

Not available

11

Cub Cadet 02002418

Seat Latch

$

$

Not available

12

Cub Cadet 02002417

Seat Bracket

$

$

Not available

Cub Cadet 01008364

Armrest Kit

Note: (not shown)

$

$

Not available

Cub Cadet 02000769

Seat Back Cover

Note: (not shown)

$

$

Not available

Cub Cadet 02000771

Seat Bottom Cover

Note: (not shown)

$

$

Not available
