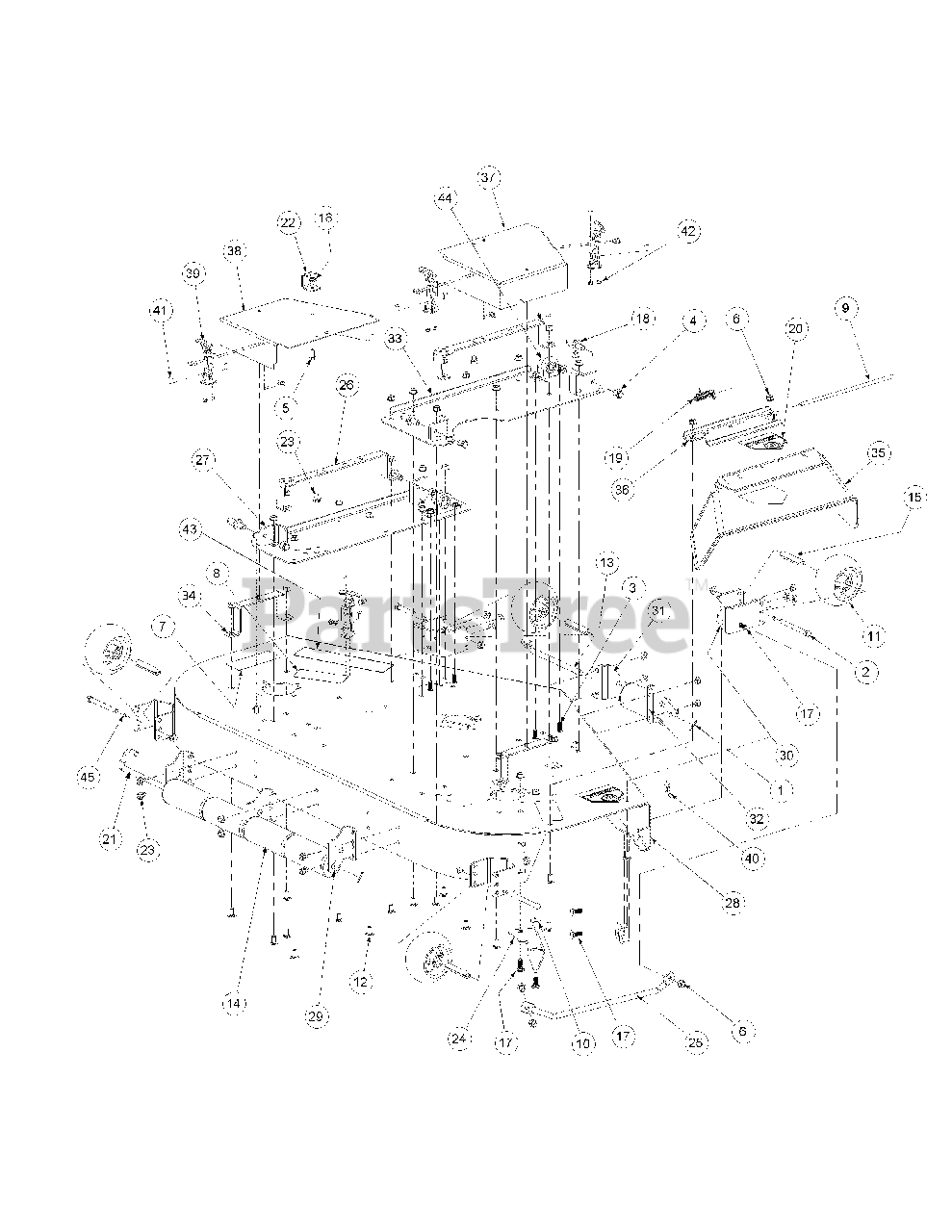

M54-KW (53DB5DBW750) - Cub Cadet 54" Tank Zero-Turn Mower, 23hp Kawasaki Fabricated Deck Assembly Parts Diagram

54" Tank Zero-Turn Mower, 23hp Kawasaki

Fabricated Deck Assembly Parts Diagram

  • Title

1

Cub Cadet 00003107

Cotter Pin, .125 Dia x 1.0
(Superseded to 914-0115)

$3.99

$

In Stock, Qty 20+

0

2

Cub Cadet 00011925

Hex Cap Screw, 3/8-16, 3.75
(Superseded to 710-0411)

$8.49

$

In Stock, Qty 17

0

3

Cub Cadet 710-3034

Carriage Screw, 3/8-16 x 1.25

$3.99

$

In Stock, Qty 5

0

4

Cub Cadet 00012428

Lock Nut, Nylon Insert, 1/2-13

$6.99

$

In Stock, only 2 left!

0

5

Cub Cadet 00013406

Hex Cap Screw, 5/16-18 x 3/4
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 00022560

Hex Nut, 3/8-16 Flange Lock
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 00030633

Decal Rotating Blade

$

$

Not available

8

Cub Cadet 00030635

Decal, Warning Shield Missing
(Superseded to 777S33782)

$7.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 747-3384

Defllector Chute Rod

$27.99

$

In Stock, only 1 left!

0

10

Cub Cadet 00083192

Idler Washer
(Superseded to 736-0258)

$4.49

$

In Stock, only 3 left!

0

11

Cub Cadet 634-3159

Complete Wheel, 5.00 Dia.

$34.99

$

In Stock, Qty 20+

0

12

Cub Cadet 710-3178

Carriage Bolt, 3/8-16 x .75 Lg.

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 911-3314

Roller Pin. 1/2 Dia. x 7.31 Lg.
(Superseded to 711-3314A)

$25.99

$

In Stock, Qty 11

0

14

Cub Cadet 731-3005

Front Roller

$28.99

$

In Stock, Qty 20+

0

15

Cub Cadet 750-3193

Wheel Spacer

$18.99

$

In Stock, Qty 20+

0

16

Cub Cadet 712-3004A

Hexflange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

17

Cub Cadet 01000643

Carriage Bolt, 3/8-16 x 1

$5.49

$

In Stock, Qty 7

0

18

Cub Cadet 01001745

Pin, 5/8 Dia. x 1.2 Lg.
(Superseded to 711-05604)

$11.99

$

In Stock, Qty 14

0

19

Cub Cadet 732-04797

Spring Torsion, 0.4 ID x 2.16 LG

$11.99

$

In Stock, only 4 left!

0

20

Cub Cadet 01002166

Decal, Danger Hands and Feet

$12.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 02002799

Roller Pin
(Superseded to 711-05664)

$22.99

$

In Stock, only 1 left!

0

22

Cub Cadet 01004109

Tension Rod Stop Bracket

$11.99

$

In Stock, only 1 left!

0

23

Cub Cadet 01004304

Hex Index Washer Screw, 3/8-16, .5
(Superseded to 710-0773)

$7.49

$

In Stock, only 3 left!

0

24

Cub Cadet 01009296-0637

Chute Bracket

$49.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 01008644

Finger Guard

$36.99

$

In Stock, only 1 left!

0

26

Cub Cadet 01004684-0637

Cover Support

$39.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 01008633

Left Hand Mount, Deck Bracket Assembly

$146.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 01008813

54 Deck Assembly

$2028.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 01004707-0637

Roller Mount Bracket

$23.99

$

In Stock, Qty 13

0

30

Cub Cadet 01005243-0637

Anti-Scalp Wheel, Front Mount Bracket

$57.99

$

In Stock, only 2 left!

0

31

Cub Cadet 01005244

Left Hand Front Roller Mount Bracket

Variations

Cub Cadet 01005244-0637

Roller Bracket, LH - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 01005244-4021

Roller Bracket, LH - CUB YELLOW 2 (4021)

$

$

Not available

$

$

32

Cub Cadet 01005245-0637

Right Hand Front Roller Mount Bracket

$36.99

$

In Stock, Qty 5

0

33

Cub Cadet 01008635

Deck Bracket Assembly

$

$

Not available

34

Cub Cadet 01005438-0637

Outer Belt Cover Support Assembly

$

$

Not available

35

Cub Cadet 01006693P

Deflector Chute

$68.99

$

In Stock, Qty 8

0

36

Cub Cadet 01006748-0637

Deflector Chute Bracket

$35.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 02000446

Right Hand Belt Deck Cover

$

$

Not available

38

Cub Cadet 02000445

Left Hand Belt Deck Cover

$

$

Not available

39

Cub Cadet 935-04038

T-Handle Draw Latch

$15.99

$

In Stock, Qty 14

0

40

Cub Cadet 01002129

Decal, 54"

$

$

Not available

41

Cub Cadet 00017778

Phillips Head Screw, 10-32

$4.99

$

In Stock, only 2 left!

0

42

Cub Cadet 00014608

Lock Nut, Nylon Insert, 10-32
(Superseded to 712-05003)

$3.49

$

In Stock, only 3 left!

0

43

Cub Cadet 01006086

Mower Deck Label

$

$

Not available

44

Cub Cadet 02000109

Pillow Block

$126.99

$

In Stock, only 3 left!

0

45

Cub Cadet 00012158

Flat Washer, 3/8

$4.49

$

In Stock, Qty 9

0
