M54-KW (53DB5DBW750) - Cub Cadet 54" Tank Zero-Turn Mower, 23hp Kawasaki Control Assembly Parts Diagram

54" Tank Zero-Turn Mower, 23hp Kawasaki

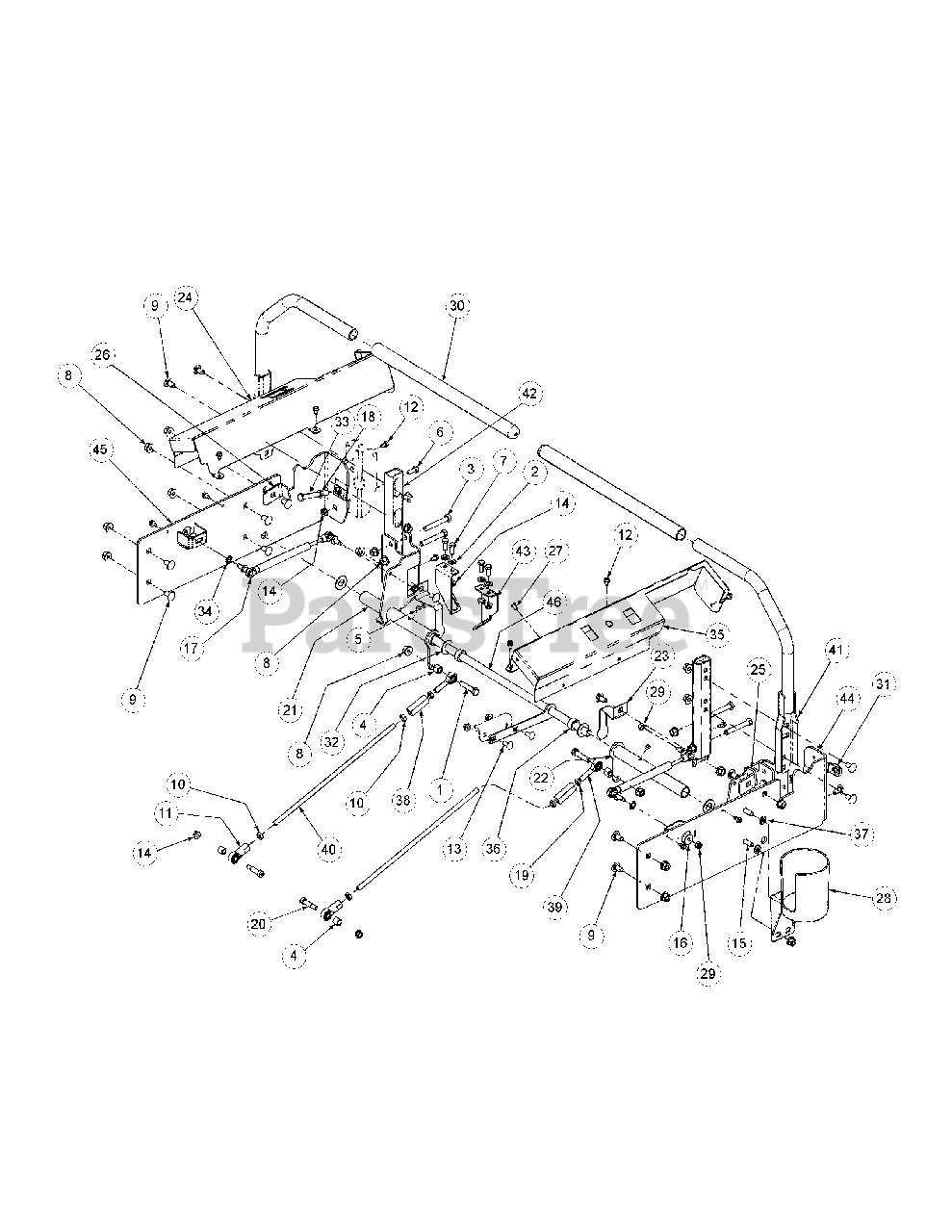

Control Assembly Parts Diagram

  • Title

1

Cub Cadet 00008495

Capscrew, 3/8-16 x 1-3/4

$6.99

$

In Stock, Qty 8

0

2

Cub Cadet 00009812

Flat Washer, 5/16

$

$

Not available

3

Cub Cadet 00011861

HHCS, 3/8-16, 2.25
(Superseded to 710-0859)

$6.99

$

In Stock, Qty 17

0

4

Cub Cadet 01007312

Spacer, .625 OD x .385 ID x 1/2

$22.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 737-3004

Grease Fitting, 90°

$11.99

$

In Stock, Qty 6

0

6

Cub Cadet 00013092

HHCS, 5/16-18 x 1.0
(Superseded to 710-0376)

$3.99

$

In Stock, Qty 20+

0

7

Cub Cadet 00013406

Hex, Cap Screw, 5/16-18 x 3/4
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 00022560

Hex Nut, 3/8-16, Lock Flange
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 710-3178

Carriage Bolt, 3/8-16 x .75

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 912-3001

Hex Jam Nut, 3/8-24

$6.99

$

In Stock, Qty 17

0

11

Cub Cadet 723-04080

B/Joint, 3/8-24, Right Hand Female

$41.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 710-0599

Screw, TT, 1/4-20, 0.5, Hex Index Washer

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 00020508

Carriage Bolt, 5/16-18 x .75

$6.99

$

In Stock, only 3 left!

0

14

Cub Cadet 712-3004A

Nut, Lock, HexFlange, 5/16-18

$3.99

$

In Stock, Qty 20+

0

15

Cub Cadet 01000643

Carriage Bolt, 3/8-16 x 1

$5.49

$

In Stock, Qty 7

0

16

Cub Cadet 936-0425

Belle Washer, .325 x .930 x .045
(Superseded to 736-0425)

$

$

Not available

17

Cub Cadet 02003653

Cylinder Return to Neutral

$119.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 01002511

Nut, 3/8-16, Jam

$5.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 01002986

Nut, 3/8-24, Jam, LH Third

$6.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 02000069

Screw, Shoulder Control Rod

$

$

Not available

21

Cub Cadet 01003044

Hub Assy, Control LH Bearing
(Superseded to 01003044P)

$

$

Not available

21

Cub Cadet 01004265

Bearings

Note: (not shown)

$20.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 01003045

Hub Assy, Control RH Bearing
(Superseded to 01003045P)

$

$

Not available

22

Cub Cadet 01004265

Bearings

Note: (not shown)

$20.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 01003011

Lever, Safety Switch

$37.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 01004889

Control Panel, LH
(Superseded to 01003099-4021)

$

$

Not available

25

Cub Cadet 02002017

Stop, RH

$

$

Not available

26

Cub Cadet 02002015

Stop, LH

$

$

Not available

27

Cub Cadet 710-3256

Screw Button Head, 1/4-20 x .5

$10.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 02001311

Cup Holder Assembly

$68.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 01003561

Nut, Hex, Center Lock, M8

$

$

Not available

30

Cub Cadet 01003715

Grip, 1.0

$

$

Not available

31

Cub Cadet 01003947

U-Nut, 3/8-16, .75

$7.49

$

Usually ships in 3-6 days

0

32

Cub Cadet 01004003

Flat Washer, 5/8 Nylon
(Superseded to 736-04602)

$3.99

$

In Stock, Qty 20+

0

33

Cub Cadet 01004127

HHCS, 3/8-16, 3.00
(Superseded to 710-0521)

$5.49

$

In Stock, Qty 11

0

34

Cub Cadet 01005851

External Washer, 3/8
(Superseded to 736-0148)

$3.99

$

In Stock, Qty 20+

0

35

Cub Cadet 01004890

Control Panel, RH
(Superseded to 01006343-4021)

$111.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 01006350

Shaft Collar

$24.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 01008225

Push Retainer
(Superseded to 712-0229)

$3.99

$

In Stock, Qty 20+

0

38

Cub Cadet 01007734

Turnbuckle

$31.99

$

Usually ships in 3-6 days

0

39

Cub Cadet 01008367

B/Joint, 3/8-24, Left Hand Female

$46.99

$

Usually ships in 3-6 days

0

40

Cub Cadet 01008518

Rod Connector 3/8 OD x 14.25

$

$

Not available

41

Cub Cadet 01010190

Lapbar, Handle Assembly

$

$

Not available

42

Cub Cadet 01010176

Mounting Handle

$

$

Not available

43

Cub Cadet 02000164

Switch Mounting Bracket, Lapbar

$

$

Not available

44

Cub Cadet 02000178

Side Panel, Control, Right

$

$

Not available

45

Cub Cadet 02000179

Side Panel, Control, Left

$

$

Not available

46

Cub Cadet 02002014

Shaft Control Brake Steering

$97.99

$

Usually ships in 3-6 days

0
