M54-KW (53BB5DBW150) - Cub Cadet 54" Tank Zero-Turn Mower, 23hp Kawasaki (2003) FH680V-AS29 Carburetor Parts Diagram

54" Tank Zero-Turn Mower, 23hp Kawasaki

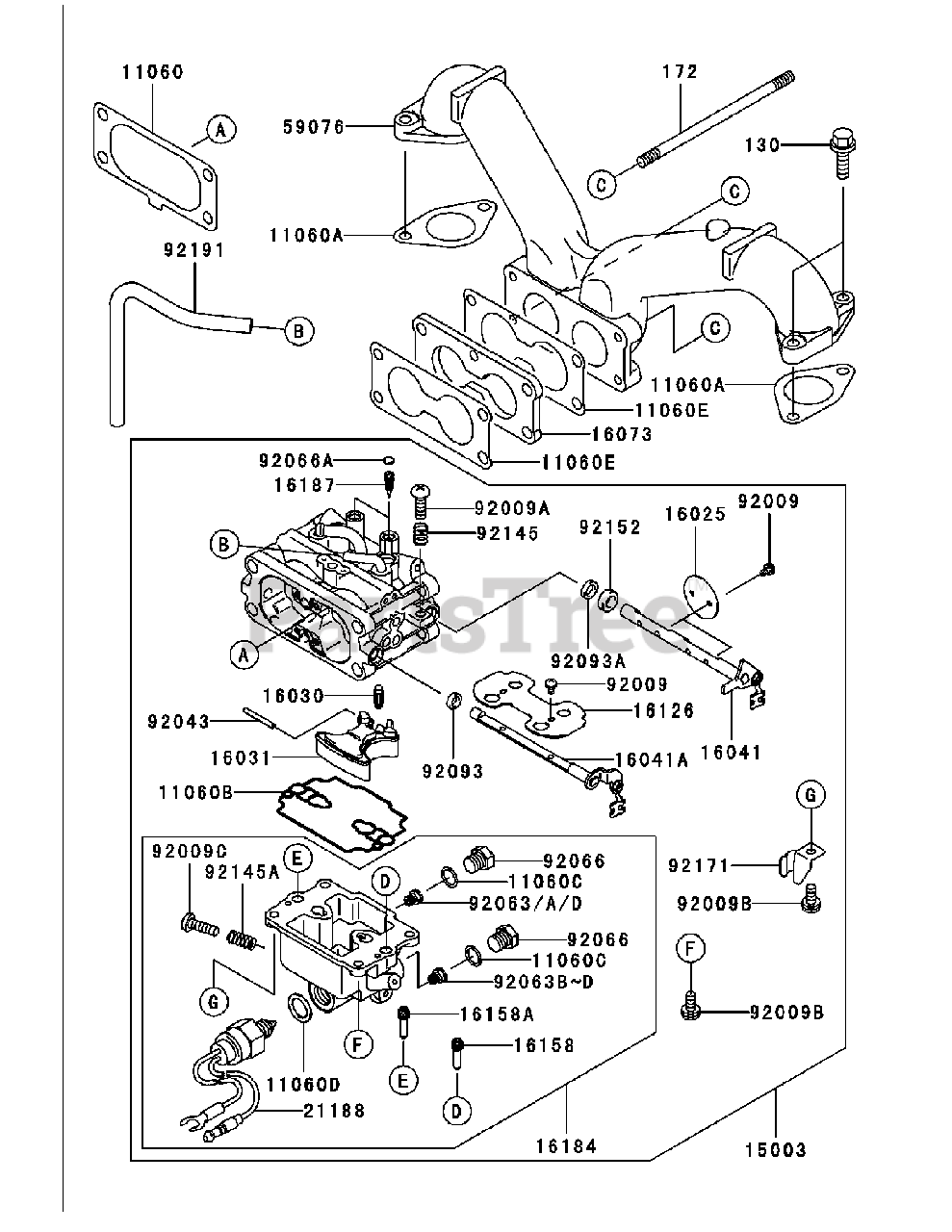

FH680V-AS29 Carburetor Parts Diagram

  • Title
11060

Cub Cadet KM-11060-7009

GASKET,AIR FILTER

$2.49

$

In Stock, Qty 20+

0

11060A

Cub Cadet KM-11060-7011

GASKET,MANIFOLD

$2.49

$

In Stock, Qty 20+

0

11060B

Cub Cadet KM-11060-7018

GASKET,FLOAT CHAMBER

$1.49

$

In Stock, Qty 20+

0

11060C

Cub Cadet KM-11060-7019

GASKET,MAIN PLUG

$1.49

$

In Stock, Qty 12

0

11060D

Cub Cadet KM-11060-7020

GASKET,SOLENOID

$0.99

$

In Stock, Qty 9

0

11060E

Cub Cadet KM-11060-7024

GASKET,CARBURETOR

$11.99

$

In Stock, Qty 20+

0

15003

Cub Cadet KM-15003-7073

CARBURETOR-ASSY

$469.99

$

Usually ships in 2-5 days

0

16025

Cub Cadet KM-16025-7003

VALVE-THROTTLE

$25.99

$

Usually ships in 2-5 days

0

16030

$18.99

$

In Stock, Qty 20+

0

$29.99

$

In Stock, Qty 6

0

16041

Cub Cadet KM-16041-7004

SHAFT-CARBURETOR

$

$

Not available

16041A

Cub Cadet KM-16041-7059

SHAFT-CARBURETOR,CHOKE

$41.99

$

In Stock, Qty 7

0

16073

$4.49

$

In Stock, Qty 20+

0

16126

$6.49

$

Usually ships in 2-5 days

0

16158

$

$

Not available

16158A

$24.99

$

In Stock, only 2 left!

0

16184

Cub Cadet KM-16184-7010

CHAMBER-ASSY-FLOAT

$

$

Not available

16187

$13.99

$

In Stock, only 2 left!

0

21188

$172.99

$

In Stock, only 2 left!

0

59076

Cub Cadet KM-59076-7011

MANIFOLD-INTAKE
(Superseded to KM-59076-0026)

$125.99

$

In Stock, Qty 10

0

$0.99

$

In Stock, Qty 20+

0

$1.49

$

In Stock, only 4 left!

0

$1.49

$

In Stock, Qty 17

0

92009C

$1.49

$

In Stock, only 3 left!

0

92043

$6.99

$

In Stock, only 3 left!

0

92063

Cub Cadet KM-92063-7017

JET-MAIN,#133,3500FT

Note: (AR)

$19.99

$

Usually ships in 2-5 days

0

92063A

Cub Cadet KM-92063-7018

JET-MAIN,#130,7000FT

Note: (AR)

$

$

Not available

92063B

Cub Cadet KM-92063-7019

JET-MAIN,#139,3500FT

Note: (AR)

$24.99

$

Usually ships in 2-5 days

0

92063C

Cub Cadet KM-92063-7020

JET-MAIN,#134,7000FT

Note: (AR)

$

$

Not available

92063D

Cub Cadet KM-92063-7038

JET-MAIN,#114

$30.99

$

In Stock, only 2 left!

0

92066

Cub Cadet KM-92066-7008

PLUG,MAIN JET

$4.49

$

In Stock, only 1 left!

0

92066A

Cub Cadet KM-92066-7009

PLUG,EXPANSION

$7.99

$

In Stock, Qty 12

0

92093

$2.49

$

In Stock, Qty 12

0

92093A

$2.49

$

In Stock, Qty 17

0

$2.49

$

Usually ships in 2-5 days

0

92145A

$2.49

$

Usually ships in 2-5 days

0

$11.99

$

Usually ships in 2-5 days

0

$

$

Not available

92191

Cub Cadet KM-92191-7023

TUBE,4.76X7.94X215

$

$

Not available

130

Cub Cadet KM-130CA0620

BOLT-FLANGED

$

$

Not available

172

$4.49

$

In Stock, only 2 left!

0
