M54-KW (53BB5DBW150) - Cub Cadet 54" Tank Zero-Turn Mower, 23hp Kawasaki (2003 1/2) FH680V-AS29 Valve & Camshaft Parts Diagram

54" Tank Zero-Turn Mower, 23hp Kawasaki

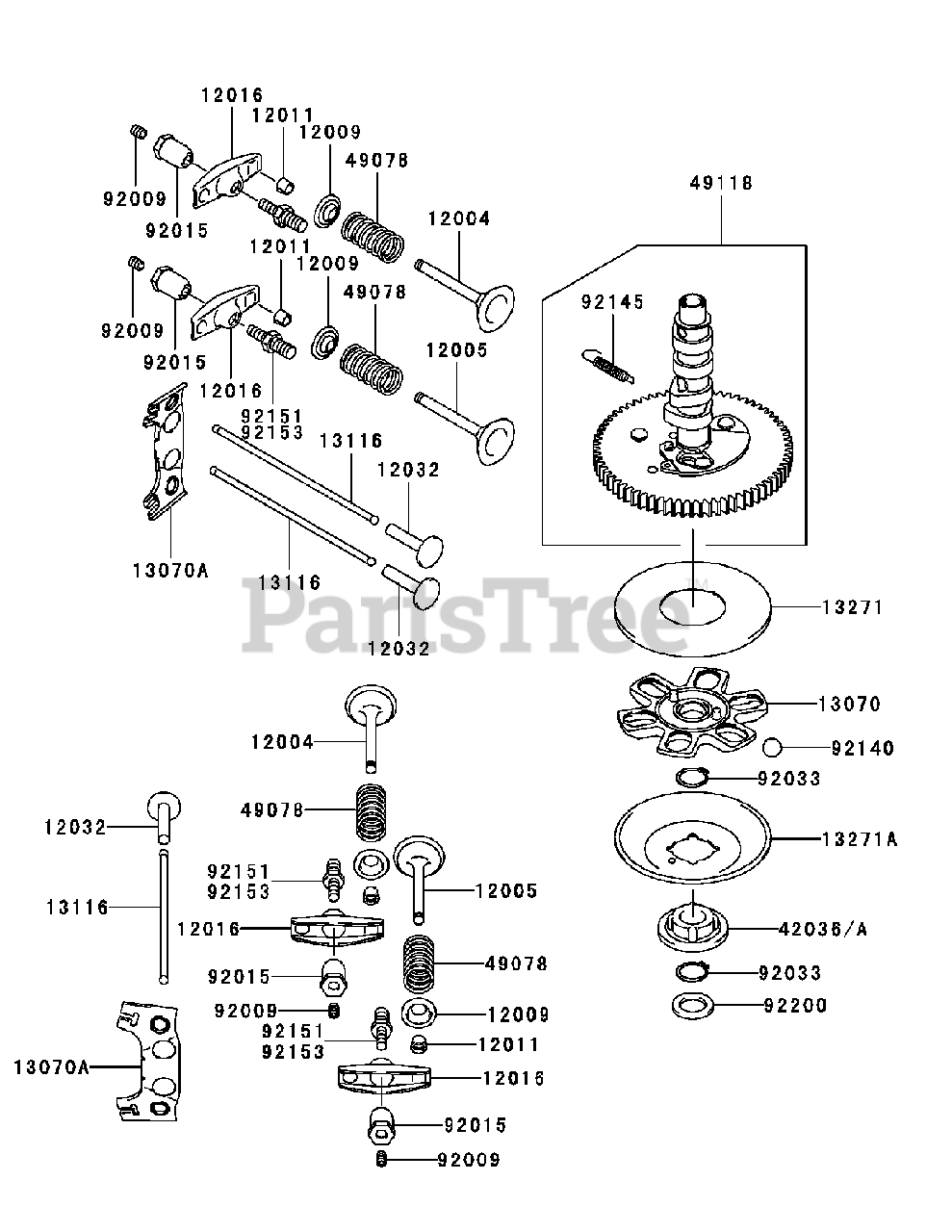

FH680V-AS29 Valve & Camshaft Parts Diagram

  • Title

12004

Cub Cadet KM-12004-7002

VALVE-INTAKE

$18.99

$

In Stock, Qty 20+

0

12005

Cub Cadet KM-12005-7004

VALVE-EXHAUST

$43.99

$

In Stock, Qty 20+

0

12009

Cub Cadet KM-12009-7001

RETAINER-VALVE SPRING

$2.49

$

In Stock, Qty 20+

0

12011

Cub Cadet KM-12011-2056

COLLET

$2.99

$

In Stock, Qty 20+

0

12016

Cub Cadet KM-12016-7007

ARM-ROCKER

$7.99

$

In Stock, Qty 20+

0

12032

Cub Cadet KM-12032-7001

TAPPET

$8.99

$

In Stock, Qty 20+

0

13070

Cub Cadet KM-13070-7004

GUIDE

$5.99

$

In Stock, Qty 20+

0

13070A

Cub Cadet KM-13070-7007

GUIDE

$4.99

$

In Stock, Qty 20+

0

13116

Cub Cadet KM-13116-7002

ROD-PUSH

$4.99

$

In Stock, Qty 20+

0

13271

Cub Cadet KM-13271-7007

PLATE

$5.49

$

In Stock, Qty 12

0

13271A

Cub Cadet KM-13271-7021

PLATE,GOVERNOR

$5.49

$

In Stock, Qty 20+

0

42036

Cub Cadet KM-42036-7010

SLEEVE

$5.99

$

In Stock, Qty 20+

0

42036A

Cub Cadet KM-42036-7010

SLEEVE

$5.99

$

In Stock, Qty 20+

0

49078

Cub Cadet KM-49078-7002

SPRING-ENGINE VALVE

$6.99

$

In Stock, Qty 20+

0

49118

Cub Cadet KM-99999-7074

CAMSHAFT-COMP

$109.99

$

Usually ships in 2-5 days

0

92009

Cub Cadet KM-92009-2341

SCREW

$2.49

$

In Stock, Qty 20+

0

92015

Cub Cadet KM-92015-2253

NUT

$4.49

$

In Stock, Qty 20+

0

92033

Cub Cadet KM-92033-7001

RING-SNAP
(Superseded to KM-92033-0778)

$0.99

$

In Stock, Qty 9

0

92140

Cub Cadet KM-92140-7005

BALL
(Superseded to KM-92140-0026)

$2.49

$

Usually ships in 3-6 days

0

92145

Cub Cadet KM-92145-7001

SPRING
(Superseded to KM-92145-1653)

$1.49

$

In Stock, Qty 8

0

92151

Cub Cadet KM-92153-7019

BOLT

$2.49

$

Usually ships in 2-5 days

0

92153

Cub Cadet KM-92153-7019

BOLT

$2.49

$

Usually ships in 2-5 days

0

92200

Cub Cadet KM-92200-7001

WASHER

$1.99

$

In Stock, Qty 11

0
